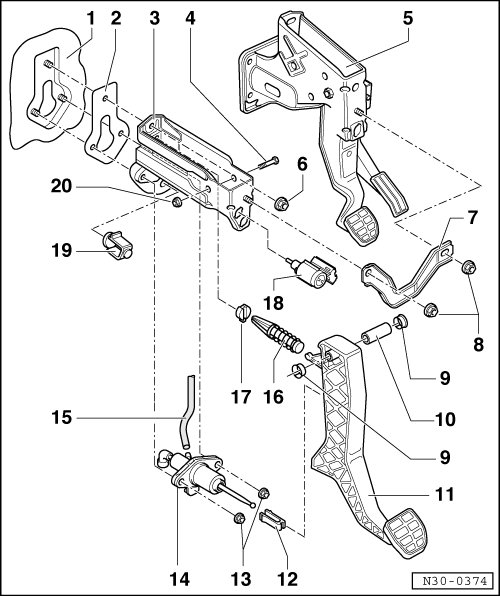

Pedal Assembly Overview

Pedal Assembly Overview





1 Bulkhead

• With mount for bracket and master cylinder

2 Gasket

• Always replace

3 Mounting bracket

• For mounting clutch pedal

4 Bolt

5 Mounting bracket

• For mounting accelerator pedal and brake pedal

6 Self-locking hex nut, 25 Nm

• For mounting bracket to bulkhead

• Always replace

7 Connecting plate

8 Self-locking hex nut, 25 Nm

• Always replace

9 Bearing bushing

10 Pivot pin

11 Clutch pedal

• Removing and installing => [ Clutch Pedal ] Clutch Pedal.

12 Retainer

• Removing and installing => [ (Item 4) Retainer ] Removal and Replacement

13 Self-locking hex nut, 25 Nm

• For master cylinder and mounting bracket to bulkhead

• Always replace

14 Clutch master cylinder

• Removing and installing => [ Master Cylinder ] Service and Repair.

15 Supply hose

16 Over-center spring

• Removing and installing => [ Over-Center Spring ] Over-Center Spring.

17 Over-center spring mounting

• Insert in mounting bracket

• To replace, remove and install master cylinder => [ Master Cylinder ] Service and Repair.

18 Clutch pedal switch (F36)

• Removing and installing, adjusting => [ Clutch Pedal Switch ] Service and Repair.

19 Stop bracket

• For clutch pedal

• Installed position => [ Installation Position ] Service and Repair.

20 Hex nut, 25 Nm

• Always replace
