Diagnostic Mode 09 - Read Vehicle Information
Diagnostic Modes 01 - 09
The information provided in Modes 01 through 09 displays the various levels of emission related data that may be monitored, as well as the ability to retrieve and read stored DTC trouble codes, erase stored DTC trouble codes, generate readiness codes, and select the various PIDs and Test-IDs used within the modes to monitor the engine, and emission related component parameters.
• Depending on scan tool and protocol used, the information in diagnostic mode 01 may be referred to by different names such as Test-ID (TID), Hex-ID, Component-ID (CID), or On-Board Diagnostic Monitor Identifier (OBDMID).
Diagnostic Mode 09 - Read Vehicle Information
Diagnostic Mode 09 makes it possible to access vehicle-specific information from the ECM and the TCM (where applicable).
• Depending on scan tool and protocol used, Diagnostic Mode 09 and the information provided may be referred to by a different name.
Test requirement
• No DTCs stored in the DTC memory.
Procedure
- Connect the scan tool.
- Switch the ignition on.
- Select Mode 09: Vehicle information.
- Select the desired Test-ID.
- The information requested will be displayed on the scan tool screen.

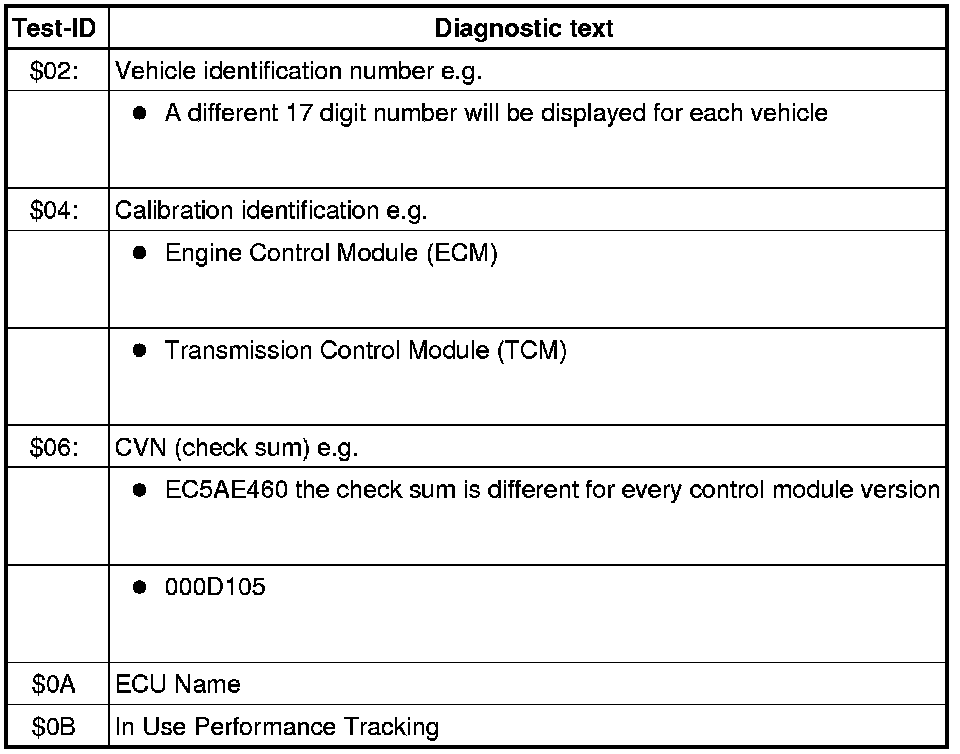

The following table is a numerical list of all Test-IDs that may be selected.
- Switch the ignition Off.
Diagnostic Mode 0A - Permanent Fault Codes
This vehicle is equipped with Mode 0A.
Diagnostic Mode 0A - Check Permanent DTC Memory (Request emissions-related diagnostic trouble codes with permanent status after code clear) Permanent Fault Codes from MY 2010 with phase in to 50% of MY 2010 and 75% from MY 2011 with 100% compliance for MY 2012. Mode 0A is supported by OBD control modules in US vehicle market specifically. Mode 0A enables the request of all OBD-relevant faults with the status "Permanent Fault Code". Permanent Fault Codes are Confirmed Fault Codes that are currently activating the MIL. That means faults that are still displayed in Mode 03 but no longer activate the MIL (History Fault Codes) are not Permanent Fault Codes. Permanent Fault Codes are updated in Mode 0A immediately after switching the ignition off. A newly detected Permanent Fault Code is only visible after switching the ignition off/on in Mode 0A. Permanent Fault Codes may only be erased in the control module after they are corrected as long as the last diagnostic result was a PASS and the MIL is no longer activated by this fault. The Permanent Fault Codes should be erased from Mode 0A at the same time the MIL switches off when the ignition is switched off/on. Permanent Fault Codes may not be erased by clearing the DTC memory or disconnecting the power supply. Permanent Fault Codes may only be erased after clearing the DTC memory under the following conditions: as long as no FAIL diagnostic result was detected for a Permanent Fault Code and at least one PASS diagnostic result was detected, and the Minimum Trip Conditions were met in any drive cycle after erasing the DTC memory. The engine control module relays the message "Minimum Trip conditions met" to all other OBD control modules via CAN. Permanent Fault Codes may NOT be erased if the diagnostic result is FAIL after clearing the DTC memory. A Pending Fault Code should be stored and the DTC memory will be overwritten with new Freeze Frame data (Exception: If the Pending Fault Code is corrected without a Confirmed Fault Code being detected, the Permanent Fault Code may also be erased under the conditions described below.) - Permanent Fault Codes should be erased in engine control modules after Update Programming. The procedure in Mode 01 through Mode 09 in the scan tool is not affected by implementation of the Permanent Fault Codes.
