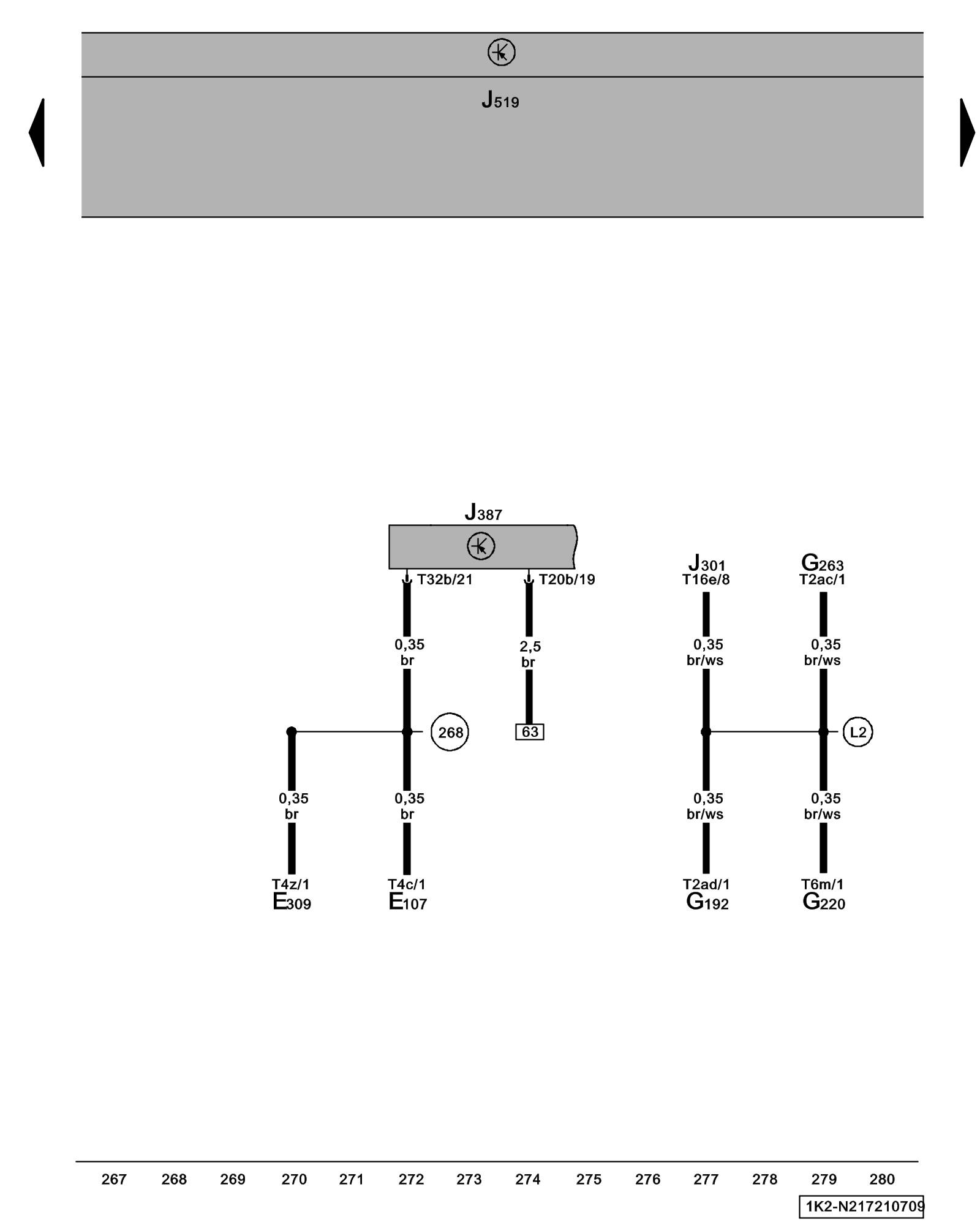

Diagram 217/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front Passenger's Door Window Regulator Switch

E309 - Front Passenger's Interior Locking Button

G192 - Footwell Outlet Temperature Sensor Climatic (Manual Climate Control) Heating and A/C System Components Overview

G220 - Left Temperature Flap Potentiometer/Actuator Climatronic (Automatic Climate Control) Heating and A/C Components Overview

G263 - Evaporator Vent Temperature Sensor Climatic (Manual Climate Control) Heating and A/C System Components Overview

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J387 - Front Passenger's Door Control Module Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

T2ac - Double Connector

T2ad - Double Connector

T4c - 4-Pin Connector

T4z - 4-Pin Connector

T6m - 6-Pin Connector

T16e - 16-Pin Connector

T20b - 20-Pin Connector

T32b - 32-Pin Connector

(268) - Ground Connection 2 (in front passenger's door wiring harness)


- Component Location: Between front passenger's door wiring harness and J387 - Front Passenger's Door Control Module

(L2) - Connection (in A/C wiring harness)


- Component Location: Between A/C wiring harness and J301 - A/C Control Module

Previous Diagram 217/20 (Tracks 253-266)

Next Diagram 217/22 (Tracks 281-294)
