Fuses (SC) On Fuse Panel C (electronics Box High) , from July 2009
Fuses (SC) On Fuse Panel C (electronics Box High) , from July 2009
Fuses in interior

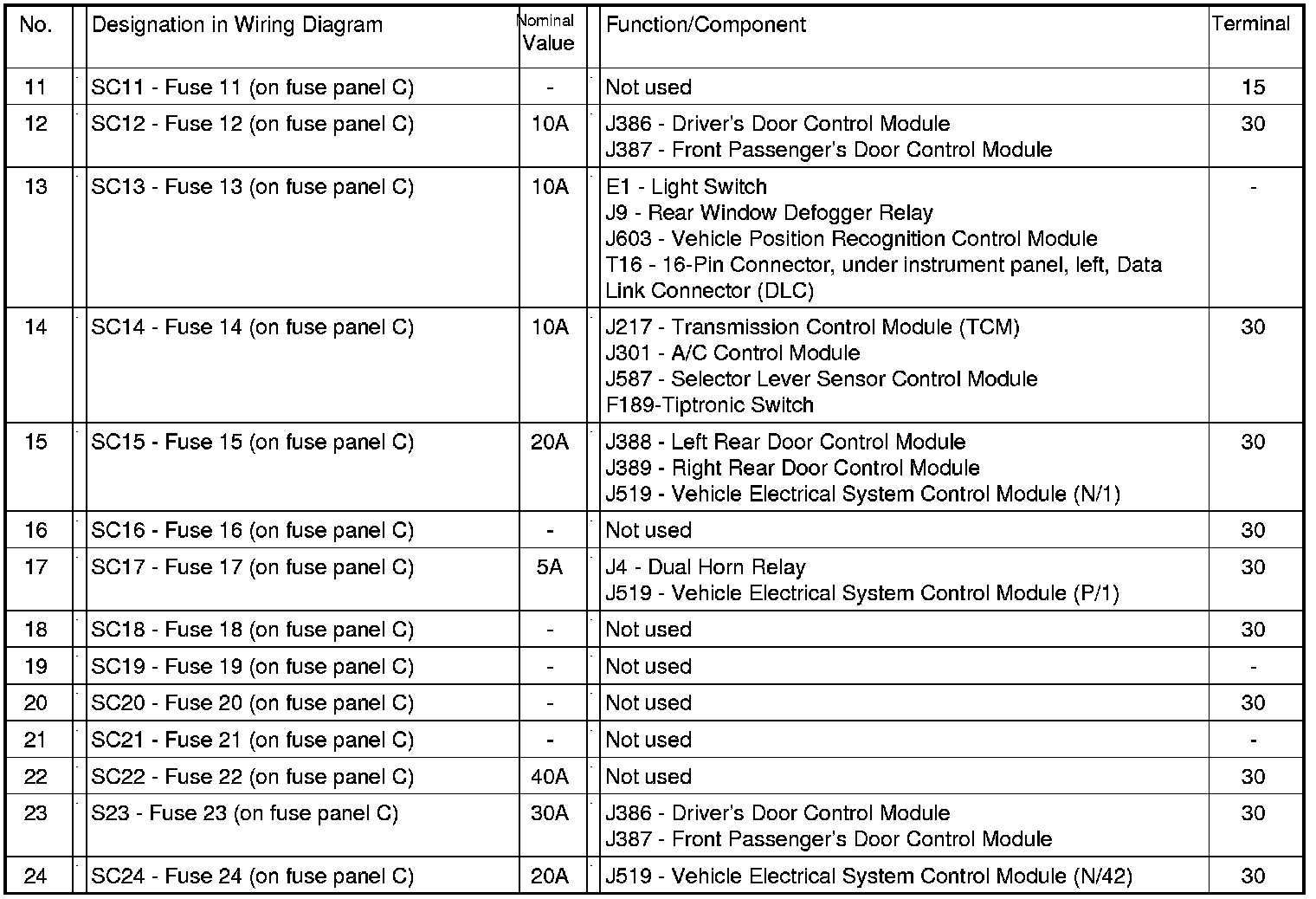

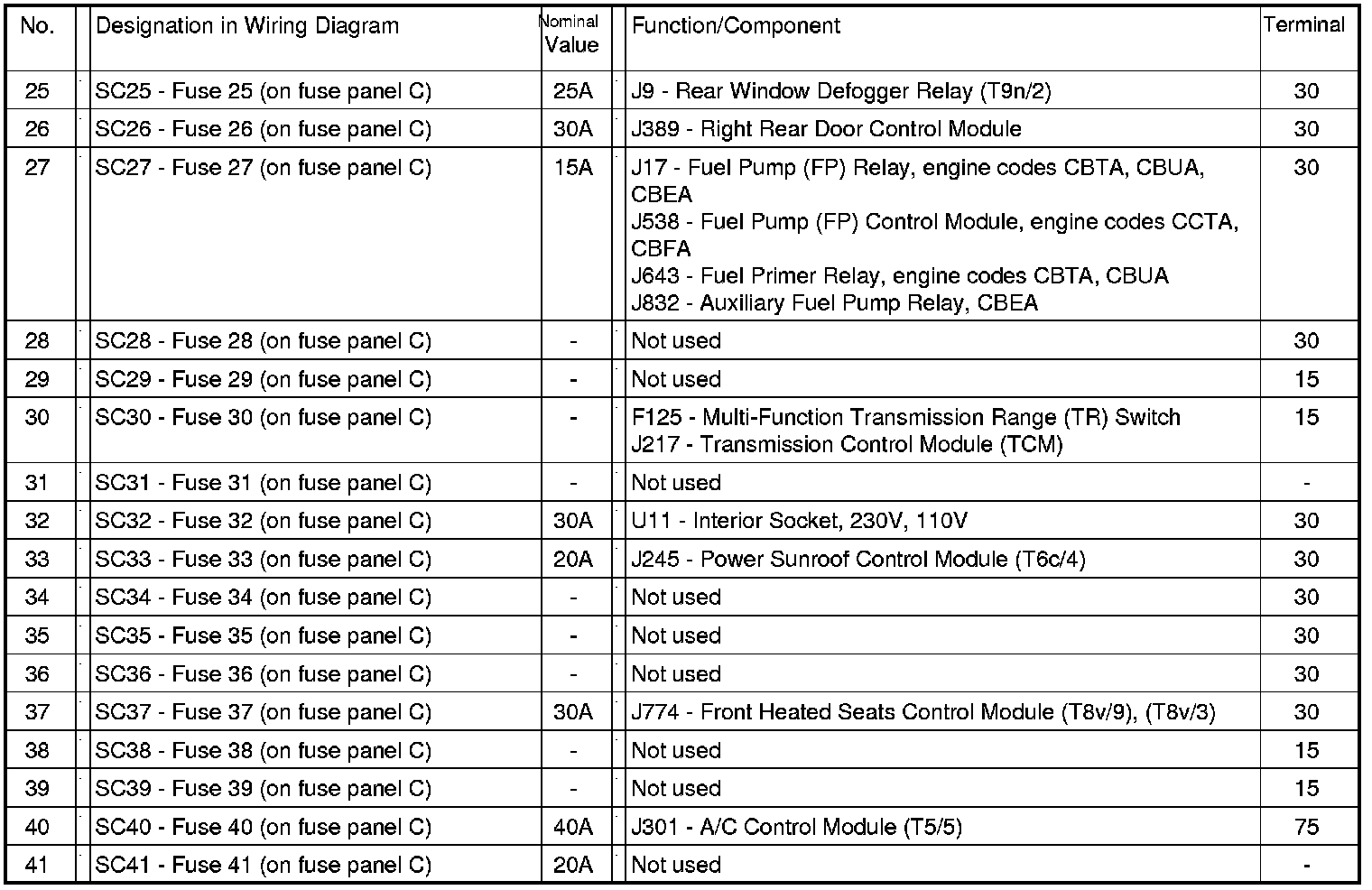

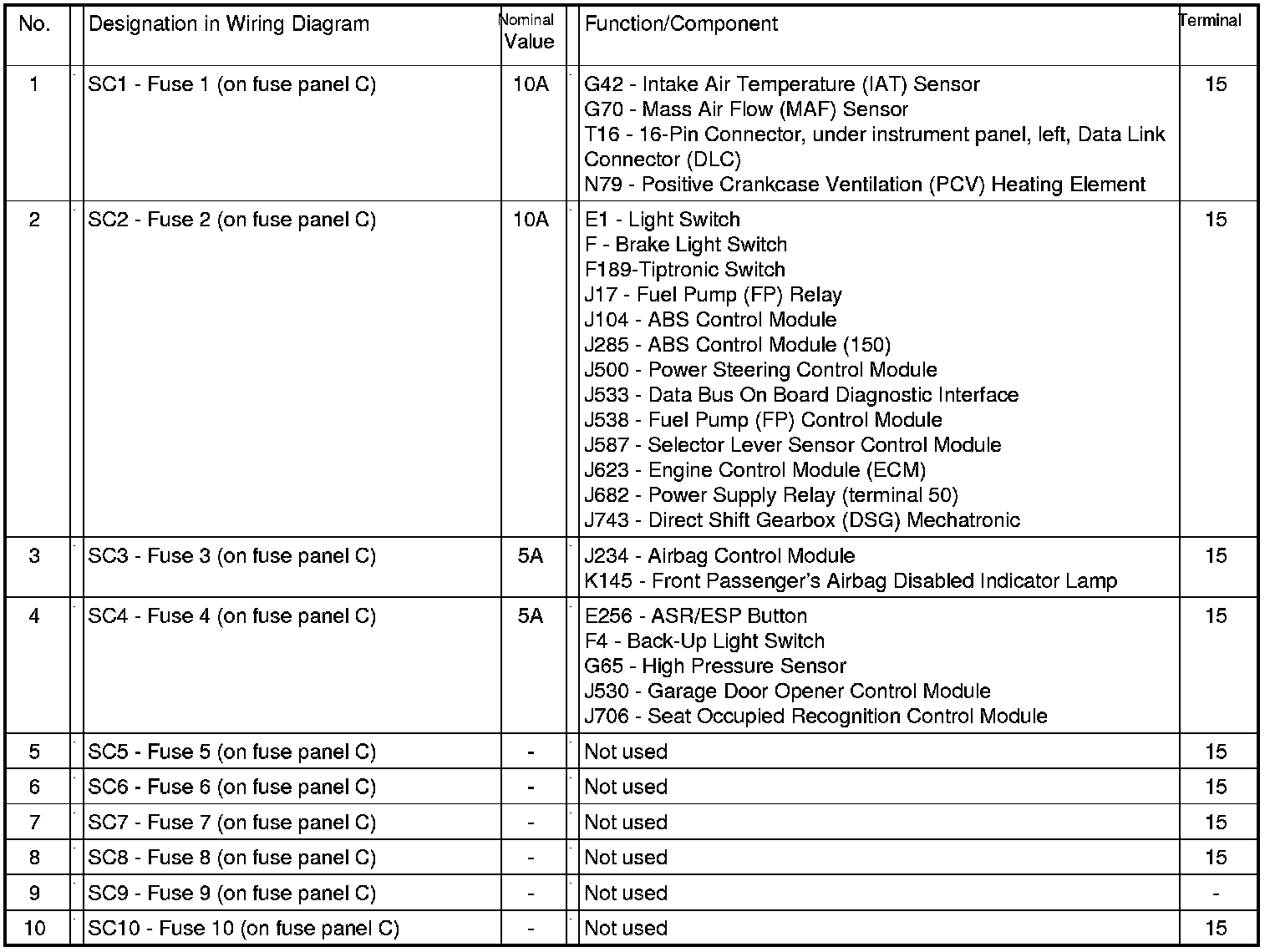

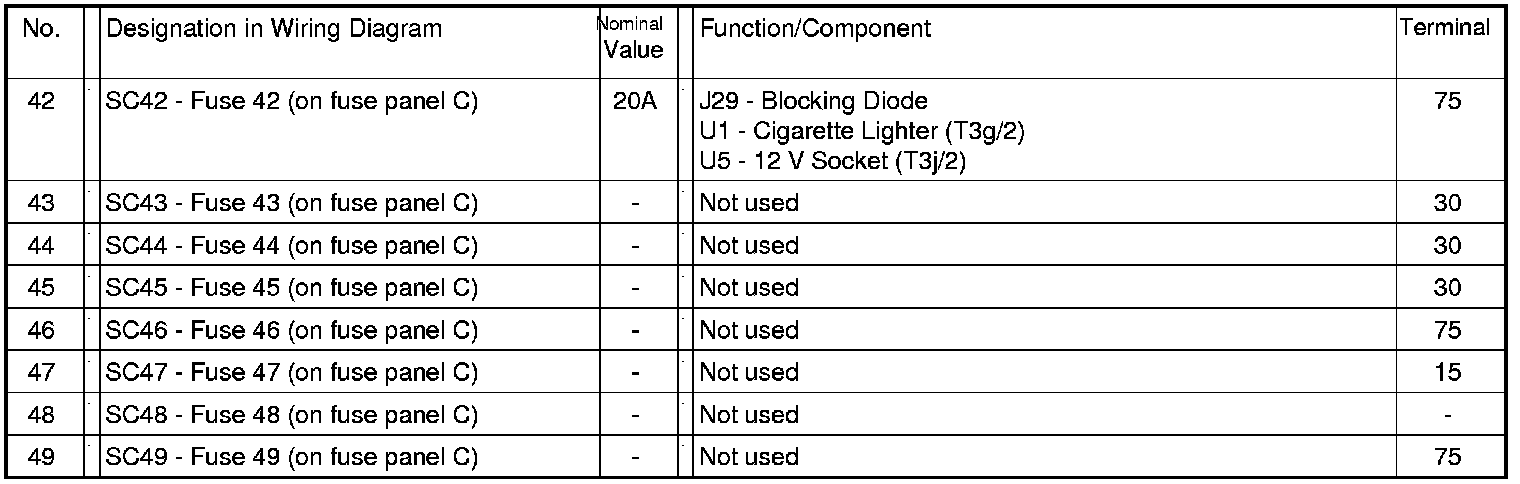

Fuses (SC) on fuse panel C (electronics box High), from July 2009
