Home
>>
Volkswagen
>>
2010
>>
Jetta GLI (1K2) L4-2.0L Turbo (CCTA)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

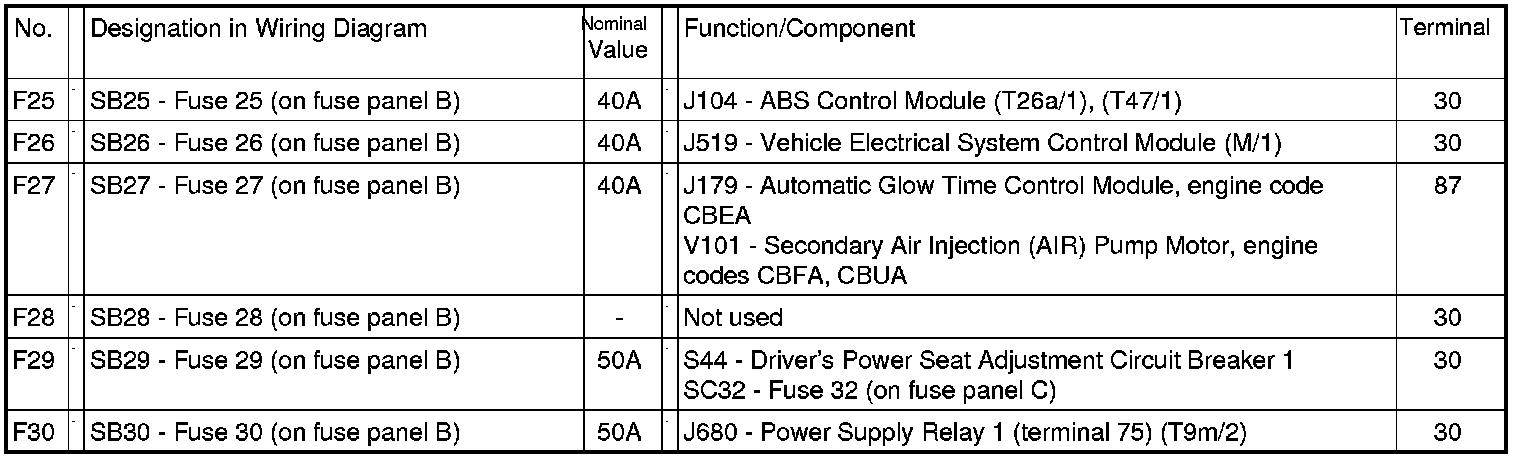

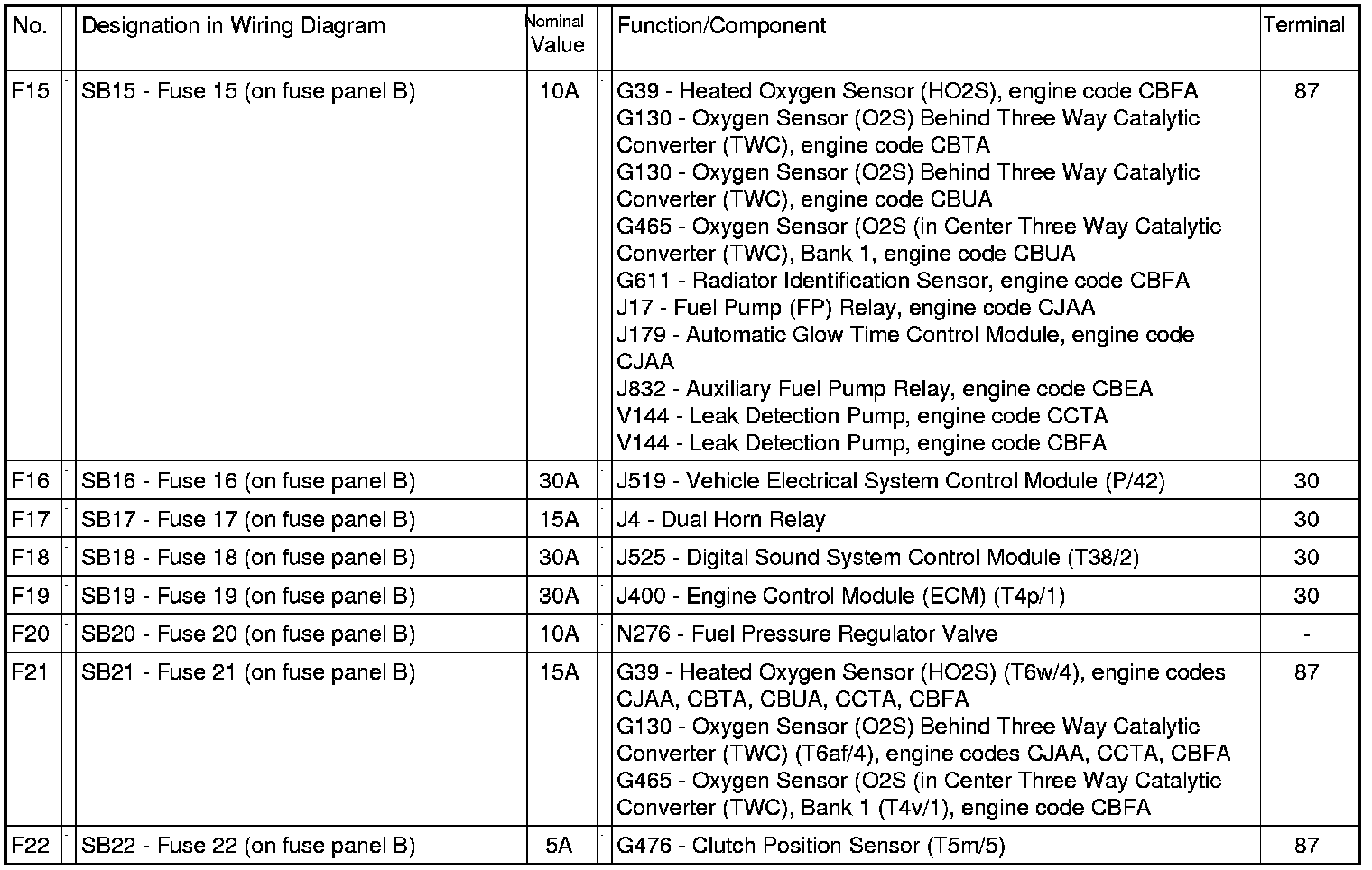

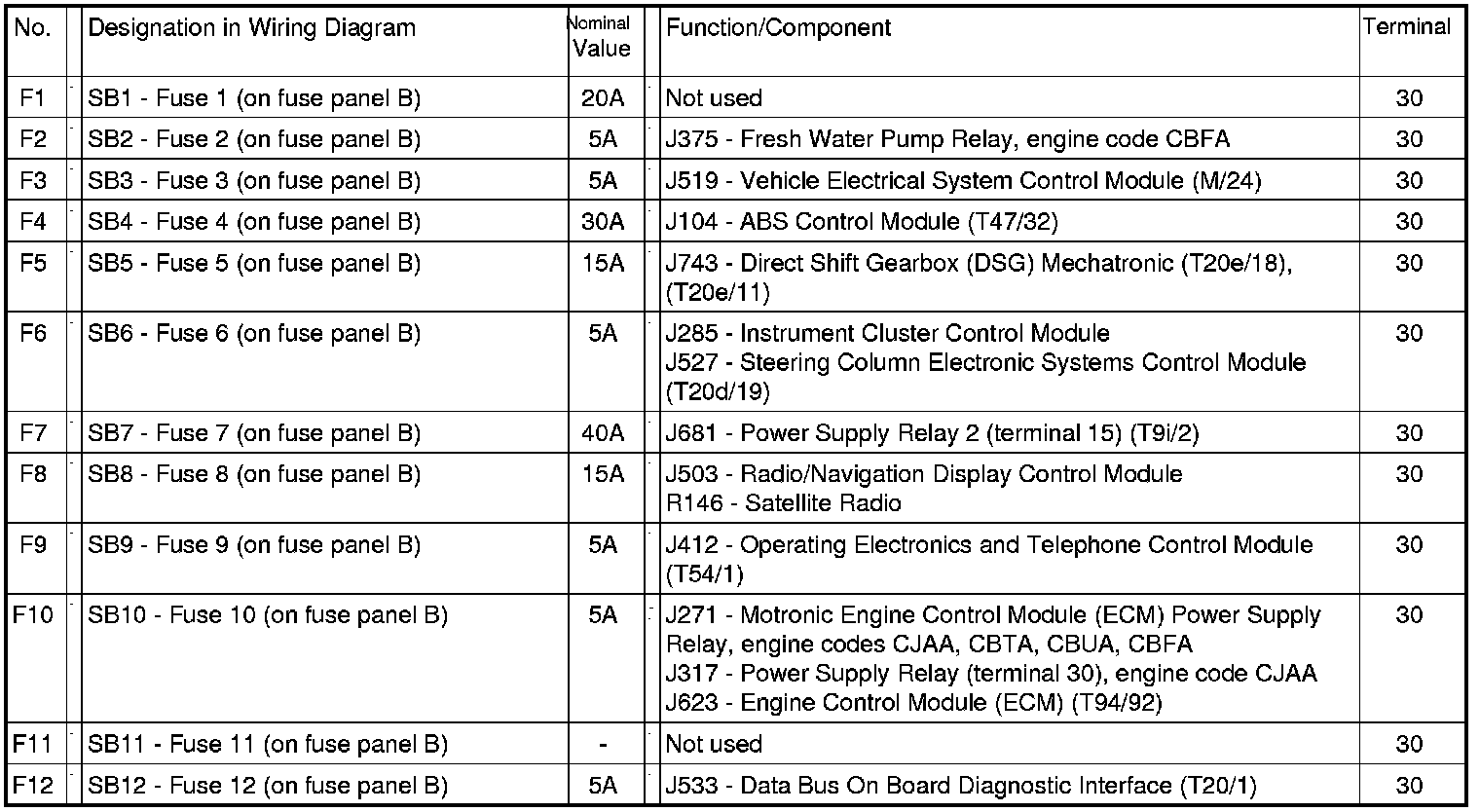

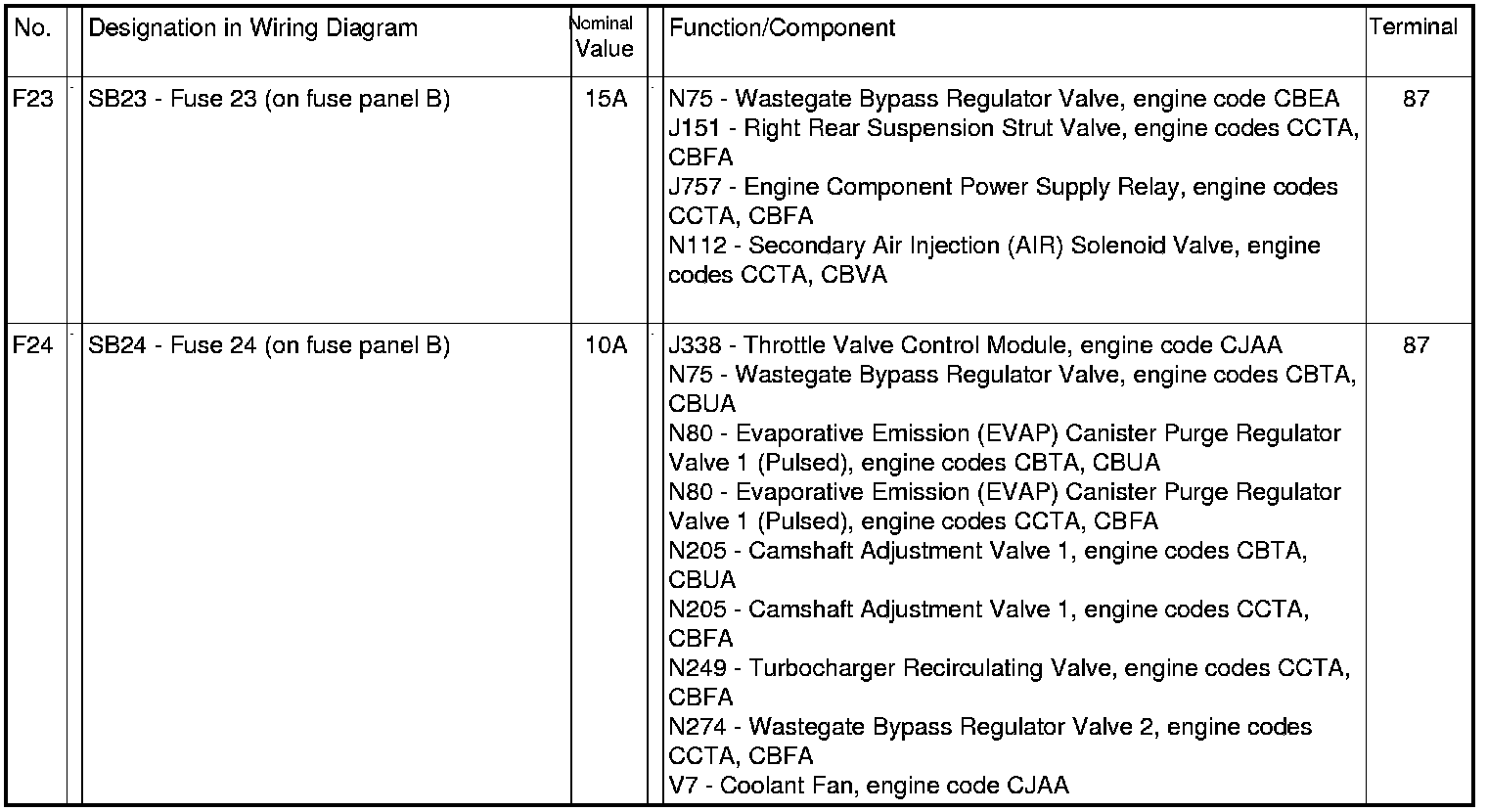

Fuses (SB) On Electronics Box Low, from July 2009
Fuses (SB) On Electronics Box Low, from July 2009
Fuses in engine compartment
Fuses (SB) on electronics box Low, from July 2009
