FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2010
>>
Jetta GLI (1K2) L4-2.0L Turbo (CCTA)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

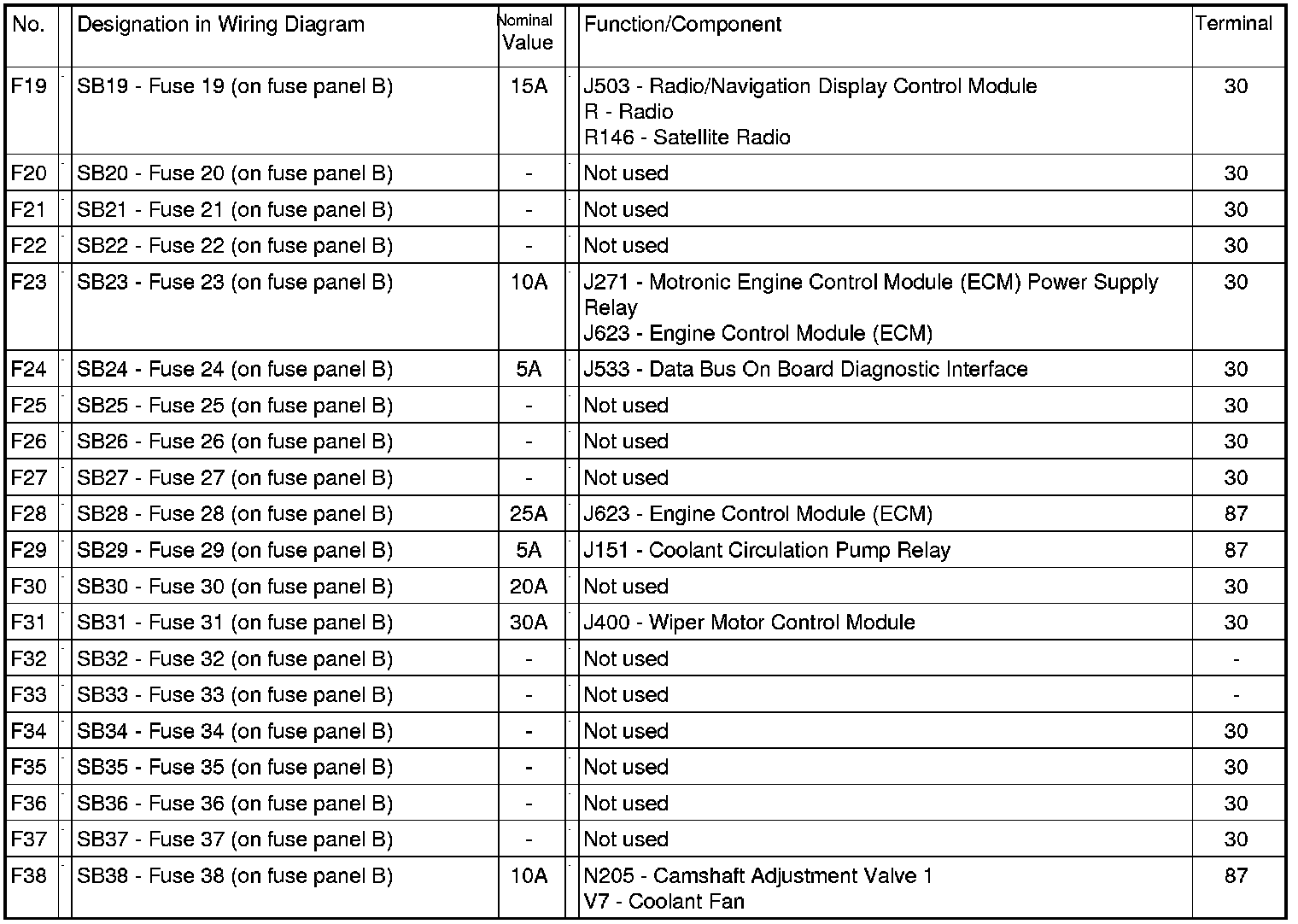

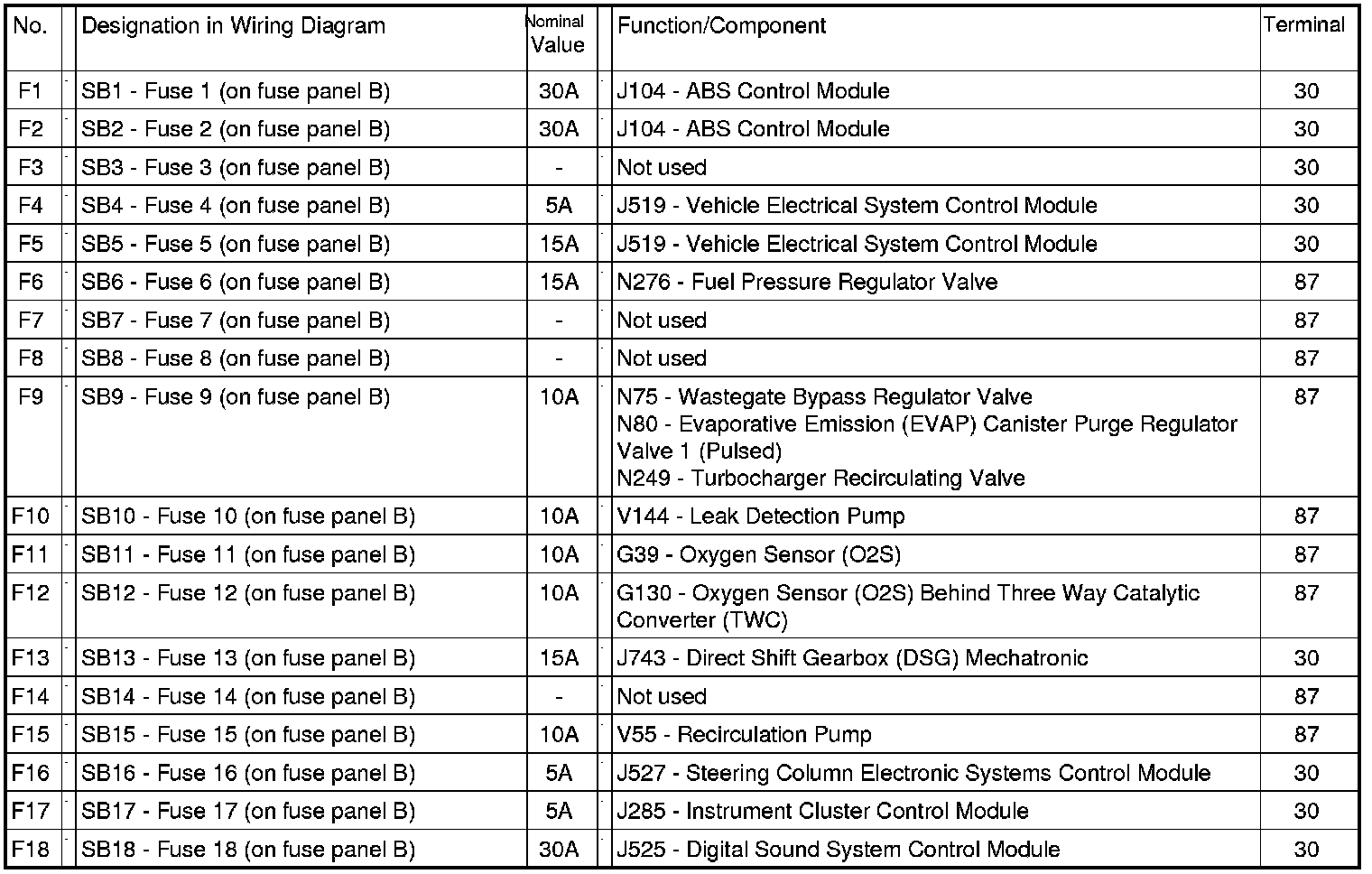

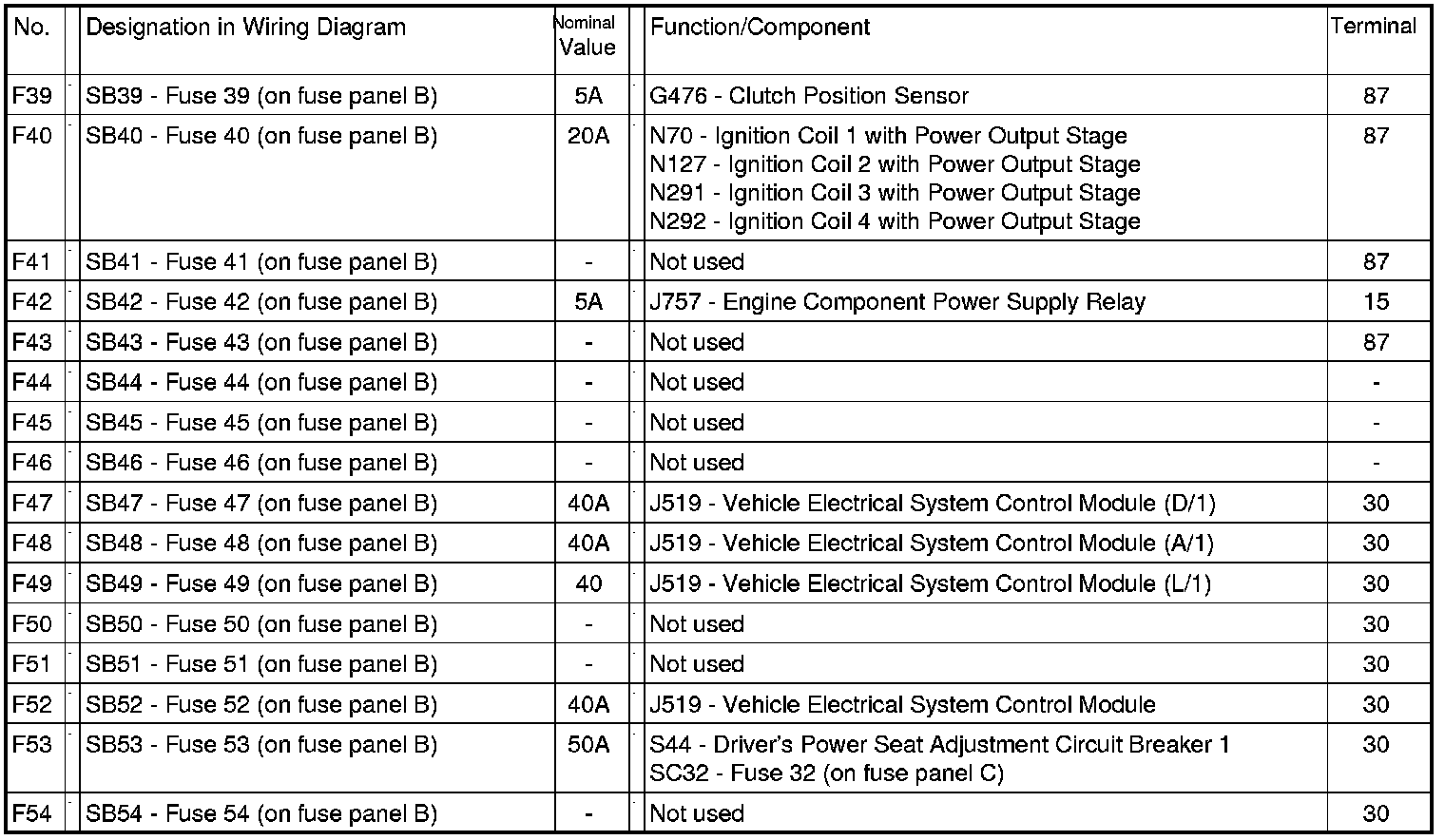

Fuses (SB) On Electronics Box High, from July 2007
Fuses (SB) On Electronics Box High, from July 2007
Fuses in engine compartment
Fuses (SB) on electronics box High, from July 2007
