Home >> Volkswagen >> 2010 >> Jetta GLI (1K2) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> Compressor HVAC

Compressor HVAC

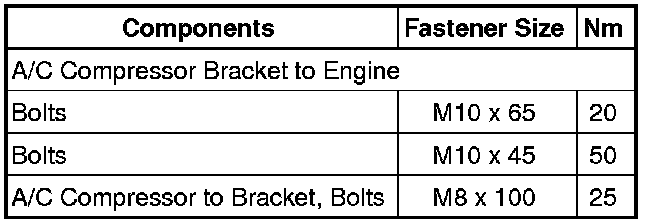

A/C Compressor Tightening Specifications

Engine Codes BRM and CBEA:





Engine Codes BGP, BGQ, BTK, CBTA, CBUA and CCCA:





Engine Codes BPY, BWA, CCTA and CBFA:
