Parking Assist Control Module: Locations

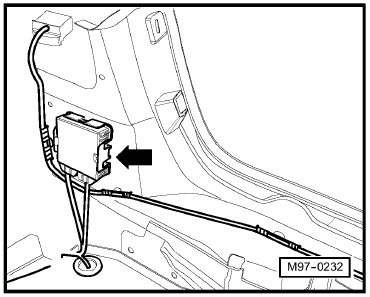

Control module in luggage compartment

Parking Aid Control Module -J446-




Component Location:







Behind the right luggage compartment side trim => -Arrow-







Assignment of connectors:







A - Parking Aid Control Module -J446-
Connector:

B - Pin Connector -T12-

C - Pin Connector -T12a-

D - Pin Connector -T16-
