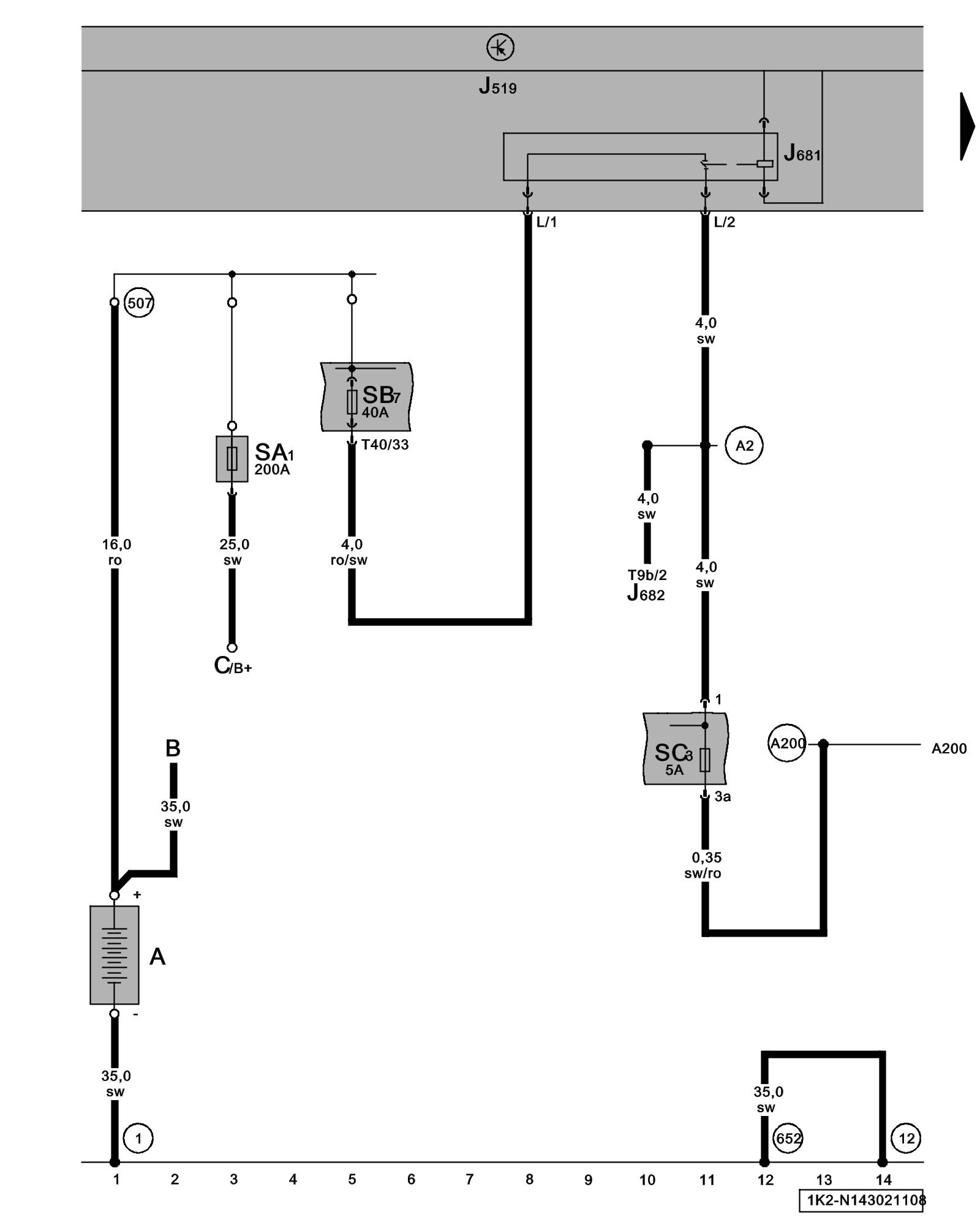

Diagram 143/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Starter, Generator (GEN), Vehicle Electrical System Control Module, Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J519 - Vehicle Electrical System Control Module Locations Locations

J681 - Power Supply Relay 2 (terminal 15)

J682 - Power Supply Relay (terminal 50) Locations

SA1 - Fuse 1 (on fuse panel A)

SB7 - Fuse 7 (on fuse panel B)

SC3 - Fuse 3 (on fuse panel C) Locations

T9b - 9-Pin Connector

T40 - 40-Pin Connector

(1) - Ground strap, battery to body

(12) - Ground Connection (in engine compartment, left)

(507) - Threaded Connection - terminal 30 (on battery fuse holder)

(652) - Transmission/Engine Ground Connection

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A200) - Plus Connection 5 (15a)(in instrument panel wiring harness)
