Diagram 6/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


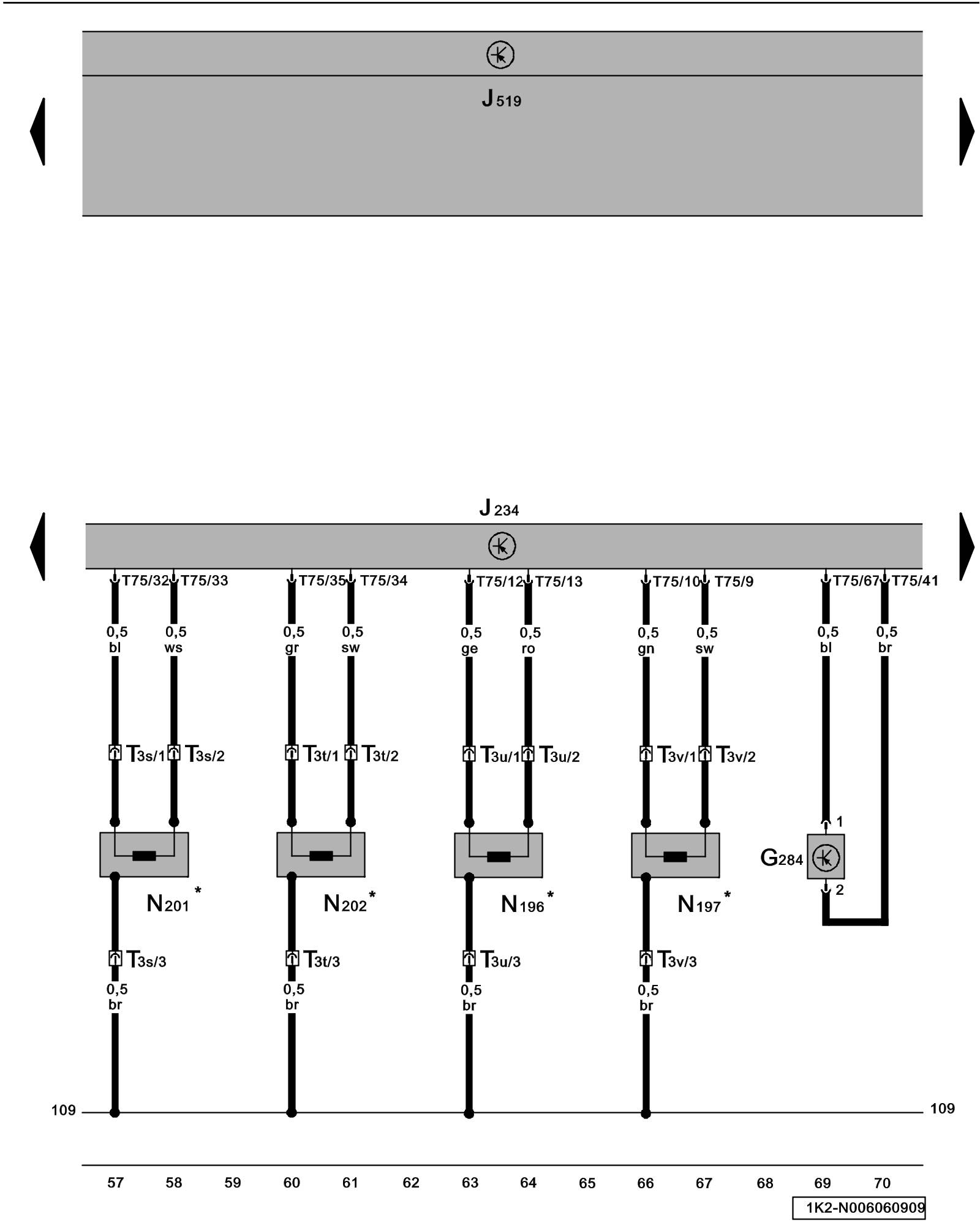

Front Passenger's Front Airbag Crash Sensor, Airbag Control Module, Vehicle Electrical System Control Module, Rear Safety Belt Tensioner Igniters, Rear Side Airbag Igniters





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G284 - Front Passenger's Front Airbag Crash Sensor

J234 - Airbag Control Module Locations Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N196 - Rear Safety Belt (driver's side) Tensioner Igniter Locations

N197 - Rear Safety Belt (front passenger's side) Tensioner Igniter Locations

N201 - Rear Passenger's Side Airbag (driver's side) Igniter Airbag Component Locations

N202 - Rear Passenger's Side Airbag (front passenger's side) Igniter Airbag Component Locations

T3s - 3- Pin Connection

T3t - 3- Pin Connection

T3u - 3- Pin Connection

T3v - 3- Pin Connection

T75 - 75-Pin Connection, at J234

* - Only vehicles with front and rear side airbags, head airbags and safety belt tensioners

Previous Diagram 6/5 (Tracks 43-56)

Next Diagram 6/7 (Tracks 71-84)
