Diagram 74/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

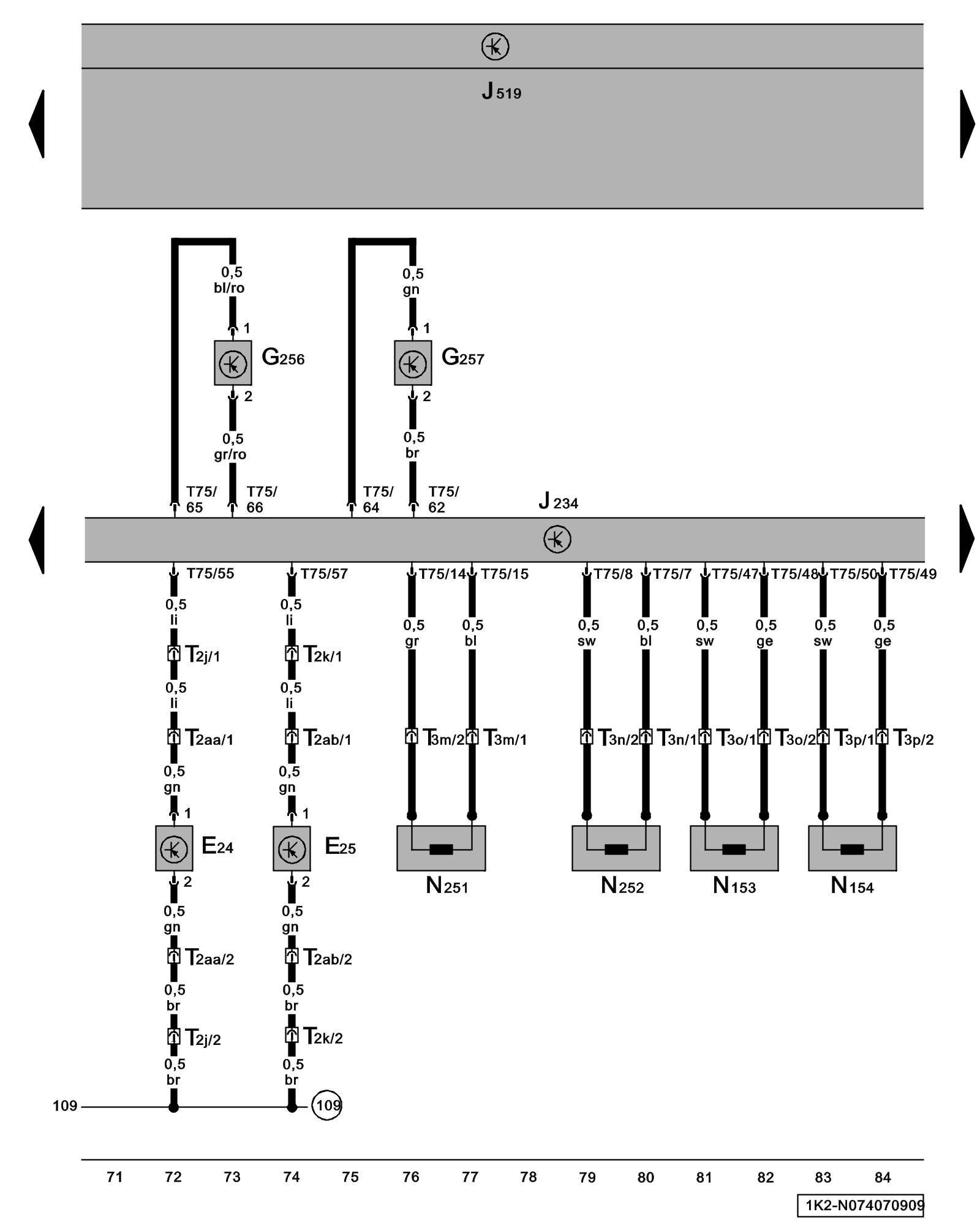

Driver Safety Belt Switch, Front Passenger Safety Belt Switch, Rear Side Airbag Crash Sensor (on Driver side), Rear Side Airbag Crash Sensor (on front Passenger side), Airbag Control Module, Driver Safety Belt Tensioner Igniter 1, Front Passenger Safety Belt Tensioner Igniter 1, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E24 - Driver Safety Belt Switch

E25 - Front Passenger Safety Belt Switch

G256 - Rear Side Airbag Crash Sensor (on Driver side) Locations

G257 - Rear Side Airbag Crash Sensor (on front Passenger side) Locations

J234 - Airbag Control Module Locations Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N153 - Driver Safety Belt Tensioner Igniter 1 Locations

N154 - Front Passenger Safety Belt Tensioner Igniter 1 Locations

N251 - Driver Head Curtain Airbag Igniter Airbag Component Locations

N252 - Front Passenger Head Curtain Airbag Igniter Airbag Component Locations

T2j - Double Connector

T2k - Double Connector, yellow, in front footwell, right

T2aa - Double Connector, yellow, below driver's seat

T2ab - Double Connector, yellow, below front passenger's seat

T3m - 3- Pin Connector

T3n - 3- Pin Connector

T3o - 3- Pin Connector

T3p - 3- Pin Connector

T75 - 75-Pin Connector, at J234

(109) - Ground Connection (in airbag wiring harness)

Previous Diagram 74/6 (Tracks 57-70)

Next Diagram 74/8 (Tracks 85-98)
