Diagram 188/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

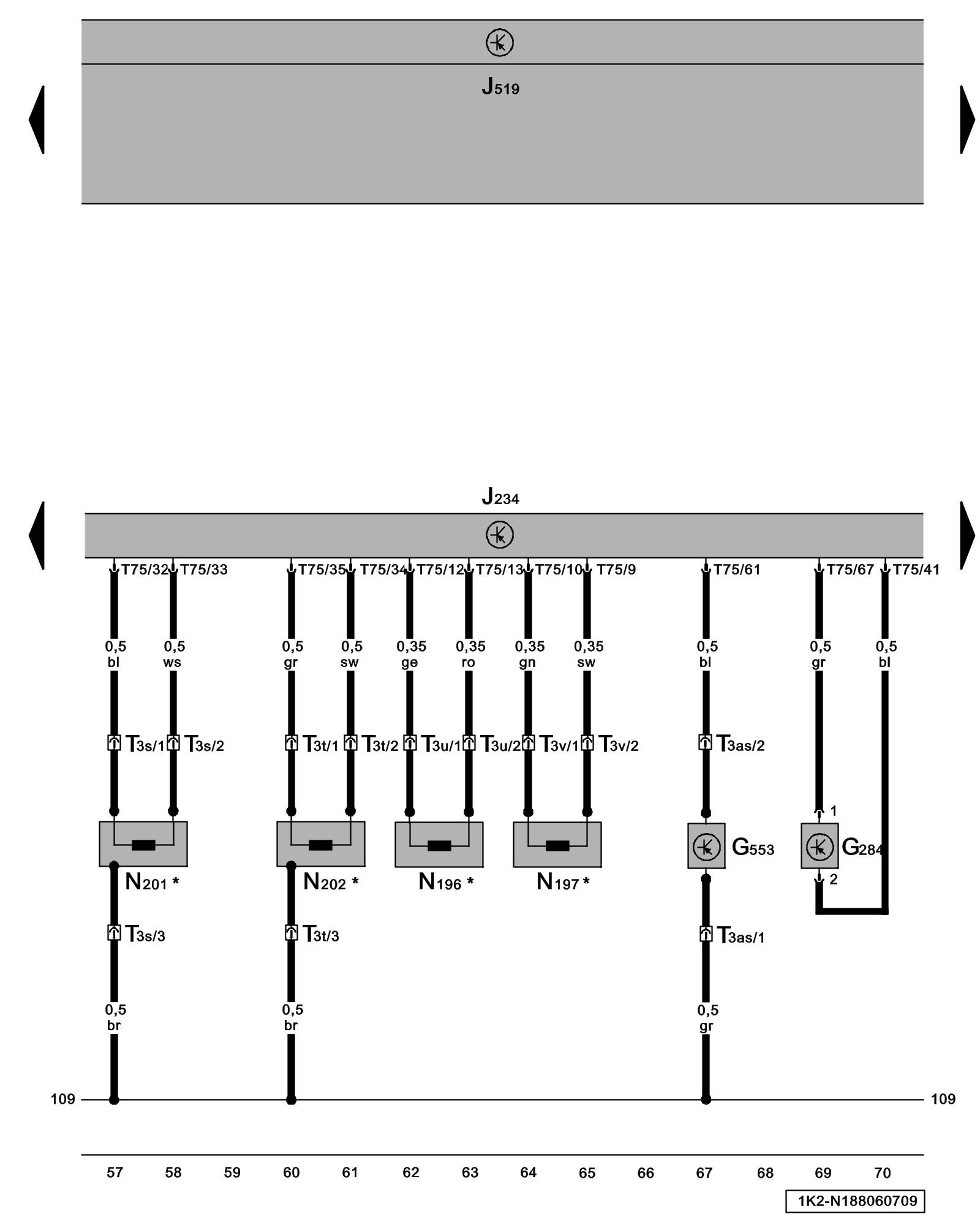

Front Passenger's Front Airbag Crash Sensor, Driver Seat Position Sensor, Airbag Control Module, Rear Safety Belt (driver's side) Tensioner Igniter, Rear Safety Belt (front passenger's side) Tensioner Igniter, Rear Side Airbag (front driver's side) Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G284 - Front Passenger's Front Airbag Crash Sensor

G553 - Driver Seat Position Sensor

J234 - Airbag Control Module Locations Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N196 - Rear Safety Belt (driver's side) Tensioner Igniter Locations

N197 - Rear Safety Belt (front passenger's side) Tensioner Igniter Locations

N201 - Rear Side Airbag (front driver's side) Igniter Airbag Component Locations

N202 - Rear Passenger's Side Airbag (front passenger's side) Igniter Airbag Component Locations

T3s - 3-Pin Connector

T3t - 3-Pin Connector

T3u - 3-Pin Connector

T3v - 3-Pin Connector

T3as - 3-Pin Connector

T75 - 75-Pin Connector

* - Only models with front and rear airbag, head curtain airbag and safety belt tensioner

Previous Diagram 188/5 (Tracks 43-56)

Next Diagram 188/7 (Tracks 71-84)
