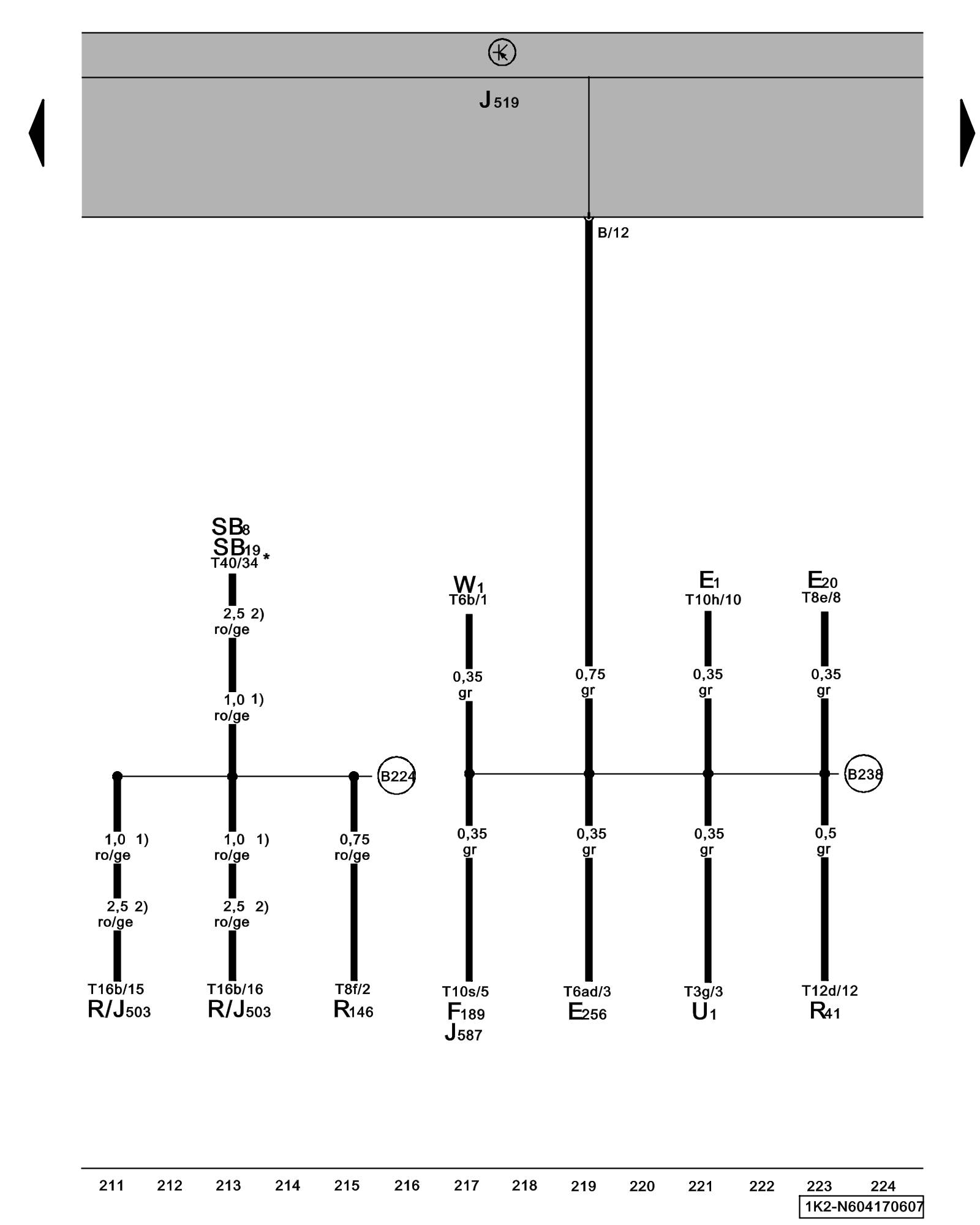

Diagram 604/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E20 - Instrument Panel Illumination Dimmer Switch

E256 - ASR/ESP Button

F189 - Tiptronic Switch Locations

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Locations

J587 - Selector Lever Sensor System Control Module

R - Radio

R41 - CD Changer Radio Navigation System Component Locations

R146 - Satellite Radio Antenna Systems Overview

SB8 - Fuse 8 (on fuse panel B)

SB19 - Fuse 19 (on fuse panel B)

T3g - 3-Pin Connector

T6b - 6-Pin Connector

T6ad - 6-Pin Connector

T8e - 8-Pin Connector

T8f - 8-Pin Connector

T10h - 10-Pin Connector

T10s - 10-Pin Connector

T12d - 12-Pin Connector

T16b - 16-Pin Connector

T40 - 40-Pin Connector

U1 - Cigarette Lighter

W1 - Front Interior Light Telematics System Overview

(B224) - Radio Connection 1 (in interior wiring harness)


- Location: In wiring circuit between main wiring harness and R - Radio

(B238) - Plus Connection 2 (58b) (in interior wiring harness)


- Location: In wiring circuit between main wiring harness and 45 - Ground Connection (behind instrument panel, center) 1)


- Note: from MY 2008 referenced page 43

(*) - Engine code BPY only

1) - Through June 2007

2) - From July 2007
