Diagram 18/4 (Tracks 29-42)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

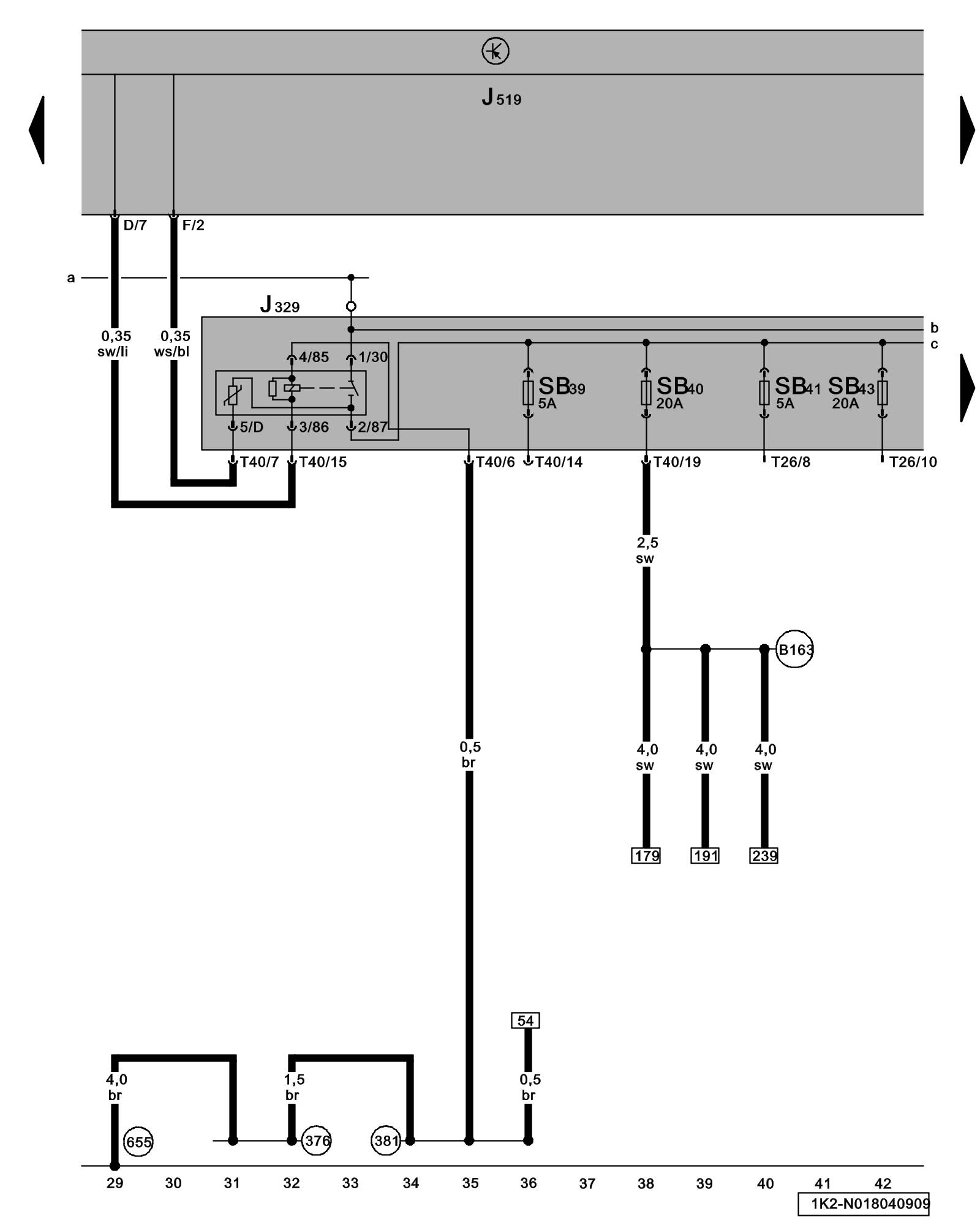

Power Supply Relay (terminal 15), Vehicle Electrical System Control Module, Fuses SB39, SB40, SB41, SB43





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Power Supply Relay (terminal 15) Locations

J519 - Vehicle Electrical System Control Module Locations Locations

SB39 - Fuse 39 (on fuse panel)

SB40 - Fuse 40 (on fuse panel)

SB41 - Fuse 41 (on fuse panel)

SB43 - Fuse 43 (on fuse panel)

T26 - 26-Pin Connector

T40 - 40-Pin Connector

(376) - Ground Connection 11 (in main wiring harness)

(381) - Ground Connection 16 (in main wiring harness)

(655) - Ground Connection (on left headlight)

(B163) - Plus Connection 1 (15) in wiring harness interior

Previous Diagram 18/3 (Tracks 15-28)

Next Diagram 18/5 (Tracks 43-56)
