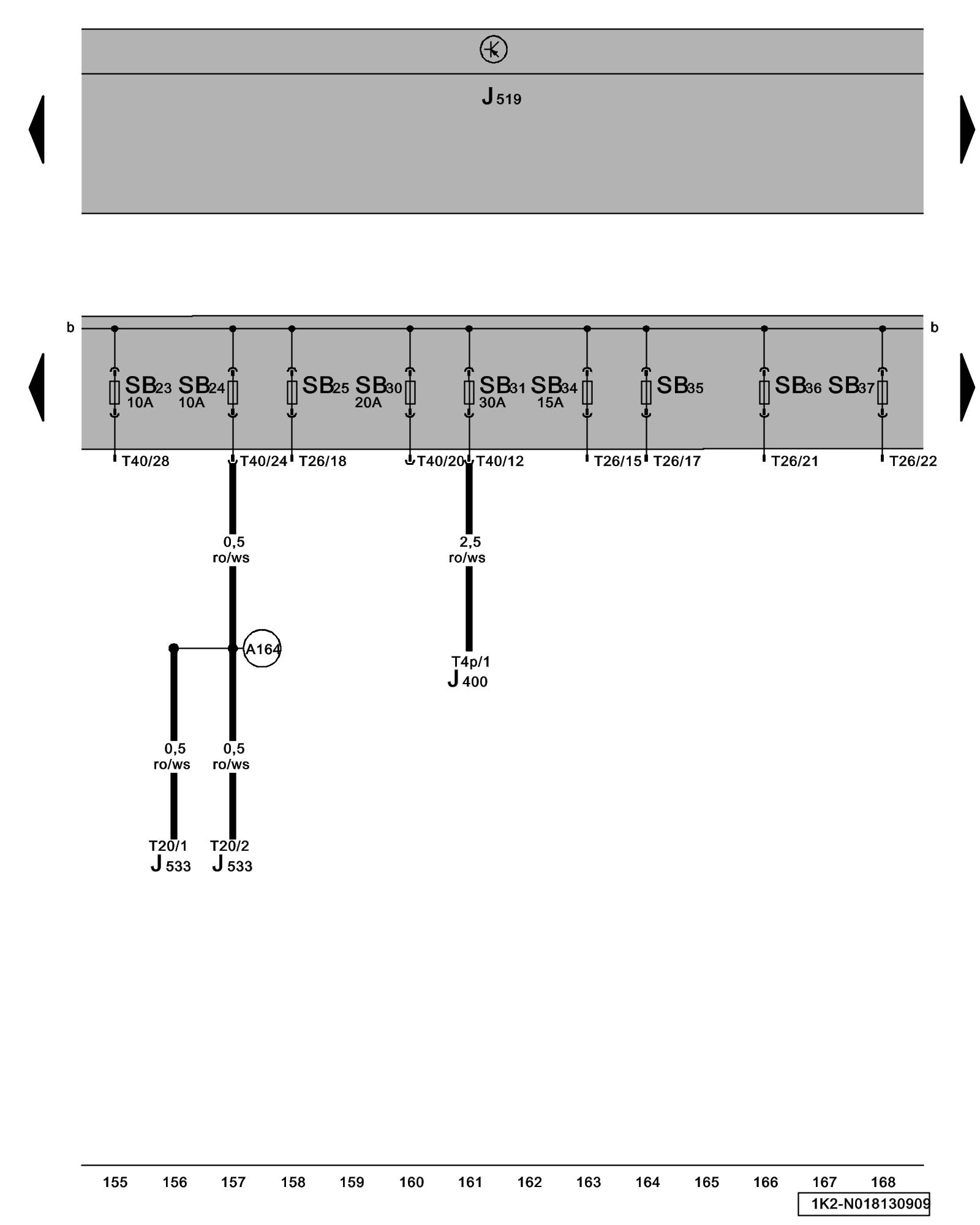

Diagram 18/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SB23, SB24, SB25, SB30, SB31, SB34, SB35, SB36, SB37





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J400 - Wiper Motor Control Module

J519 - Vehicle Electrical System Control Module Locations Locations

J533 - Data Bus On Board Diagnostic Interface Locations Locations

SB23 - Fuse 23 (on fuse panel)

SB24 - Fuse 24 (on fuse panel)

SB25 - Fuse 25 (on fuse panel)

SB30 - Fuse 30 (on fuse panel)

SB31 - Fuse 31 (on fuse panel)

SB34 - Fuse 34 (on fuse panel)

SB35 - Fuse 35 (on fuse panel)

SB36 - Fuse 36 (on fuse panel)

SB37 - Fuse 37 (on fuse panel)

T4p - 4-Pin Connector

T20 - 20-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

(A164) - Plus Connection 2 (30a) (in instrument panel wiring harness)

Previous Diagram 18/12 (Tracks 141-154)

Next Diagram 18/14 (Tracks 169-182)
