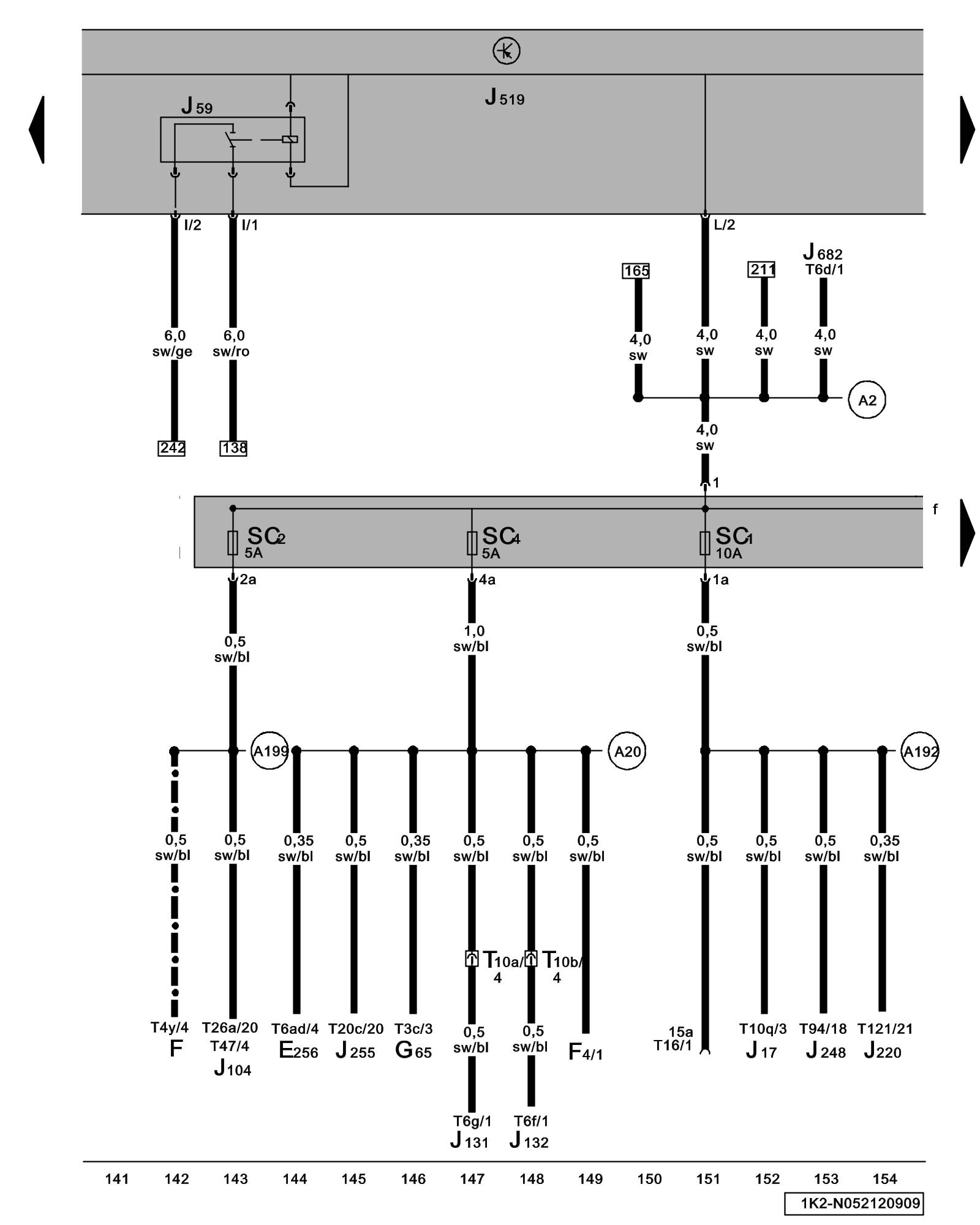

Diagram 52/12 (Tracks 141-154)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Load Reduction Relay, Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP Button

F4 - Back-Up Light Switch Direct Shift Gearbox 02E (DSG)

G65 - High Pressure Sensor Locations

J17 - Fuel Pump (FP) Relay Locations

J59 - Load Reduction Relay Locations

J104 - ABS Control Module Locations

J131 - Driver's Heated Seat Control Module Locations Heated Driver Seat Control Module -J131-

J132 - Front Passenger's Heated Seat Control Module Heated Front Passenger Seat Control Module -J132-

J220 - Motronic Engine Control Module

J248 - Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM)

J255 - Climatronic Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J519 - Vehicle Electrical System Control Module Locations Locations

J682 - Power Supply Relay (terminal 50) Locations

SC1 - Fuse 1 (on fuse panel C) Locations

SC2 - Fuse 2 (on fuse panel C) Locations

SC4 - Fuse 4 (on fuse panel C) Locations

T3c - 3-Pin Connector

T4y - 4-Pin Connector

T6d - 6-Pin Connector

T6f - 6-Pin Connector

T6g - 6-Pin Connector

T6ad - 6-Pin Connector

T10a - 10-Pin Connector

T10b - 10-Pin Connector

T10q - 10-Pin Connector

T16 - 16- Pin Connector, Data Link Connector (DLC), below steering column, left

T20c - 20-Pin Connector

T26a - 26-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

T121 - 121-Pin Connector

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A20) - Plus Connection (15a) (in instrument panel wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)

_._ - from December 2005
