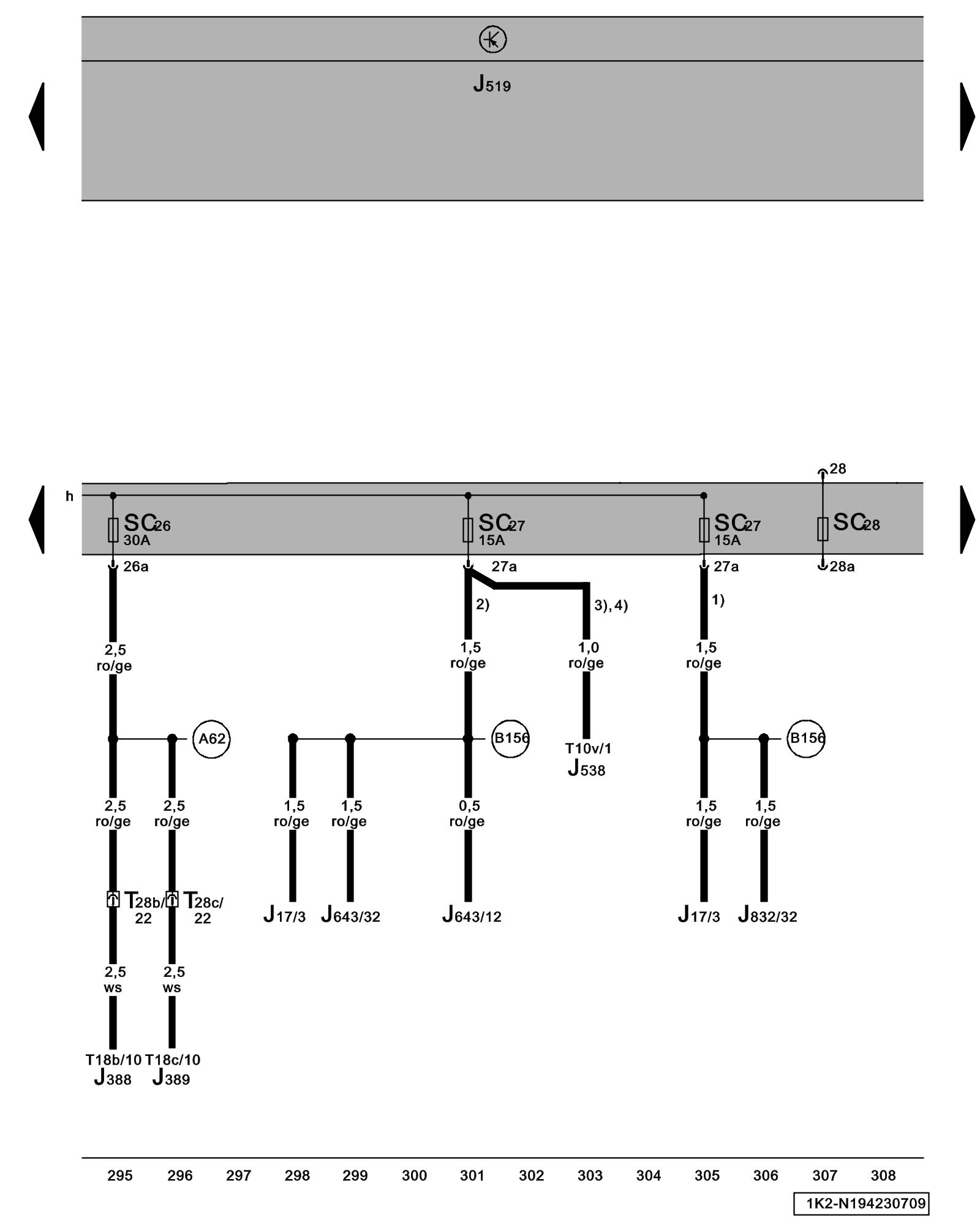

Diagram 194/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel Pump (FP) Relay Locations

J388 - Left Rear Door Control Module Locations Central Locking / Anti-Theft Systems

J389 - Right Rear Door Control Module Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

J538 - Fuel Pump (FP) Control Module Locations

J643 - Fuel Primer Relay

J832 - Auxiliary Fuel Pump Relay

SC26 - Fuse 26 (on fuse panel C) Locations

SC27 - Fuse 27 (on fuse panel C) Locations

SC28 - Fuse 28 (on fuse panel C) Locations

T10v - 10-Pin Connector

T18b - 18-Pin Connector

T18c - 18-Pin Connector

T28b - 28-Pin Connector

T28c - 28-Pin Connector

(A62) - Window Regulator Connection (in instrument panel wiring harness)

(B156) - Plus Connection (30a) (in interior wiring harness)

1) - Only models with engine code CBEA

2) - Only models with engine codes CBTA, CBUA

3) - Only models with engine code CCTA

4) - Only models with engine code CBFA
