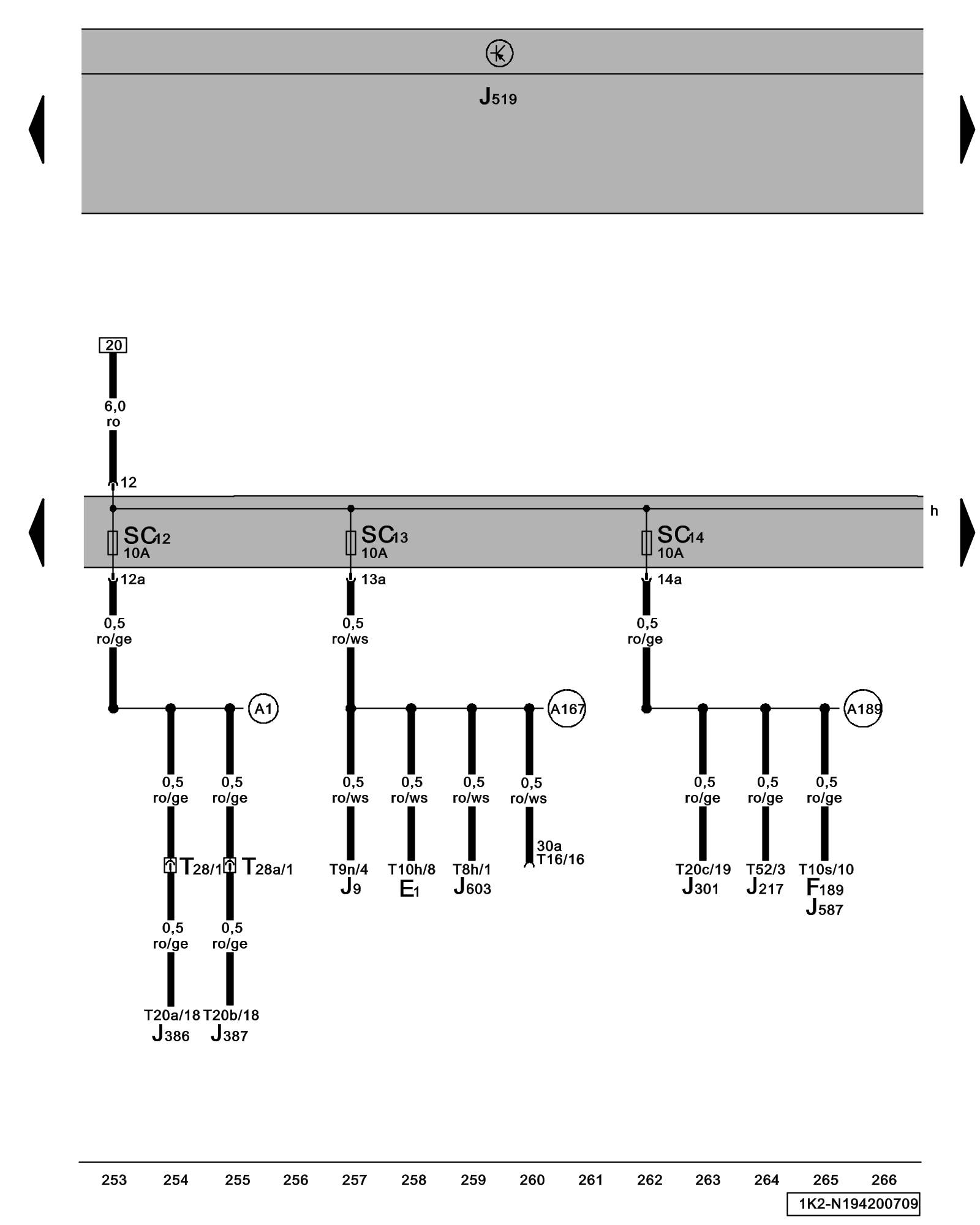

Diagram 194/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

F189 - Tiptronic Switch

J9 - Rear Window Defogger Relay Locations

J217 - Transmission Control Module (TCM) Locations

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J386 - Driver's Door Control Module Locations

J387 - Front Passenger's Door Control Module Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

J587 - Selector Lever Sensor Control Module Direct Shift Gearbox 02E (DSG)

J603 - Vehicle Position Recognition Control Module

SC12 - Fuse 12 (on fuse panel C) Locations

SC13 - Fuse 13 (on fuse panel C) Locations

SC14 - Fuse 14 (on fuse panel C) Locations

T8h - 8-Pin Connector

T9n - 9-Pin Connector

T10h - 10-Pin Connector

T10s - 10-Pin Connector

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T20c - 20-Pin Connector

T28 - 28-Pin Connector

T28a - 28-Pin Connector

T52 - 52-Pin Connector

(A1) - Plus Connection (30a) (in instrument panel wiring harness)

(A167) - Plus Connection 3 (30a) (in instrument panel wiring harness)

(A189) - Plus Connection 5 (30a) (in instrument panel wiring harness)
