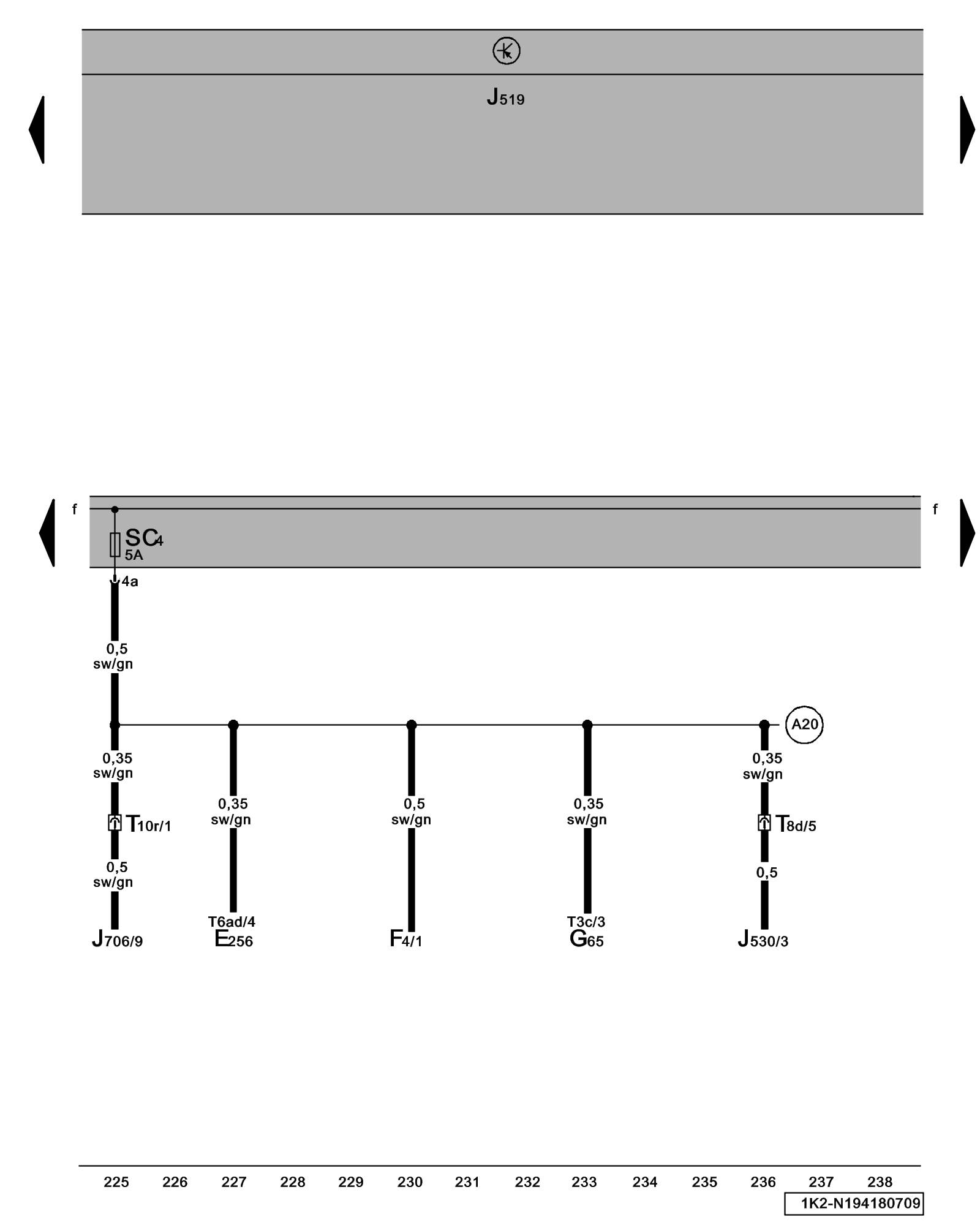

Diagram 194/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP Button

F4 - Back-Up Light Switch Direct Shift Gearbox 02E (DSG)

G65 - High Pressure Sensor Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J530 - Garage Door Opener Control Module

J706 - Seat Occupied Recognition Control Module Passive Occupant Detection System

SC4 - Fuse 4 (on fuse panel C) Locations

T3c - 3-Pin Connector

T6ad - 6-Pin Connector

T8d - 8-Pin Connector

T10r - 10-Pin Connector

(A20) - Plus Connection (15a), (in instrument panel wiring harness)
