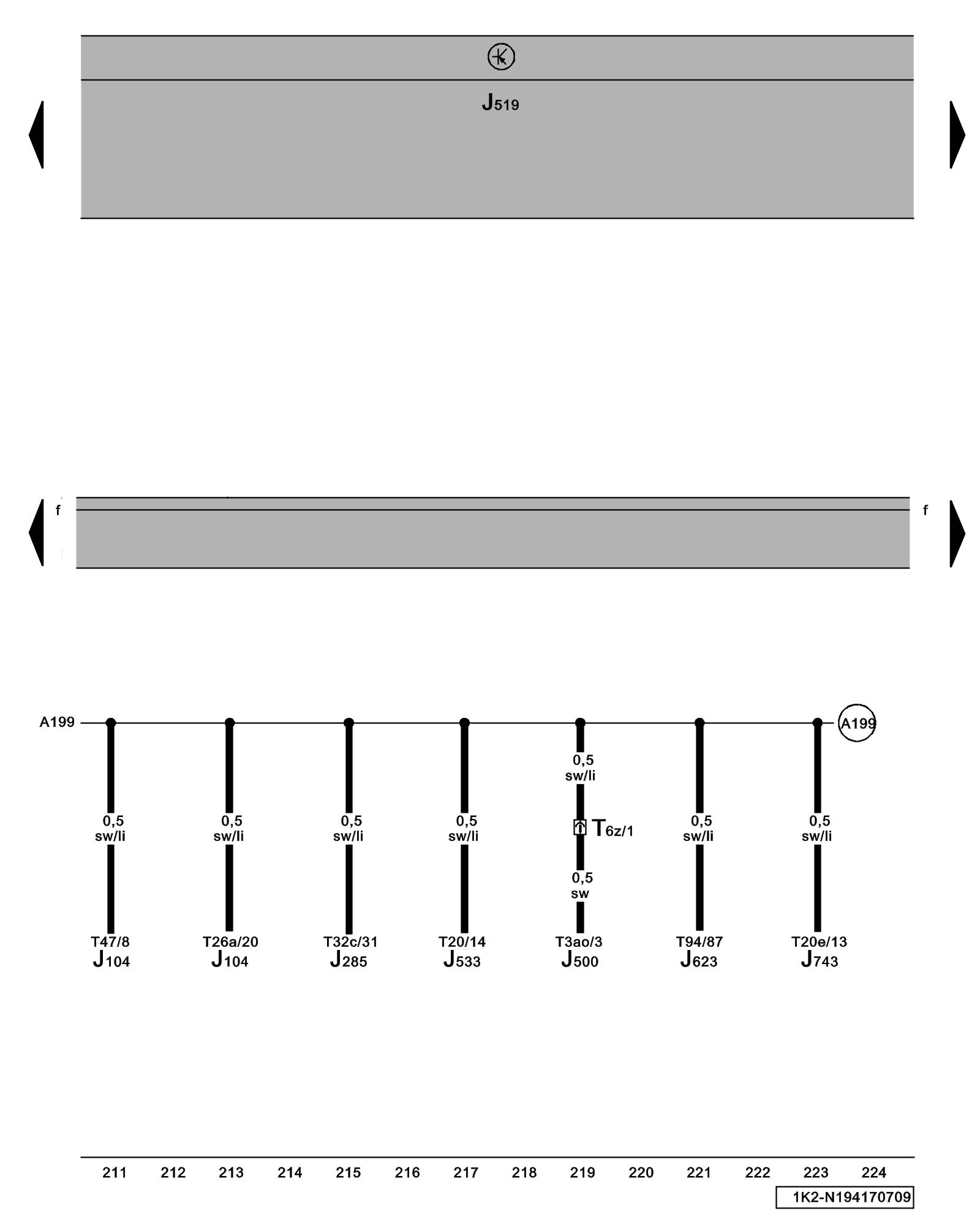

Diagram 194/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Locations

J285 - Instrument Cluster Control Module Locations Locations

J500 - Power Steering Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J533 - Data Bus On Board Diagnostic Interface Locations Locations

J623 - Engine Control Module (ECM) Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

T3ao - 3-Pin Connector

T6z - 6-Pin Connector

T20 - 20-Pin Connector

T20e - 20-Pin Connector

T26a - 26-Pin Connector

T32c - 32-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

(A199) - Plus Connection 4 (15a) (in instrument panel wiring harness)

Previous Diagram 194/16 (Tracks 197-210)

Next Diagram 194/18 (Tracks 225-238)
