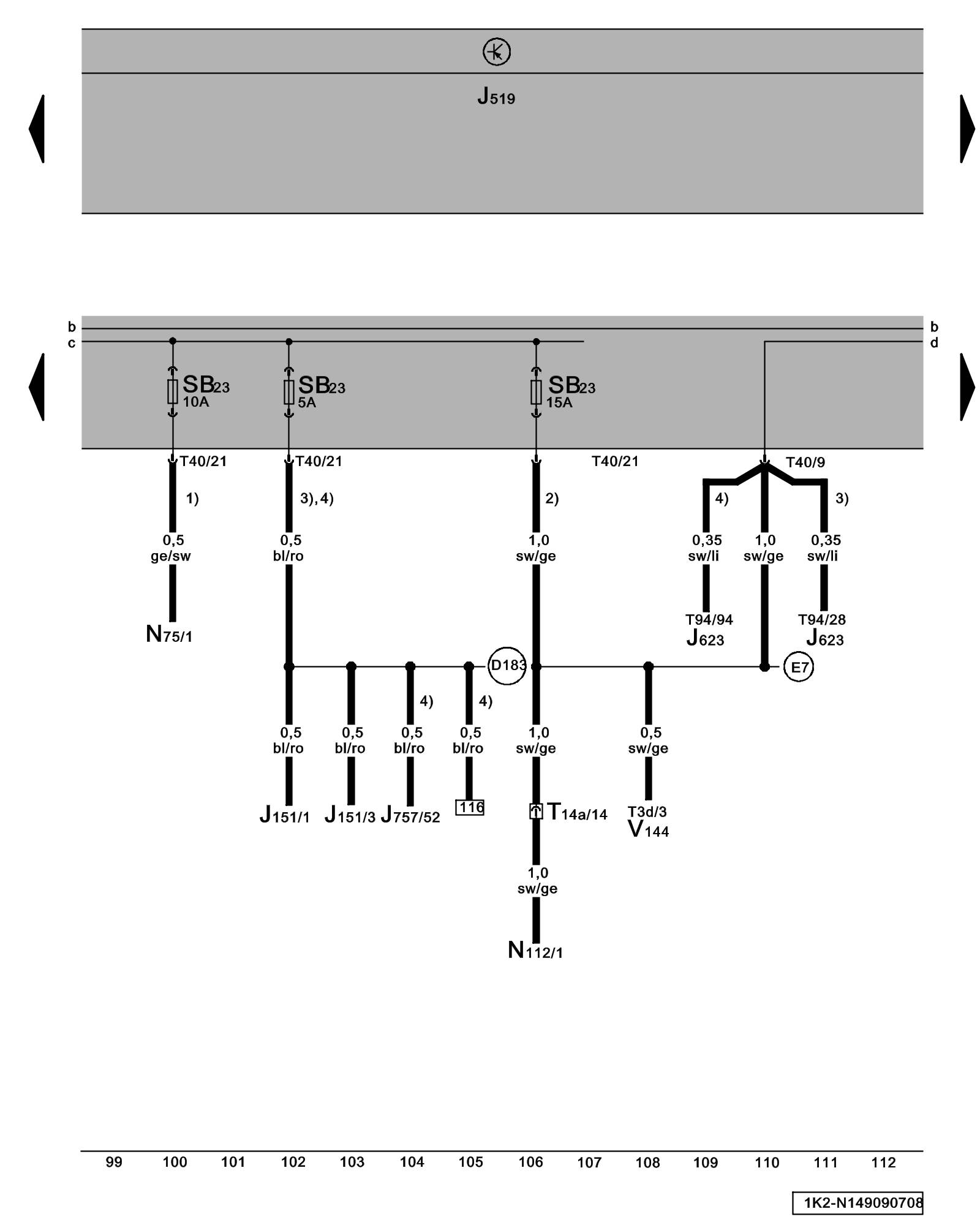

Diagram 149/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant Circulation Pump Relay Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

J757 - Engine Component Power Supply Relay Locations

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N112 - Secondary Air Injection (AIR) Solenoid Valve Locations

SB23 - Fuse 23 (on fuse panel B)

T3d - 3-Pin Connector

T14a - 14-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(D183) - Connection 4 (87a) (in engine wiring harness)

(E7) - Connection (87a)(in Motronic wiring harness)

1) - Engine code CBEA only

2) - Engine codes CBTA, CBUA only

3) - Engine code CCTA only

4) - Engine code CBFA only
