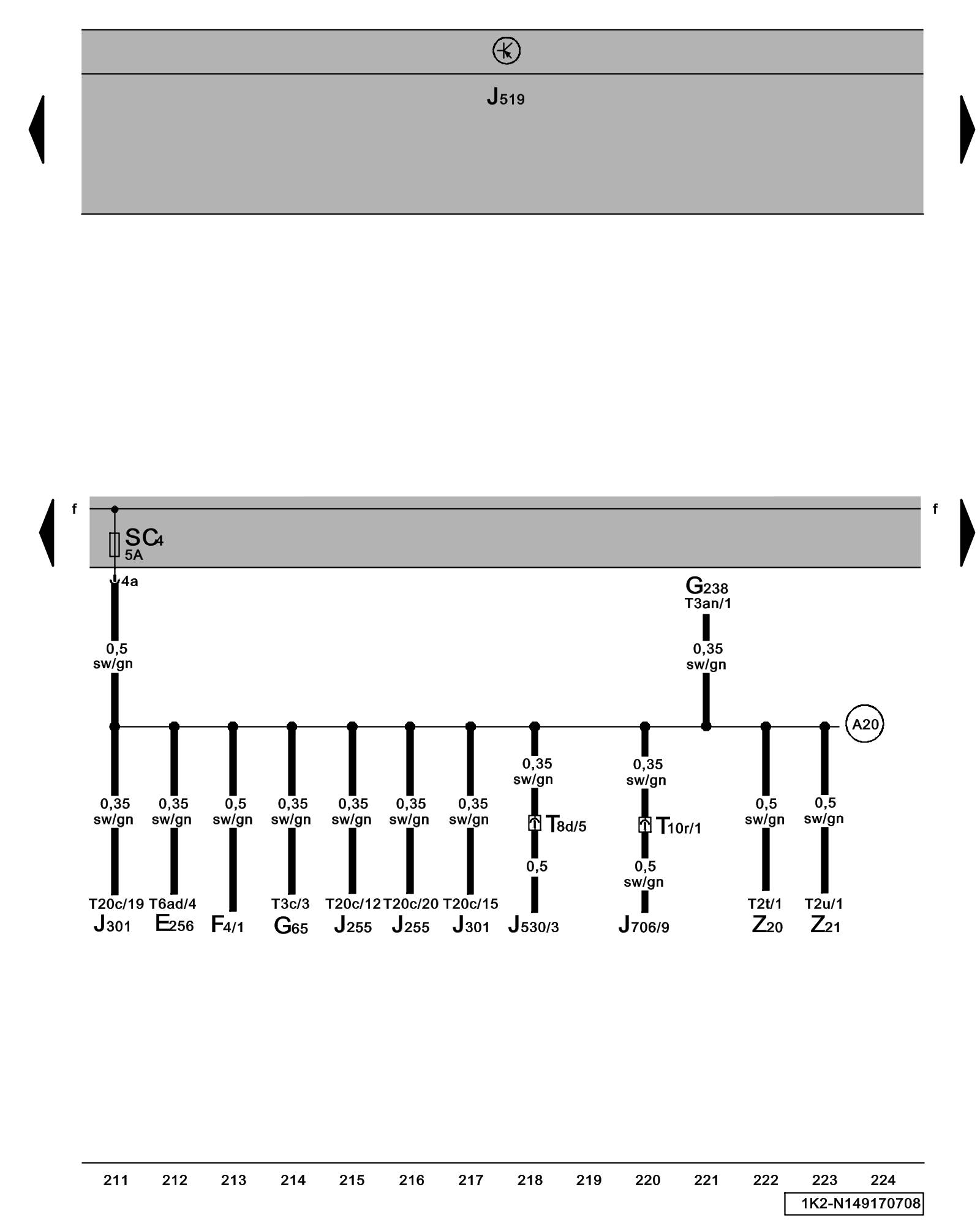

Diagram 149/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP Button

F4 - Back-Up Light Switch Direct Shift Gearbox 02E (DSG)

G65 - High Pressure Sensor Locations

G238 - Air Quality Sensor

J255 - Climatronic Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J519 - Vehicle Electrical System Control Module Locations Locations

J530 - Garage Door Opener Control Module

J706 - Seat Occupied Recognition Control Module Passive Occupant Detection System

SC4 - Fuse 4 (on fuse panel C) Locations

T2t - Double Connector

T2u - Double Connector

T3c - 3-Pin Connector

T3an - 3-Pin Connector

T6ad - 6-Pin Connector

T8d - 8-Pin Connector

T10r - 10-Pin Connector

T20c - 20-Pin Connector

Z20 - Left Washer Nozzle Heater

Z21 - Right Washer Nozzle Heater

(A20) - Plus Connection (15a) (in instrument panel wiring harness)
