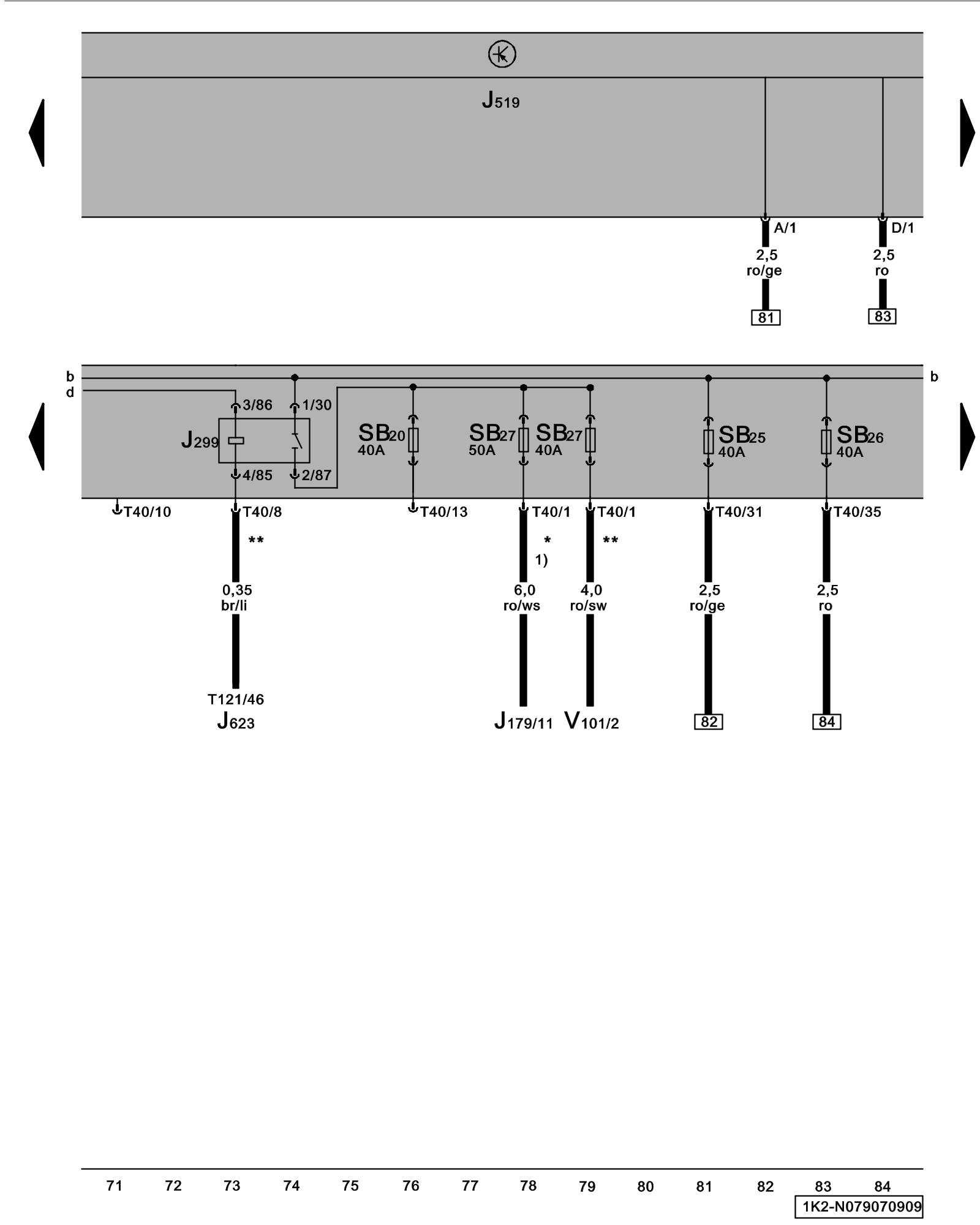

Diagram 79/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J179 - Automatic Glow Time Control Module Locations

J299 - Secondary Air Injection (AIR) Pump Relay

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

SB20 - Fuse 20 (on fuse panel B)

SB25 - Fuse 25 (on fuse panel B)

SB26 - Fuse 26 (on fuse panel B)

SB27 - Fuse 27 (on fuse panel B)

T40 - 40-Pin Connector

T121 - 121-Pin Connector

V101 - Secondary Air Injection (AIR) Pump Motor Locations

* - Diesel engines only

** - Gasoline engines only

1) - Through June 2007
