C-pillar Trim

C-pillar Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Fold backrest forward.

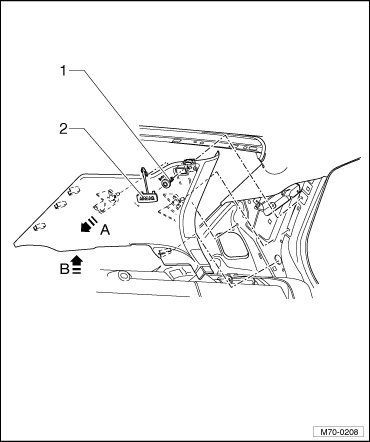

- Remove the airbag emblem - 2 - and remove the bolt - 1 - (4 Nm).

• When re-installing, emblem for airbag - 2 - must be replaced.

- Remove trim from mounts - arrow A - and door seal.

- Pull trim upward and out - arrow B -.





Installation

- To install, perform the steps used for removal in reverse order.

• Before installing, inspect the securing clips for damage and replace if necessary.
