Trunk / Liftgate Lock Cylinder: Service and Repair

Lock Cylinder

Removing

- Remove rear lid trim.

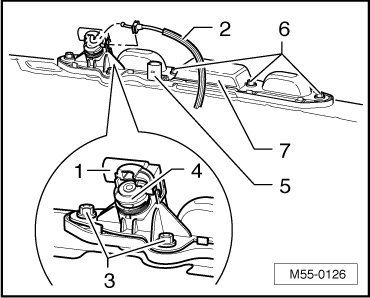

- Disconnect harness connector - 1 - from lock cylinder.





- Disengage release - 2 -.

- Unscrew nuts - 3 - and remove lock cylinder - 4 -.

Installing

Installation is performed in the reverse order of removal.

Tightening specification for hex nuts: 8 Nm

• Before the rear lid is closed, a function test of the unlocking components must be performed.
