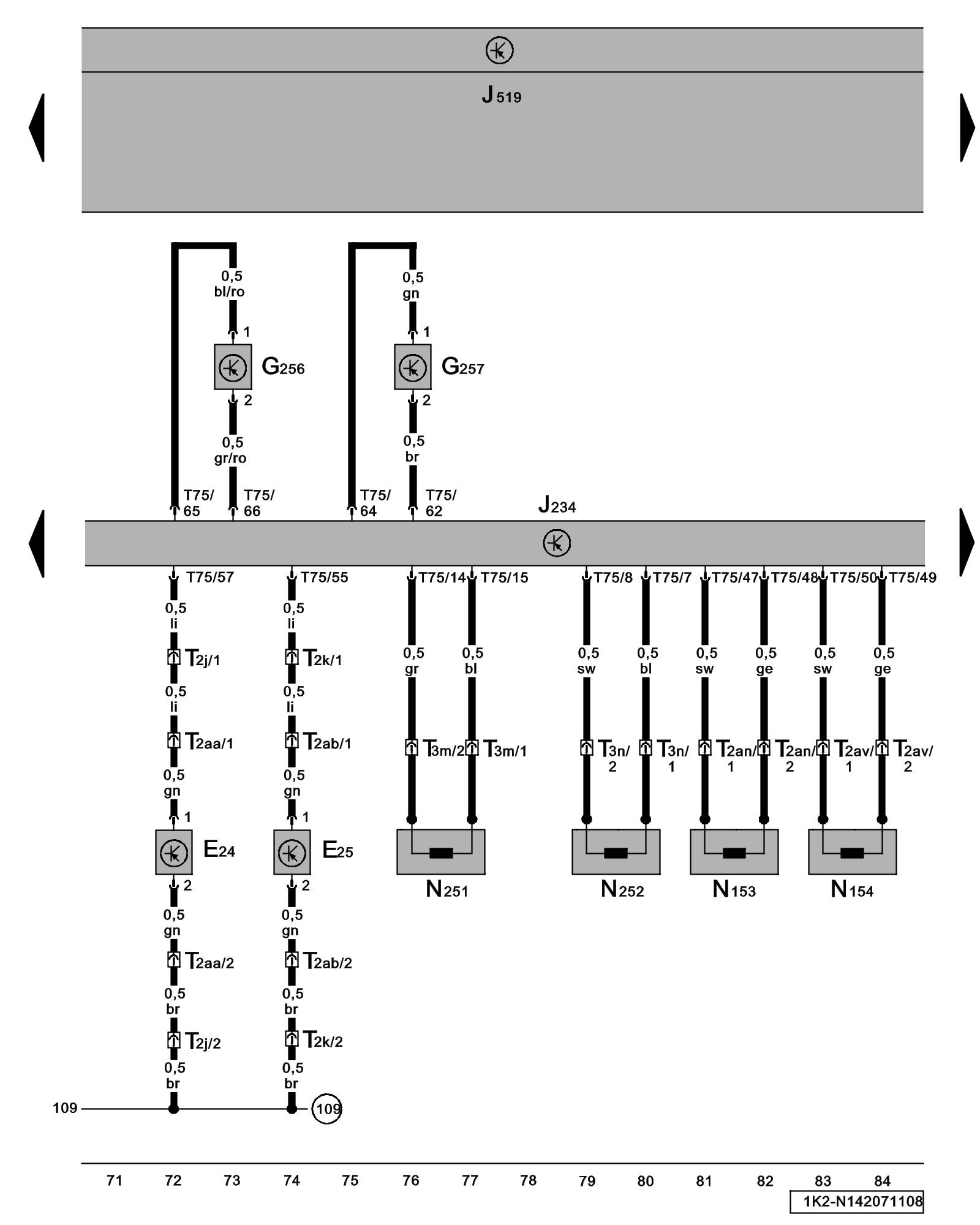

Diagram 142/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver and Front Passenger Seat Belt Switch, Rear Side Airbag Crash Sensor, Airbag Control Module, Driver and Front Passenger Seat Belt Tensioner Igniter 1, Driver Head Curtain Airbag Igniter, Front Passenger Side Curtain Airbag Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E24 - Driver Seat Belt Switch

E25 - Front Passenger Seat Belt Switch

G256 - Rear Side Airbag Crash Sensor (on Driver side) Locations

G257 - Rear Side Airbag Crash Sensor (on front Passenger side) Locations

J234 - Airbag Control Module Locations Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N153 - Driver Seat Belt Tensioner Igniter 1 Locations

N154 - Front Passenger Seat Belt Tensioner Igniter 1 Locations

N251 - Driver Head Curtain Airbag Igniter Airbag Component Locations

N252 - Front Passenger Side Curtain Airbag Igniter Airbag Component Locations

T2j - 2- Pin Connector, yellow, in front footwell, left

T2k - 2- Pin Connector, yellow, in front footwell, right

T2aa - 2- Pin Connector, yellow, below driver's seat

T2ab - 2- Pin Connector, yellow, below front passenger's seat

T2an - 2- Pin Connector

T2av - 2- Pin Connector

T3m - 3- Pin Connector

T3n - 3- Pin Connector

T75 - 75-Pin Connector

(109) - Ground Connection (in airbag wiring harness)
