Diagram 175/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

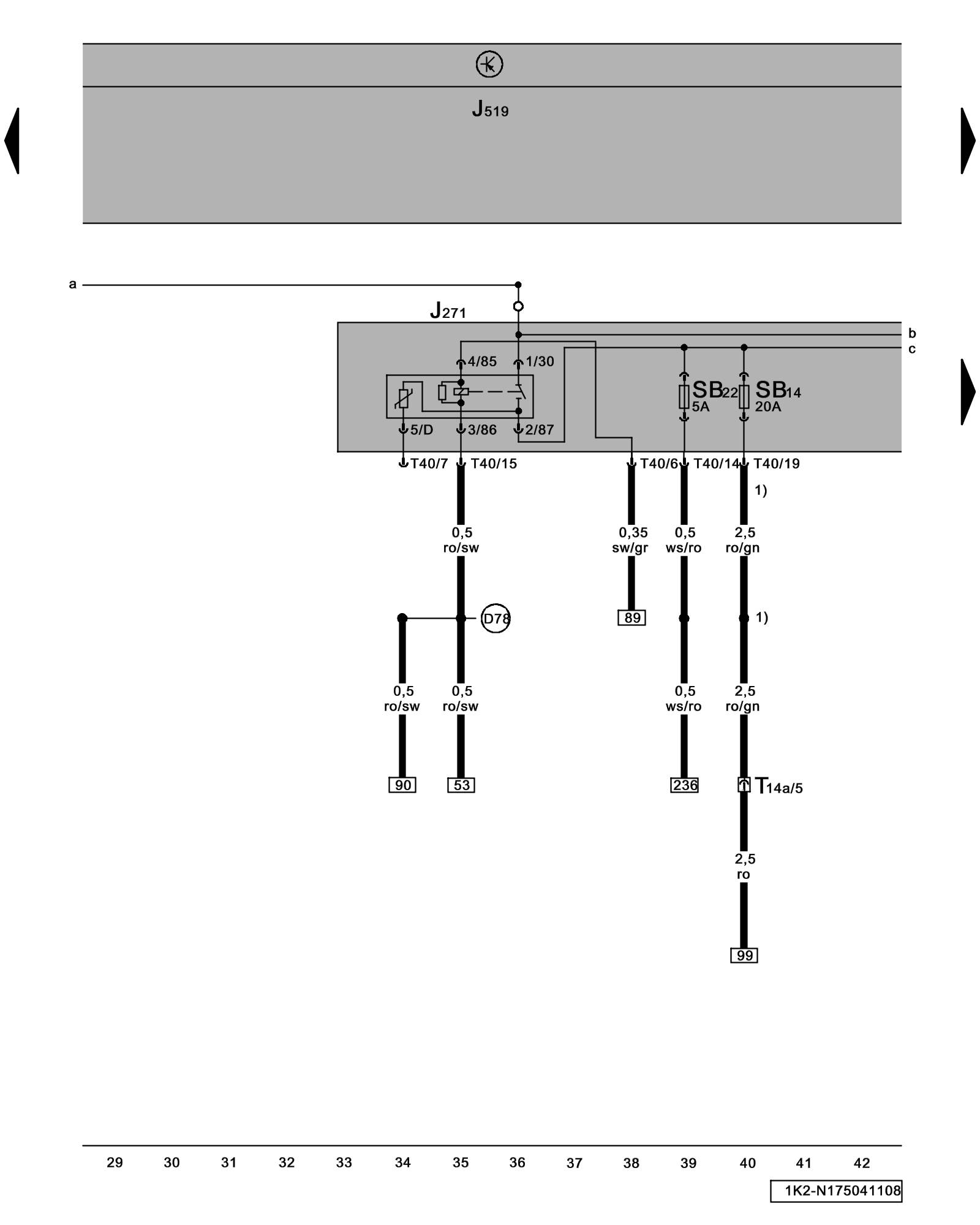

Motronic Engine Control Module (ECM) Power Supply Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic Engine Control Module (ECM) Power Supply Relay Locations

J519 - Vehicle Electrical System Control Module Locations Locations

SB14 - Fuse 14 (on fuse panel B)

SB22 - Fuse 22 (on fuse panel B)

T14a - 14-Pin Connector

T40 - 40-Pin Connector

(D78) - Plus Connection 1 (30a) (in engine compartment wiring harness)

1) - Through December 2008

Previous Diagram 175/3 (Tracks 15-28)

Next Diagram 175/5 (Tracks 43-56)
