Diagram 175/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

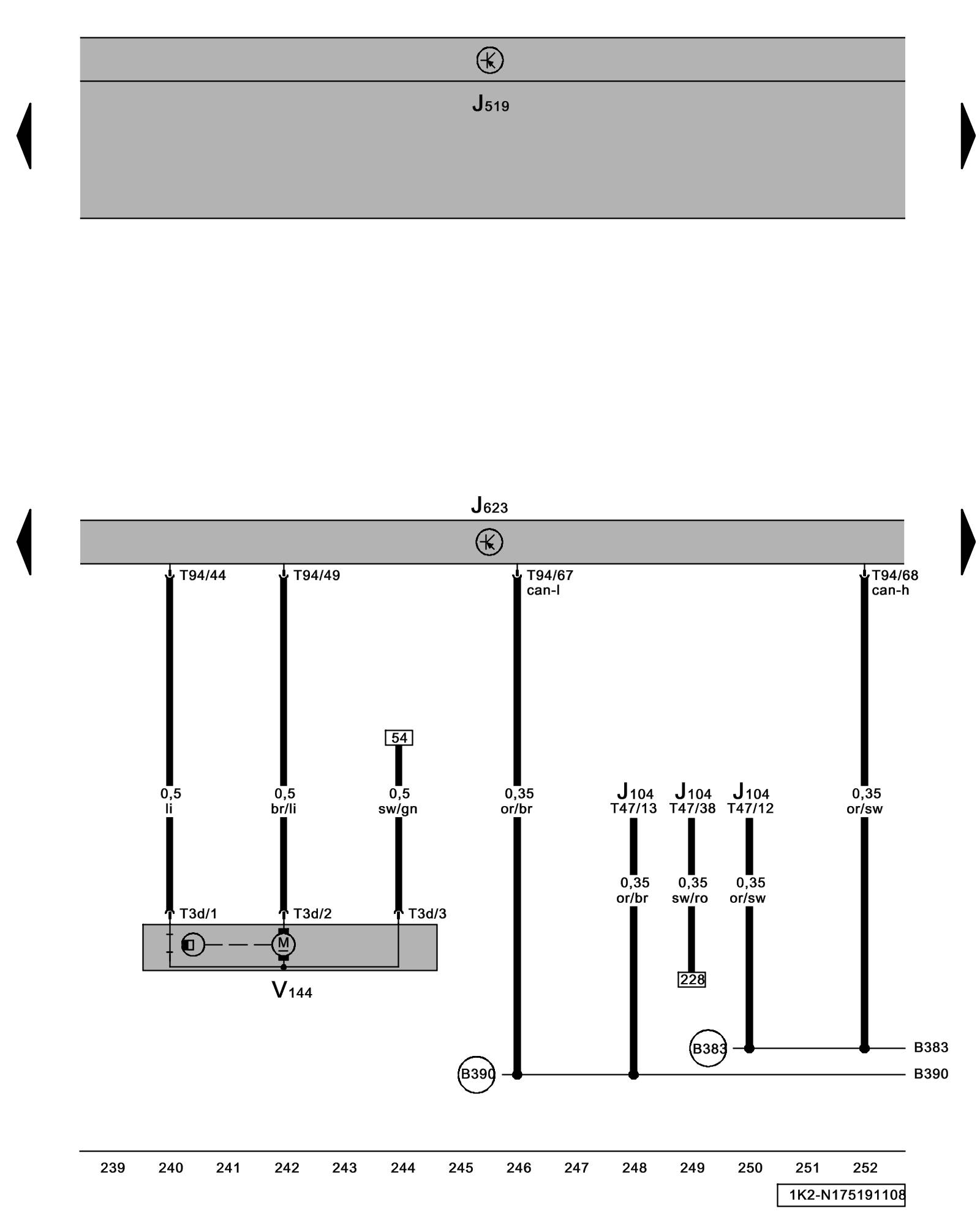

Engine Control Module (ECM), Leak Detection Pump (LDP)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

T3d - 3-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)
