Diagram 175/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

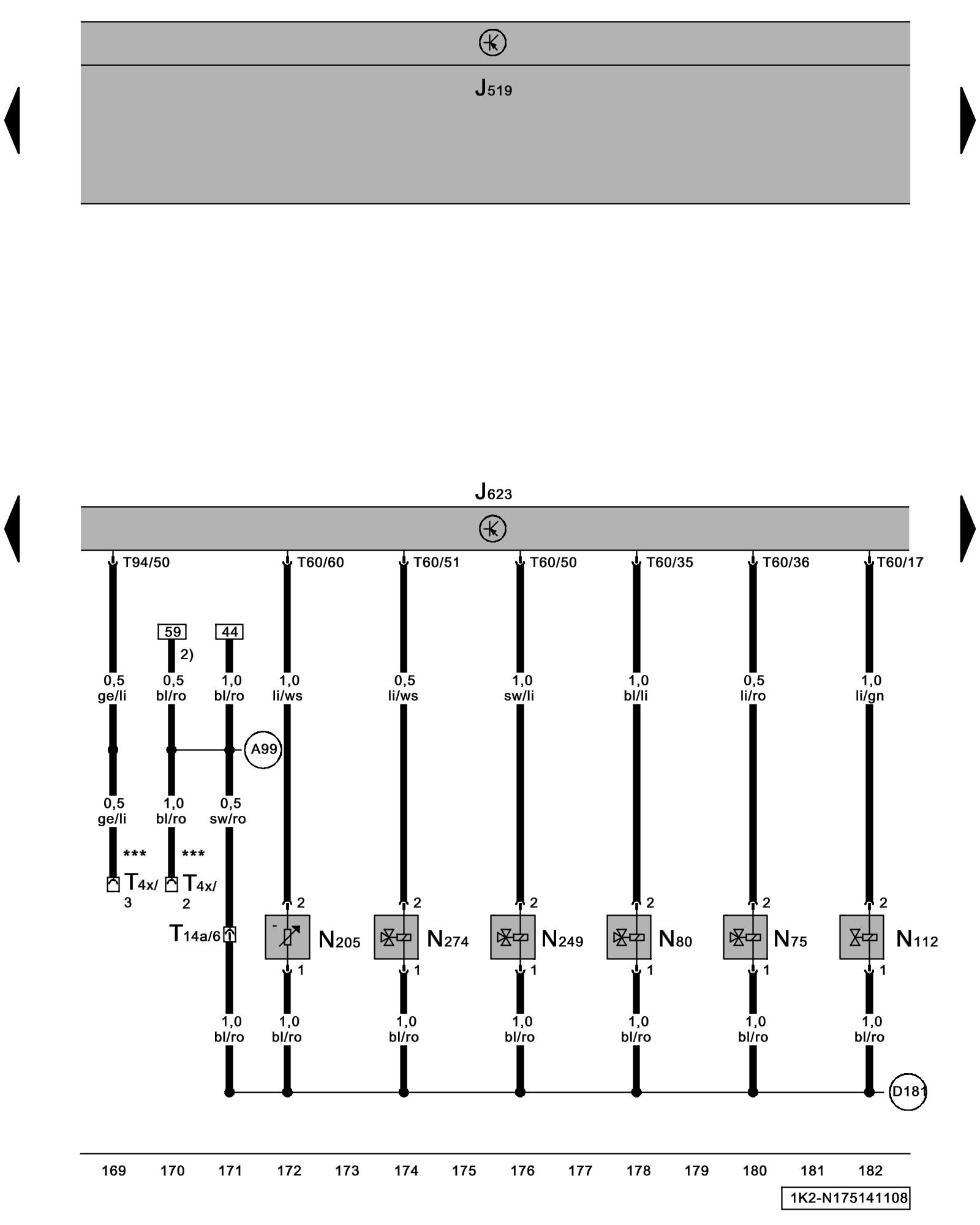

Engine Control Module (ECM), Wastegate Bypass Regulator Valve, Evaporative Emission (EVAP) Canister Purge Regulator Valve, Secondary Air Injection (AIR) Solenoid Valve, Camshaft Adjustment Valve 1, Turbocharger Recirculating Valve, Wastegate Bypass Regulator Valve 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve Locations

N112 - Secondary Air Injection (AIR) Solenoid Valve Locations

N205 - Camshaft Adjustment Valve 1 Locations

N249 - Turbocharger Recirculating Valve 2.0L BPY, CCTA and CBFA

N274 - Wastegate Bypass Regulator Valve 2 2.0L BPY, CCTA and CBFA

T4x - 4-Pin Connector

T14a - 14-Pin Connector

T60 - 60-Pin Connector

T94 - 94-Pin Connector

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D181) - Connection 2 (87a) (in engine wiring harness)

*** - Coolant fan connection

2) - From December 2008

Previous Diagram 175/13 (Tracks 155-168)

Next Diagram 175/15 (Tracks 183-196)
