Diagram 16/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

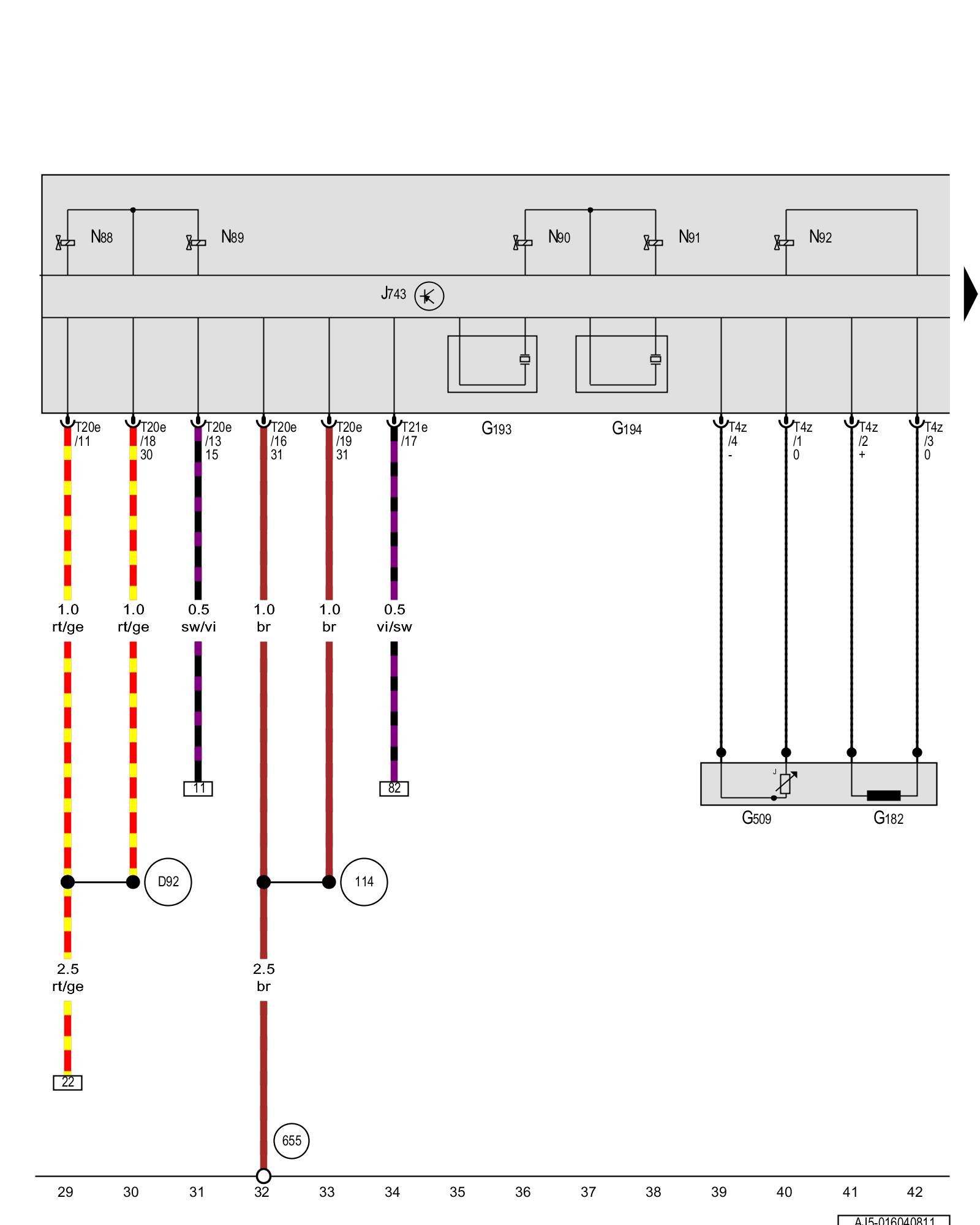

Transmission input speed sensor, Automatic transmission hydraulic pressure sensor 1, Automatic transmission hydraulic pressure sensor 2, Clutch oil temperature sensor, DSG transmission Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G182 - Transmission input speed sensor Locations Transmission Fluid Temperature Sensor -G93- / Transmission Input Speed Sensor -G182- / Transmission Output Speed Sensor -G195-

G193 - Automatic transmission hydraulic pressure sensor 1 Locations

G194 - Automatic transmission hydraulic pressure sensor 2 Locations

G509 - Clutch oil temperature sensor Locations

J743 - DSG transmission Mechatronic Locations [1][2]Automatically Shifted Manual Transmission/Transaxle

N88 - Solenoid valve 1 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283

N89 - Solenoid valve 2Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283

N90 - Solenoid valve 3 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283

N91 - Solenoid valve 4 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283

N92 - Solenoid valve 5 Locations Transmission Valve Body Solenoids: N88, N89, N90, N91, N92, N93, N282,N283

T4z - 4-pin connector

T20e - 20-pin connector

T21e - 21-pin connector

(114) - Ground connection (in automatic transmission wiring harness)

(655) - Ground connection on left headlamp

(D92) - Connection (30al) (in engine compartment wiring harness)

Previous Diagram 16/3 (Tracks 15-28)

Next Diagram 16/5 (Tracks 43-56)
