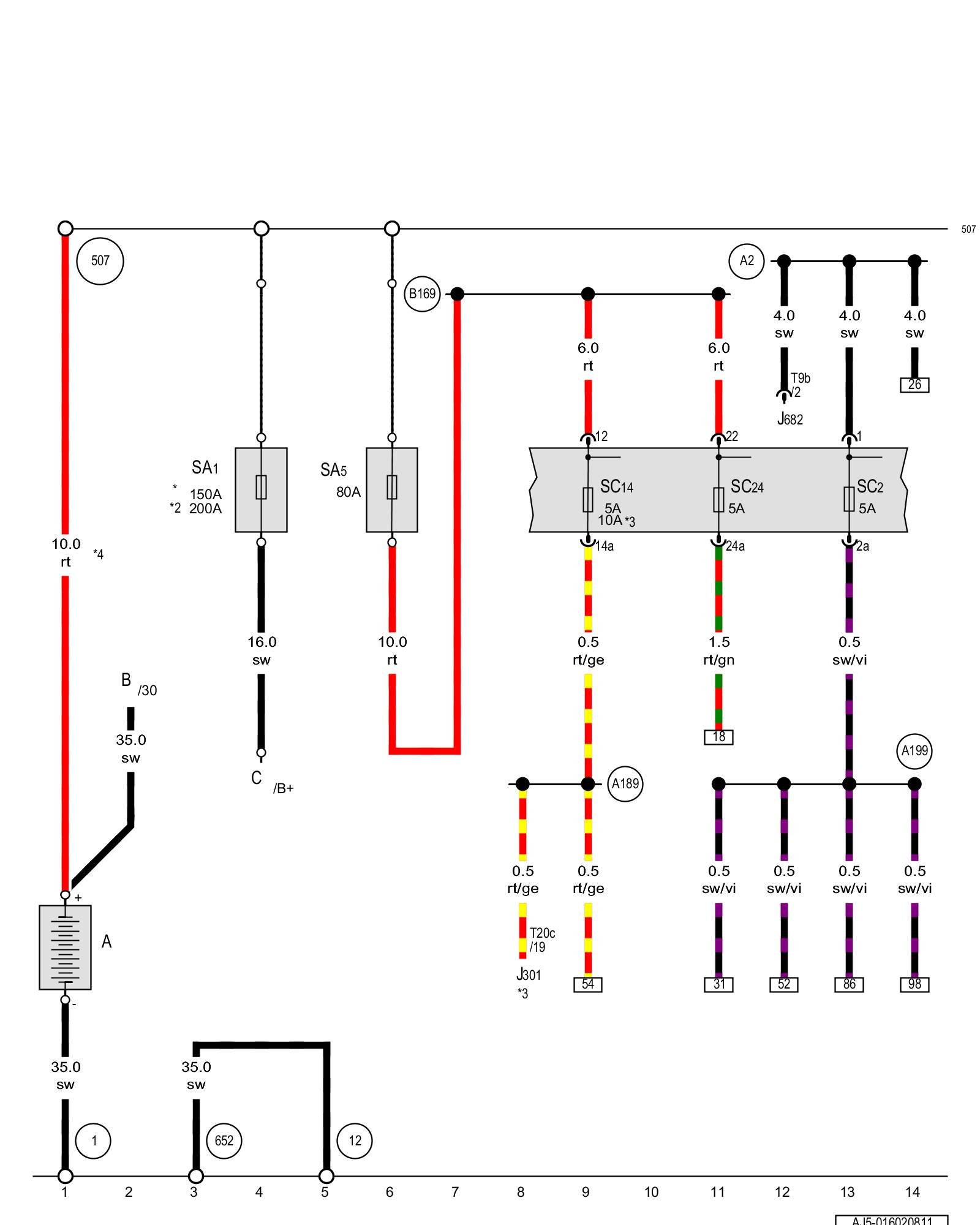

Diagram 16/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

J301 - A/C control module Pass Compartment A/C and Heating System A/C Control Module -J301-

J682 - Terminal 50 power supply relay Locations Locations

SA1 - Fuse 1 (on fuse panel A) Locations

SC2 - Fuse 2 (on fuse panel C)

SA5 - Fuse 5 (on fuse panel A) Locations

SC14 - Fuse 14 (on fuse panel C)

SC24 - Fuse 24 (on fuse panel C)

T9b - 9-pin connector

T20c - 20-pin connector

(1) - Ground strap, battery to body

(12) - Ground connection in engine compartment, left

(507) - Terminal 30 threaded connection (on battery fuse holder)

(652) - Transmission/engine ground connection

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A189) - Positive connection 5 (30a) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

* - Only for vehicles with 90 A/110 A generator

*2 - Only for vehicles with a generator (140 A)

*3 - Optional equipment

*4 - 16,0 diameter possible

Next Diagram 16/3 (Tracks 15-28)
