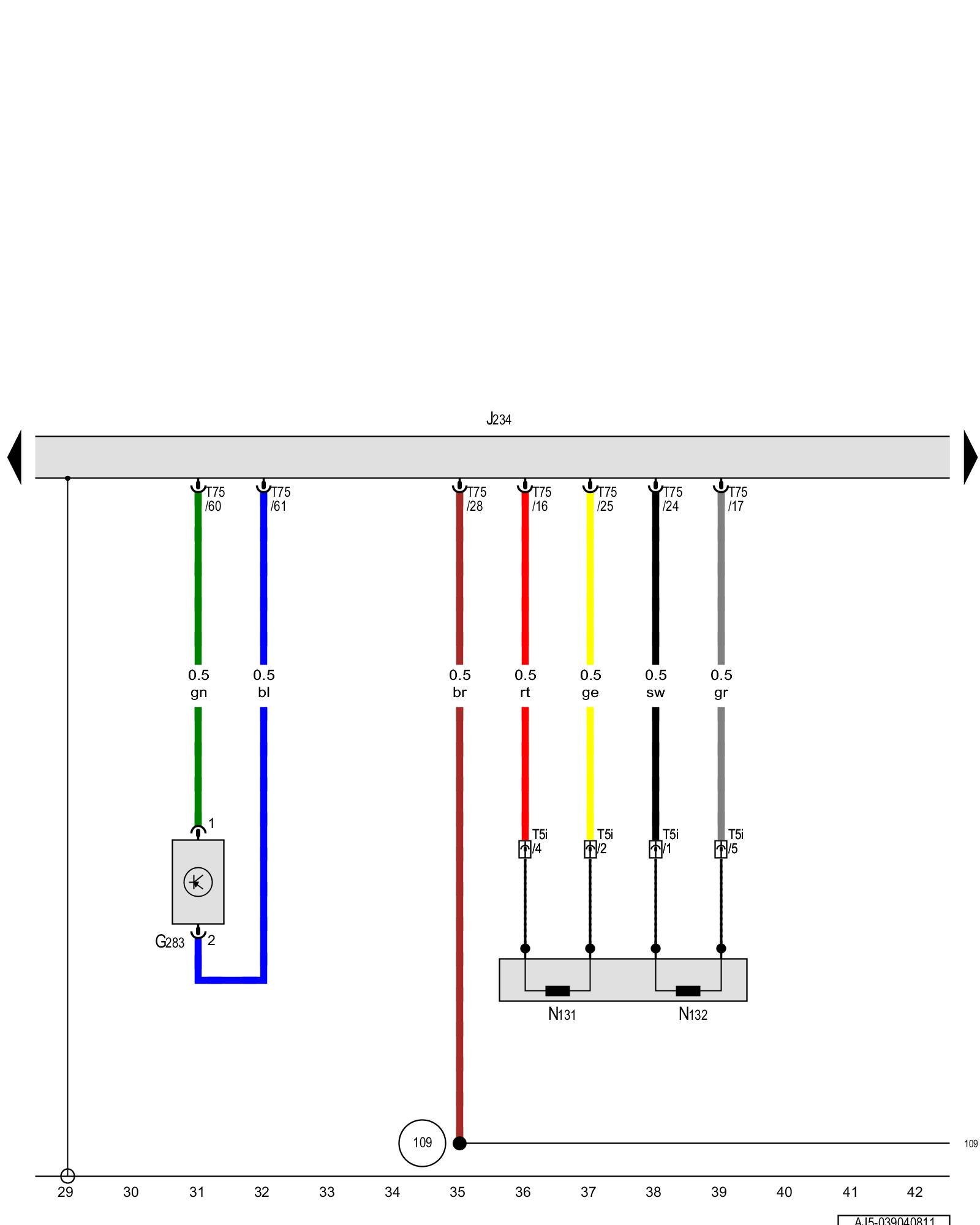

Diagram 39/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver front airbag crash sensor, Airbag control module, Front passenger airbag igniter 1, Front passenger airbag igniter 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G283 - Driver front airbag crash sensor Driver Front Airbag Crash Sensor -G283- and Front Pass Front Airbag Crash Sensor -G284-

J234 - Airbag control module Locations

N131 - Front passenger airbag igniter 1 Airbag Component Locations Front Pass Airbag Igniter 1 -N131- and Front Pass Airbag Igniter 2 -N132-

N132 - Front passenger airbag igniter 2 Airbag Component Locations Front Pass Airbag Igniter 1 -N131- and Front Pass Airbag Igniter 2 -N132-

T5i - 5-pin connector

T75 - 75-pin connector

(109) - Ground connection (in airbag wiring harness)
