Diagram 25/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

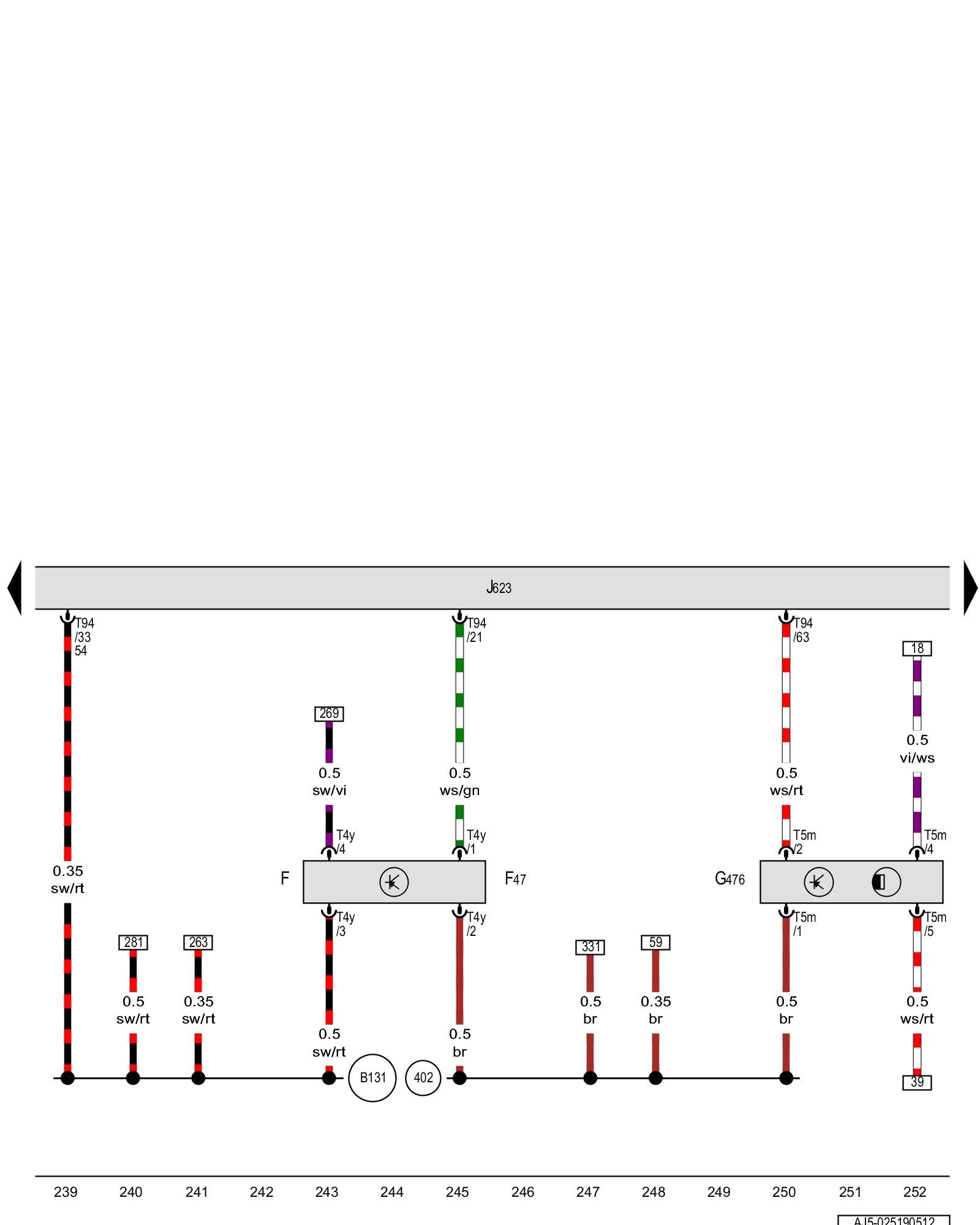

Brake lamp switch, Brake pedal switch, Clutch position sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations [1][2]Brake Light Switch

F47 - Brake pedal switch Locations [1][2]Brake Light Switch

G476 - Clutch position sensor 2.5L CBTA and CBUA Diagrams

J623 - Engine control module

T4y - 4-pin connector

T5m - 5-pin connector

T94 - 94-pin connector

(402) - Interior lighting ground connection (in interior wiring harness)

(B131) - Connection 54 (in interior wiring harness)

Previous Diagram 25/18 (Tracks 225-238)

Next Diagram 25/20 (Tracks 253-266)
