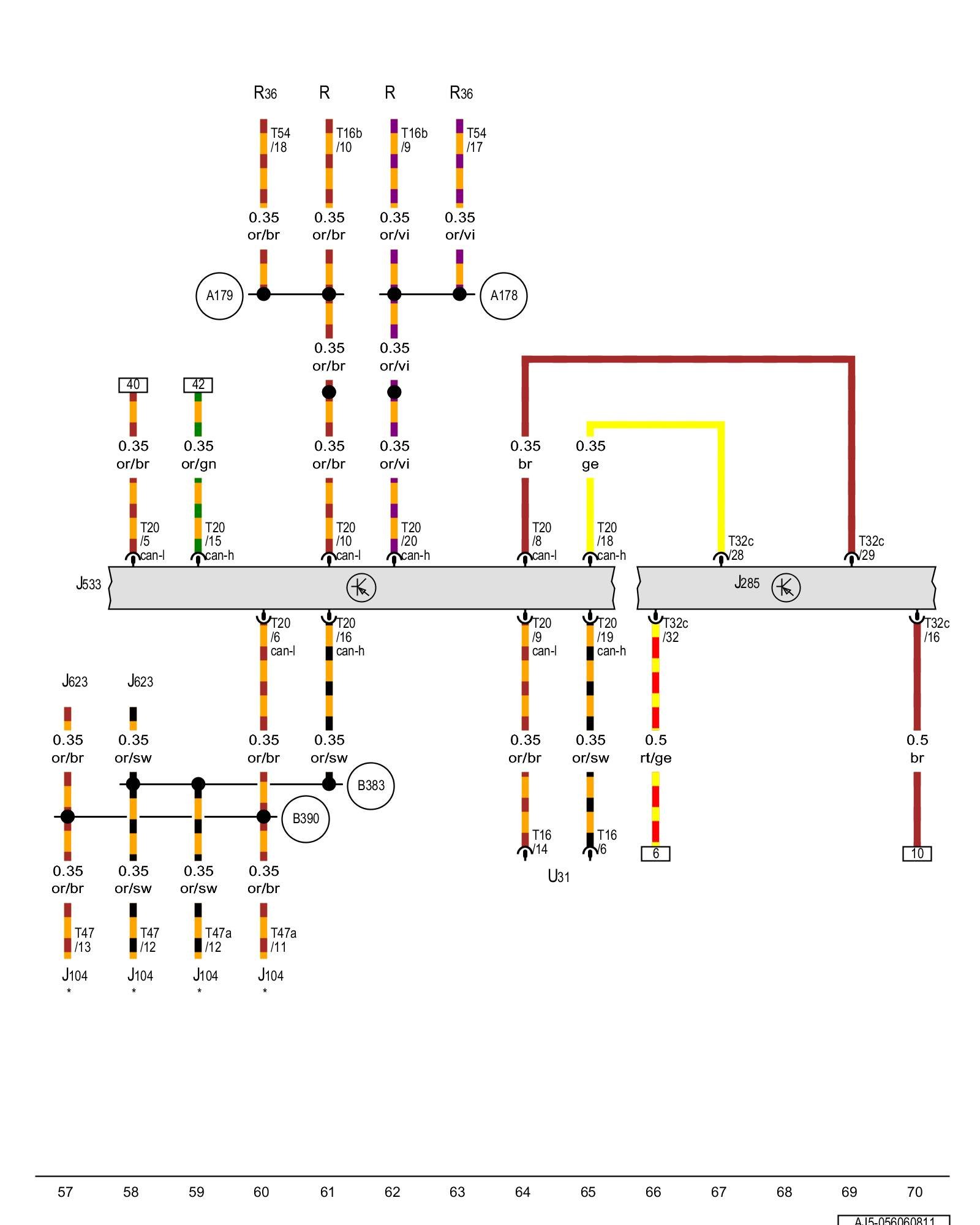

Diagram 56/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Instrument cluster control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Locations [1][2]Diagrams

J285 - Instrument cluster control module

J533 - Data bus on board diagnostic interface Locations

J623 - Engine control module Locations

R - Radio

R36 - Telephone transceiver Telematics System Overview

T16 - 16-pin connector

T16b - 16-pin connector

T20 - 20-pin connector

T32c - 32-pin connector

T47 - 47-pin connector

T47a - 47-pin connector

T54 - 54-pin connector

U31 - Diagnostic connection

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Depending on equipment

Previous Diagram 56/5 (Tracks 43-56)
