Diagram 25/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


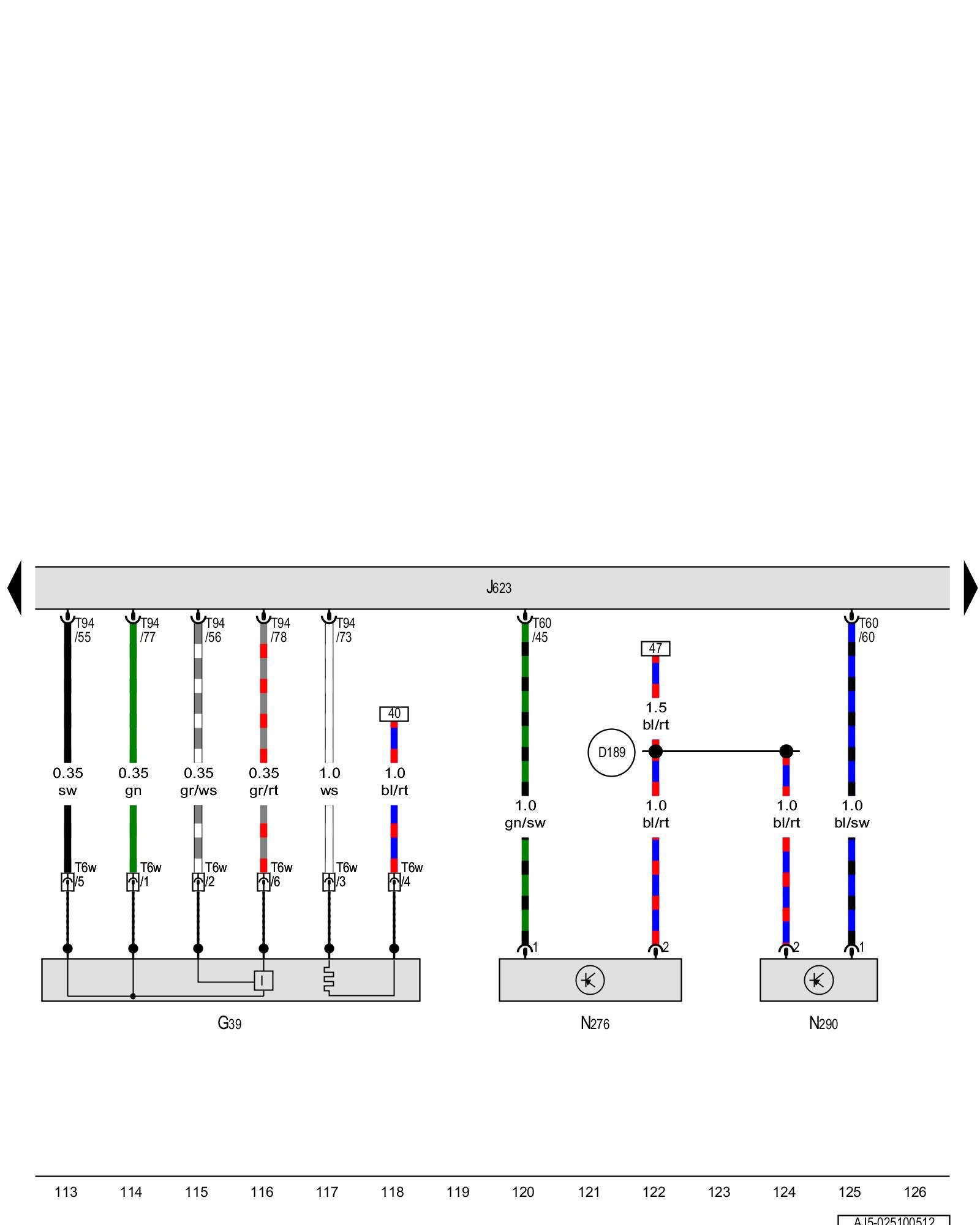

Heated oxygen sensor, Engine control module, Fuel pressure regulator valve, Fuel metering valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

J623 - Engine control module

N276 - Fuel pressure regulator valve Locations [1][2]Diagrams

N290 - Fuel metering valve 2.0L CJAA TDI Fuel Metering Valve -N290-

T6w - 6-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

(D189) - Connection 87a (in engine wiring harness)

Previous Diagram 25/9 (Tracks 99-112)

Next Diagram 25/11 (Tracks 127-140)
