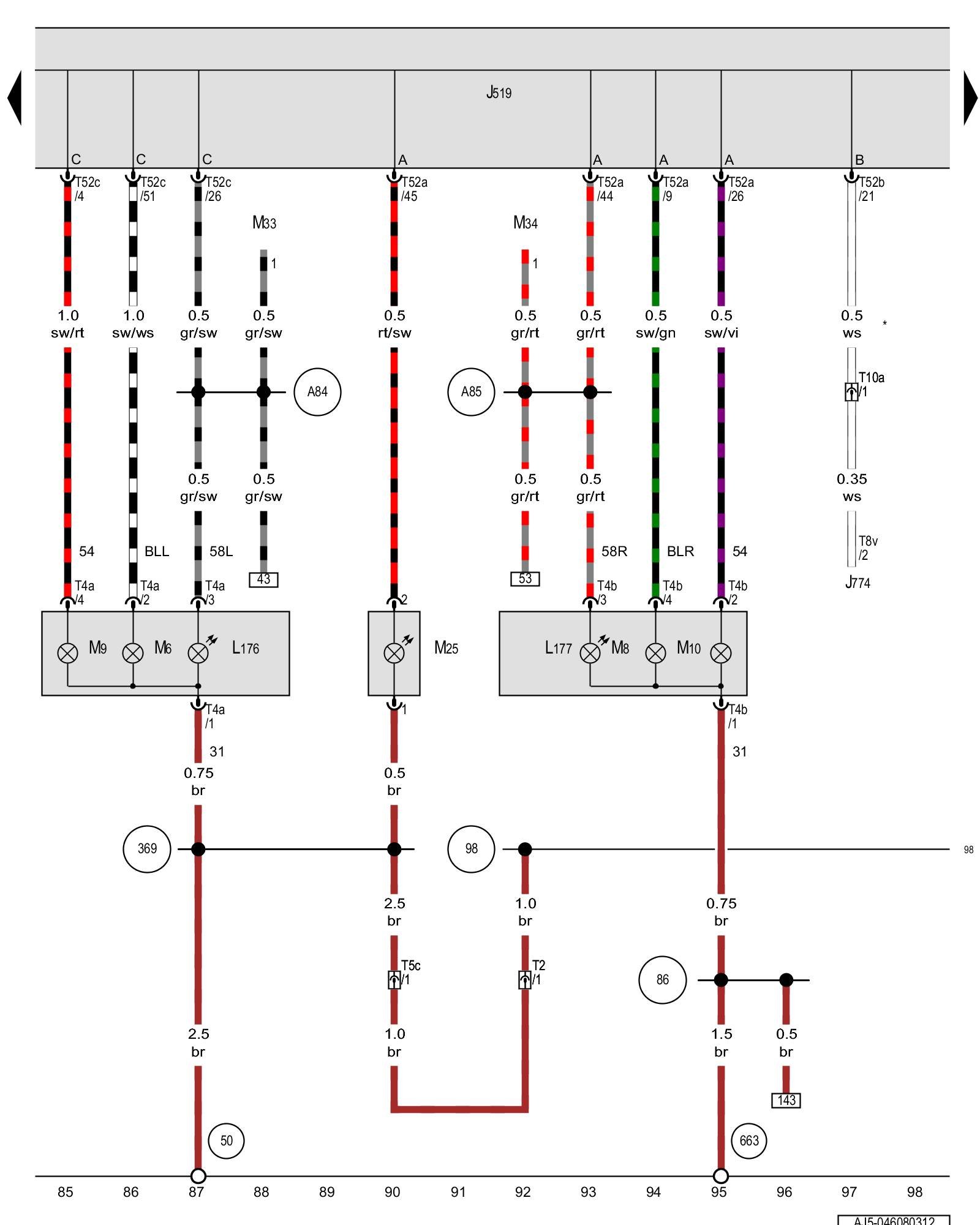

Diagram 46/8 (Tracks 85-98)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Left daytime running lamp and parking lamp LED module, Right daytime running lamp and parking lamp LED module, Left rear turn signal bulb, Right rear turn signal bulb, Left brake lamp bulb, Right brake lamp bulb, High-mounted brake lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations

J774 - Front seat heating control module Diagrams

L176 - Left daytime running lamp and parking lamp LED module

L177 - Right daytime running lamp and parking lamp LED module

M6 - Left rear turn signal bulb

M8 - Right rear turn signal bulb

M9 - Left brake lamp bulb

M10 - Right brake lamp bulb

M25 - High-mounted brake lamp bulb

M33 - Left front side marker lamp bulb

M34 - Right front side marker lamp bulb

T2 - Double connector

T4a - 4-pin connector

T4b - 4-pin connector

T5c - 5-pin connector

T8v - 8-pin connector

T10a - 10-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(50) - Ground connection in luggage compartment, left Locations

(86) - Ground connection 1 (in rear wiring harness)

(98) - Ground connection (in rear lid wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(663) - Ground connection in right rear side panel Locations

(A84) - Connection (58L) (in instrument panel wiring harness)

(A85) - Connection (58R) (in instrument panel wiring harness)

* - Only for vehicles with an auxiliary heater

Previous Diagram 46/7 (Tracks 71-84)

Next Diagram 46/9 (Tracks 99-112)
