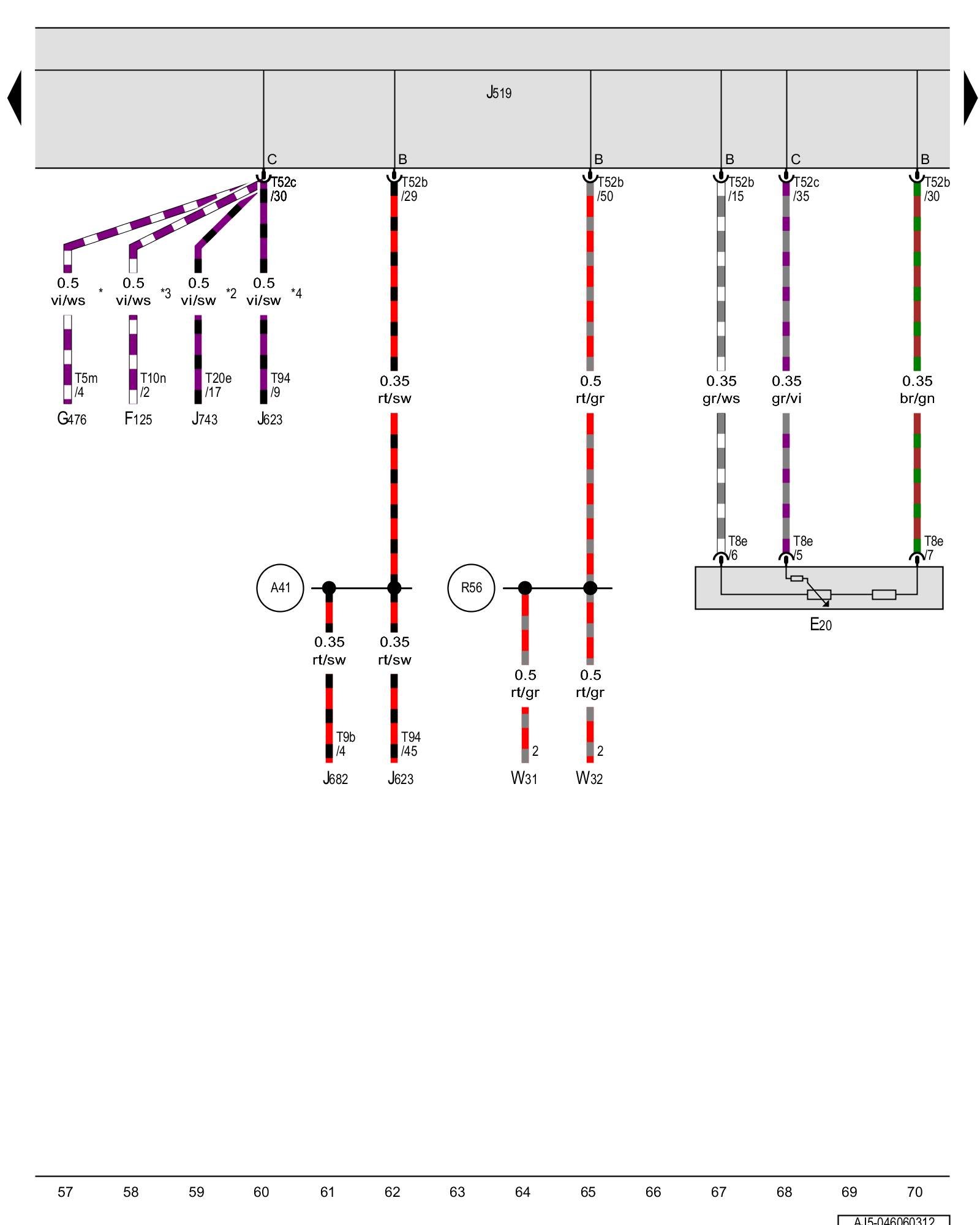

Diagram 46/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Instrument panel and switch illumination dimmer switch, Multifunction transmission range switch, Clutch position sensor, Vehicle electrical system control module, Terminal 50 power supply relay, DSG transmission Mechatronic, Left front entry lamp, Right front entry lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E20 - Instrument panel and switch illumination dimmer switch

F125 - Multifunction transmission range switch Locations Multifunction Transmission Range Switch -F125-

G476 - Clutch position sensor 2.5L CBTA and CBUA Diagrams

J519 - Vehicle electrical system control module Locations

J623 - Engine control module

J682 - Terminal 50 power supply relay Locations Locations

J743 - DSG transmission Mechatronic Locations [1][2]Automatically Shifted Manual Transmission/Transaxle

T5m - 5-pin connector

T8e - 8-pin connector

T9b - 9-pin connector

T10n - 10-pin connector

T20e - 20-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

W31 - Left front entry lamp

W32 - Right front entry lamp

(A41) - Positive connection (50) (in instrument panel wiring harness)

(R56) - Entry lamp connection (in driver door wiring harness)

* - Only for vehicles with a manual transmission

*2 - Only for vehicles with DSG transmission 02E

*3 - Only for vehicles with tiptronic

*4 - only for vehicles with engine code CBFA
