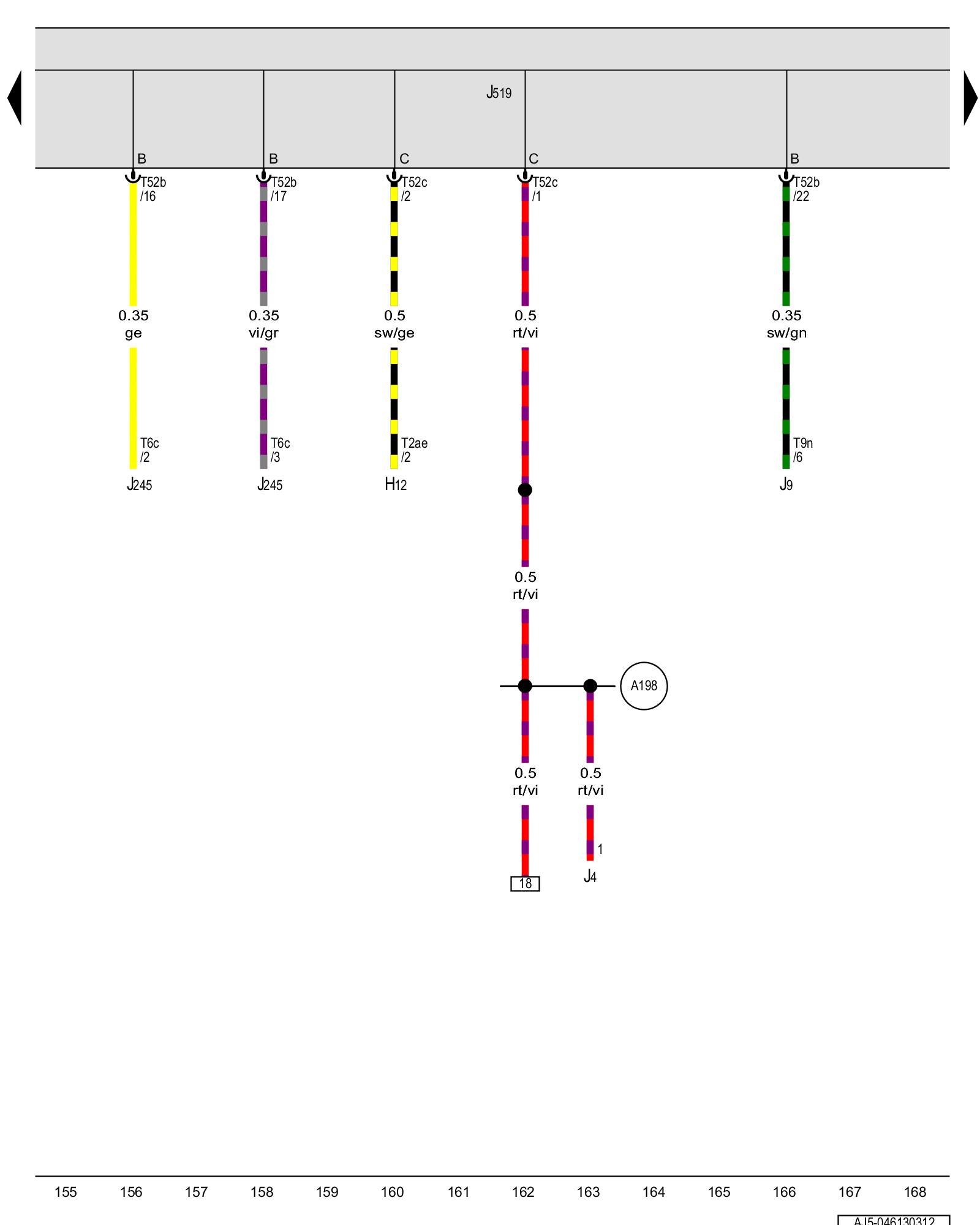

Diagram 46/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Alarm horn, Dual tone horn relay, Rear window defogger relay, Power sunroof control module, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

H12 - Alarm horn Central Locking / Anti-Theft System Overview

J4 - Dual tone horn relay Locations

J9 - Rear window defogger relay Locations

J245 - Power sunroof control module Sunroof w/ Glass Panel Assembly Overview

J519 - Vehicle electrical system control module Locations

T2ae - Double connector

T6c - 6-pin connector

T9n - 9-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(A198) - Positive connection 6 (30a) (in instrument panel wiring harness)

Previous Diagram 46/12 (Tracks 141-154)

Next Diagram 46/14 (Tracks 169-182)
