Diagram 46/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

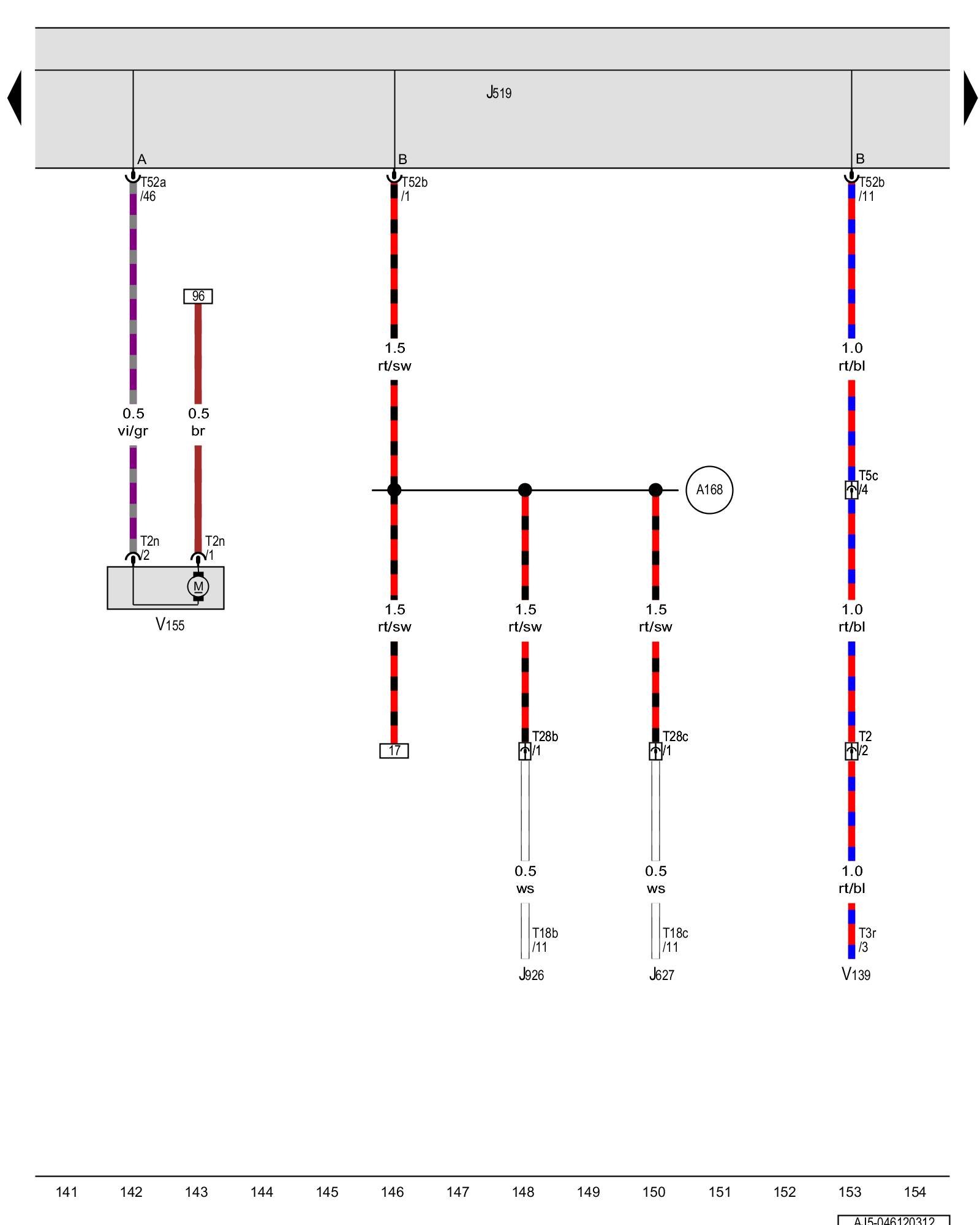

Vehicle electrical system control module, Strobe lamp control module, Driver side rear door control module, Rear lid unlock motor, Fuel filler door unlock motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations

J627 - Strobe lamp control module

J926 - Driver side rear door control module

T2 - Double connector

T2n - Double connector

T3r - 3-pin connector

T5c - 5-pin connector

T18b - 18-pin connector

T18c - 18-pin connector

T28b - 28-pin connector

T28c - 28-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

V139 - Rear lid unlock motor

V155 - Fuel filler door unlock motor Central Locking / Anti-Theft System Overview

(A168) - Positive connection 4 (30a) (in instrument panel wiring harness)

* - Adapter cable

Previous Diagram 46/11 (Tracks 127-140)

Next Diagram 46/13 (Tracks 155-168)
