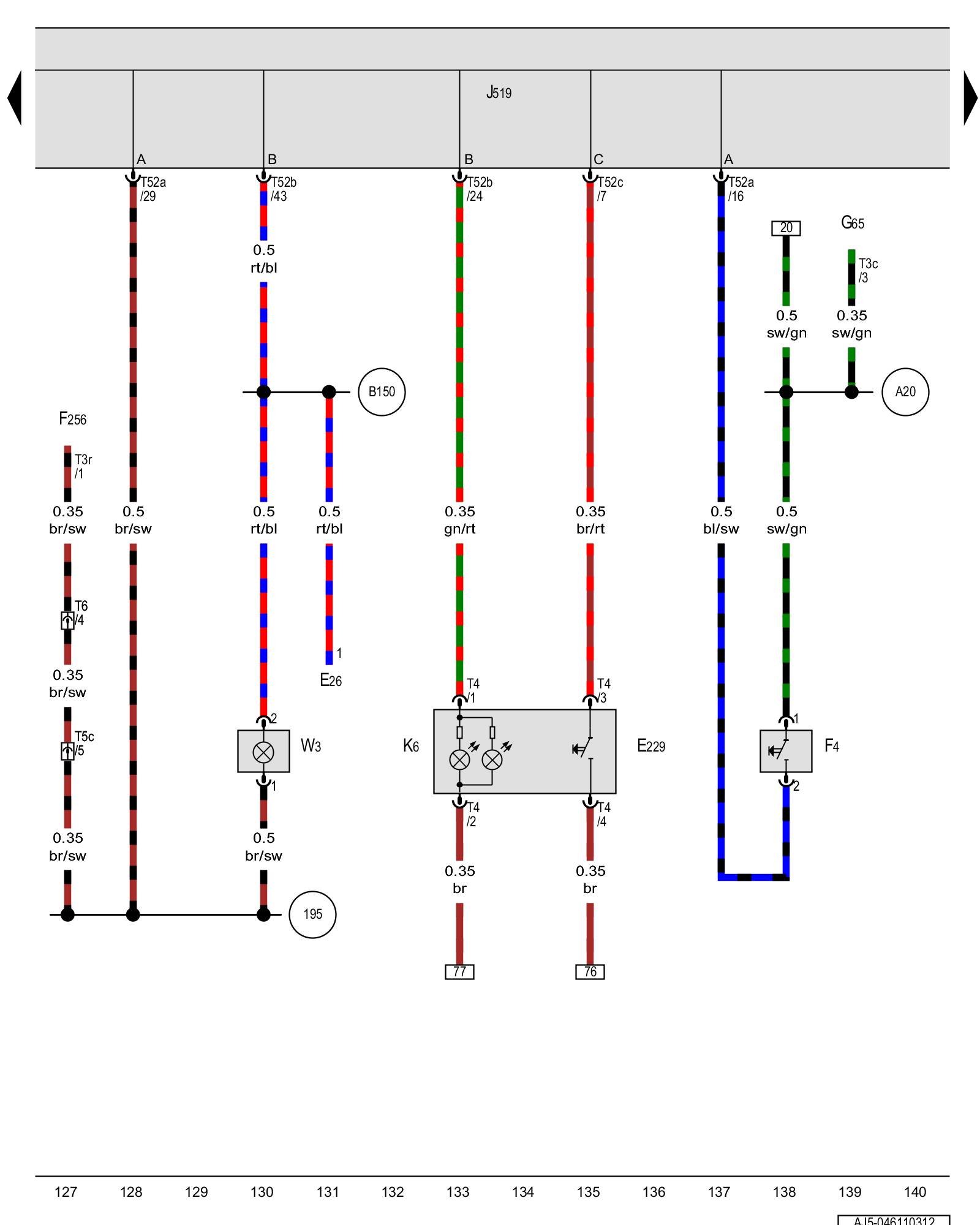

Diagram 46/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Glove compartment lamp switch, Emergency flasher switch, Back-up lamp switch, Rear lid lock unit, High pressure sensor, Vehicle electrical system control module, Luggage compartment lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E26 - Glove compartment lamp switch

E229 - Emergency flasher switch

F4 - Back-up lamp switch Locations

F256 - Rear lid lock unit Central Locking / Anti-Theft System Overview

G65 - High pressure sensor Engine Compartment A/C System [1][2]Diagrams

J519 - Vehicle electrical system control module Locations

K6 - Emergency flasher indicator lamp

T3c - 3-pin connector

T3r - 3-pin connector

T4 - 4-pin connector

T5c - 5-pin connector

T6 - 6-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

W3 - Luggage compartment lamp

(195) - Ground connection (in rear door contact switch wiring harness)

(A20) - Positive connection (15a) (in instrument panel wiring harness)

(B150) - Positive connection 2 (30a) (in interior wiring harness)
