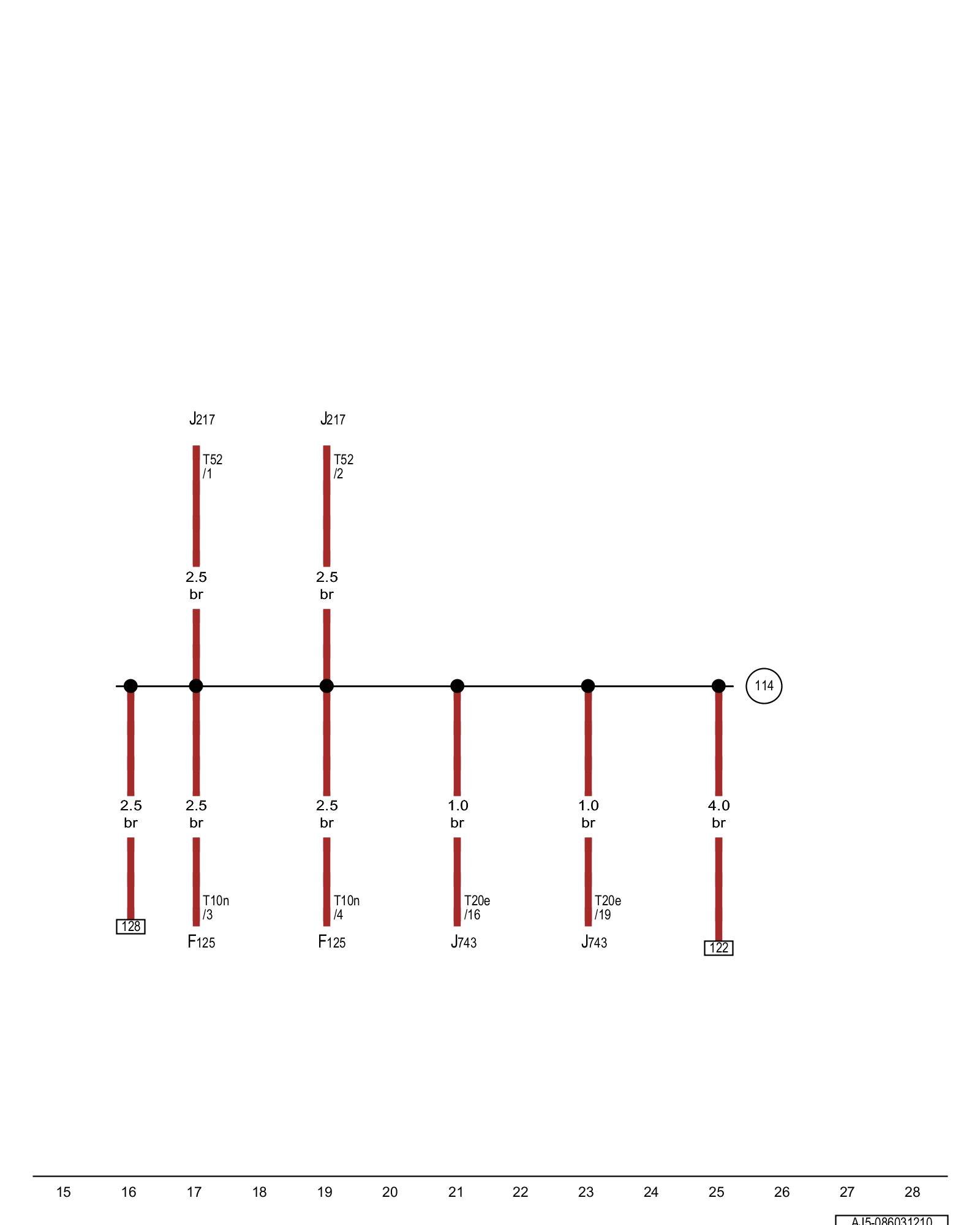

Diagram 86/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection (in automatic transmission wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F125 - Multifunction transmission range switch Locations Multifunction Transmission Range Switch -F125-

J217 - Transmission control module Locations Transmission Control Module -J217-

J743 - DSG transmission Mechatronic Locations [1][2]Automatically Shifted Manual Transmission/Transaxle

T10n - 10-pin connector

T20e - 20-pin connector

T52 - 52-pin connector

(114) - Ground connection (in automatic transmission wiring harness)
