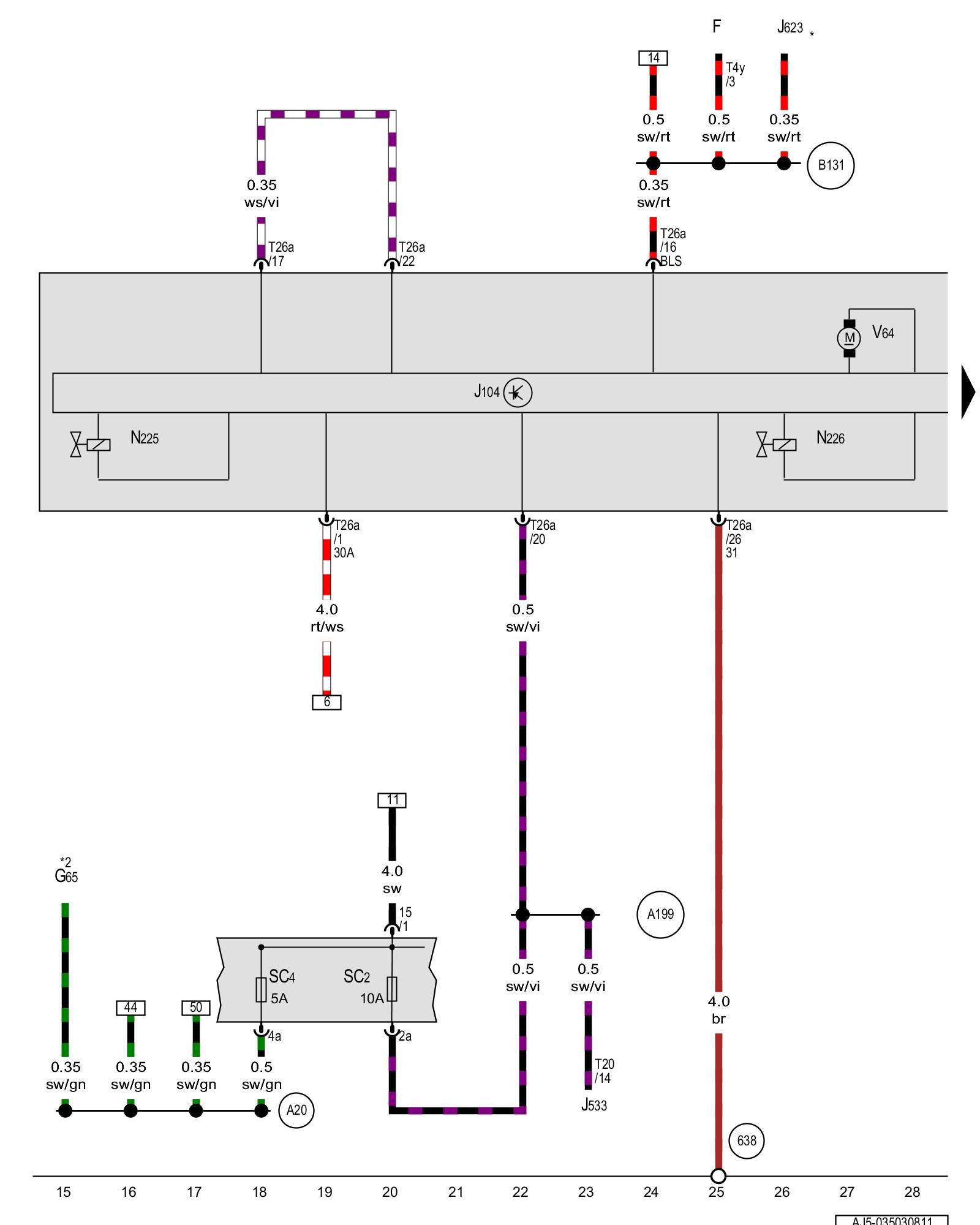

Diagram 35/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ABS control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations [1][2]Brake Light Switch

G65 - High pressure sensor Engine Compartment A/C System [1][2]Diagrams

J104 - ABS control module Locations [1][2]Diagrams

J533 - Data bus on board diagnostic interface Locations

J623 - Engine control module Locations

N225 - Driving dynamics regulation switch valve 1

N226 - Driving dynamics regulation switch valve 2

SC2 - Fuse 2 (on fuse panel C)

SC4 - Fuse 4 (on fuse panel C)

T4y - 4-pin connector

T20 - 20-pin connector

T26a - 26-pin connector

V64 - ABS hydraulic pump Locations

(638) - Ground connection on right A-pillar

(A20) - Positive connection (15a) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B131) - Connection (54) (in interior wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Refer to applicable A/C system wiring diagram

Previous Diagram 35/2 (Tracks 1-14)

Next Diagram 35/4 (Tracks 29-42)
