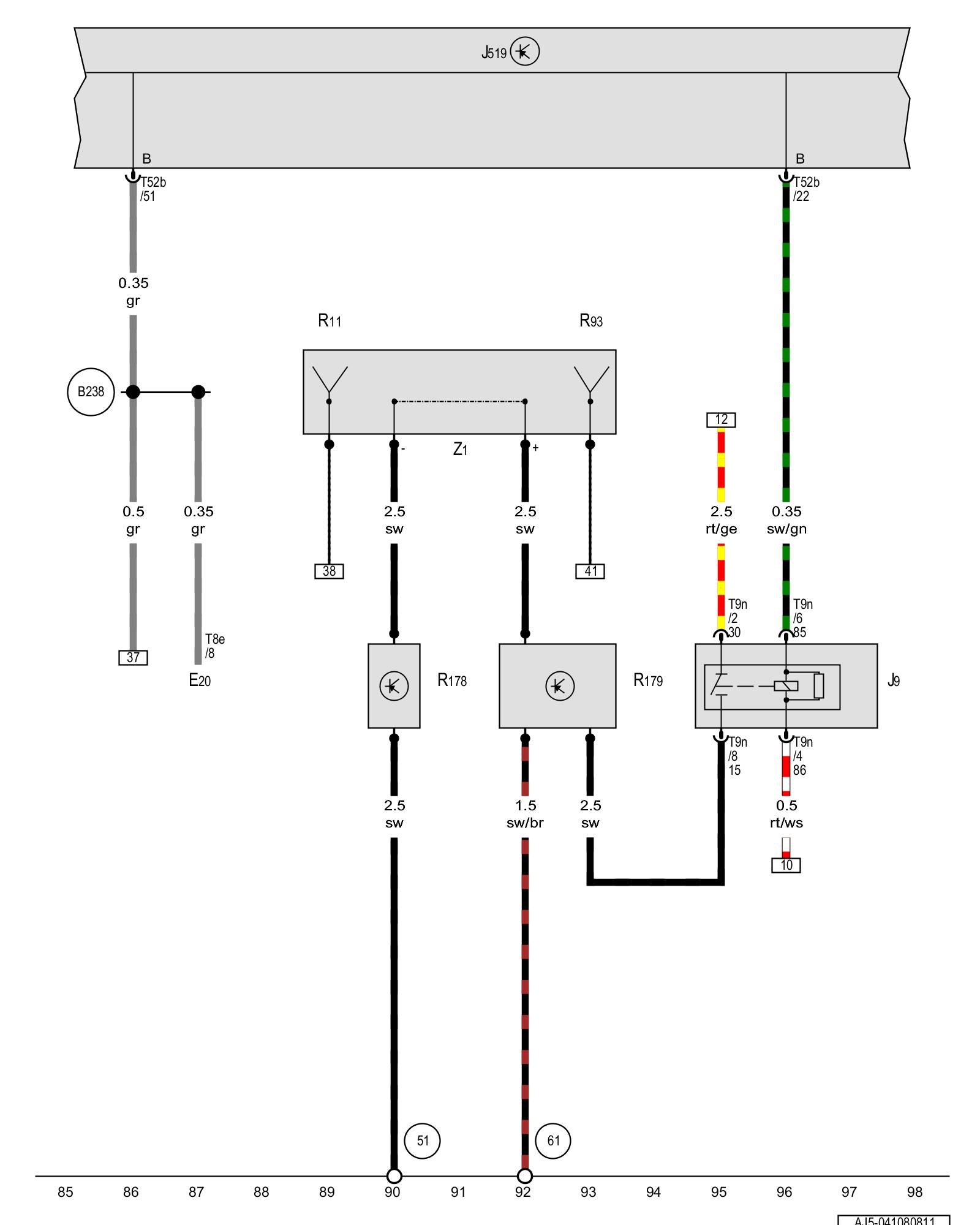

Diagram 41/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear window defogger relay, Vehicle electrical system control module, Antenna, Radio antenna 2, FM frequency filter in negative wire, Rear window defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E20 - Instrument panel and switch illumination dimmer switch

J9 - Rear window defogger relay

J519 - Vehicle electrical system control module

R11 - Antenna

R93 - Radio antenna 2 Antenna Systems Overview

R178 - FM frequency filter in negative wire

R179 - FM frequency filter in positive wire

T8e - 8-pin connector

T9n - 9-pin connector

T52b - 52-pin connector

Z1 - Rear window defogger

(51) - Ground connection in luggage compartment, right

(61) - Ground connection on left C-pillar

(B238) - Positive connection 2 (58b) (in interior wiring harness)
