Diagram 41/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

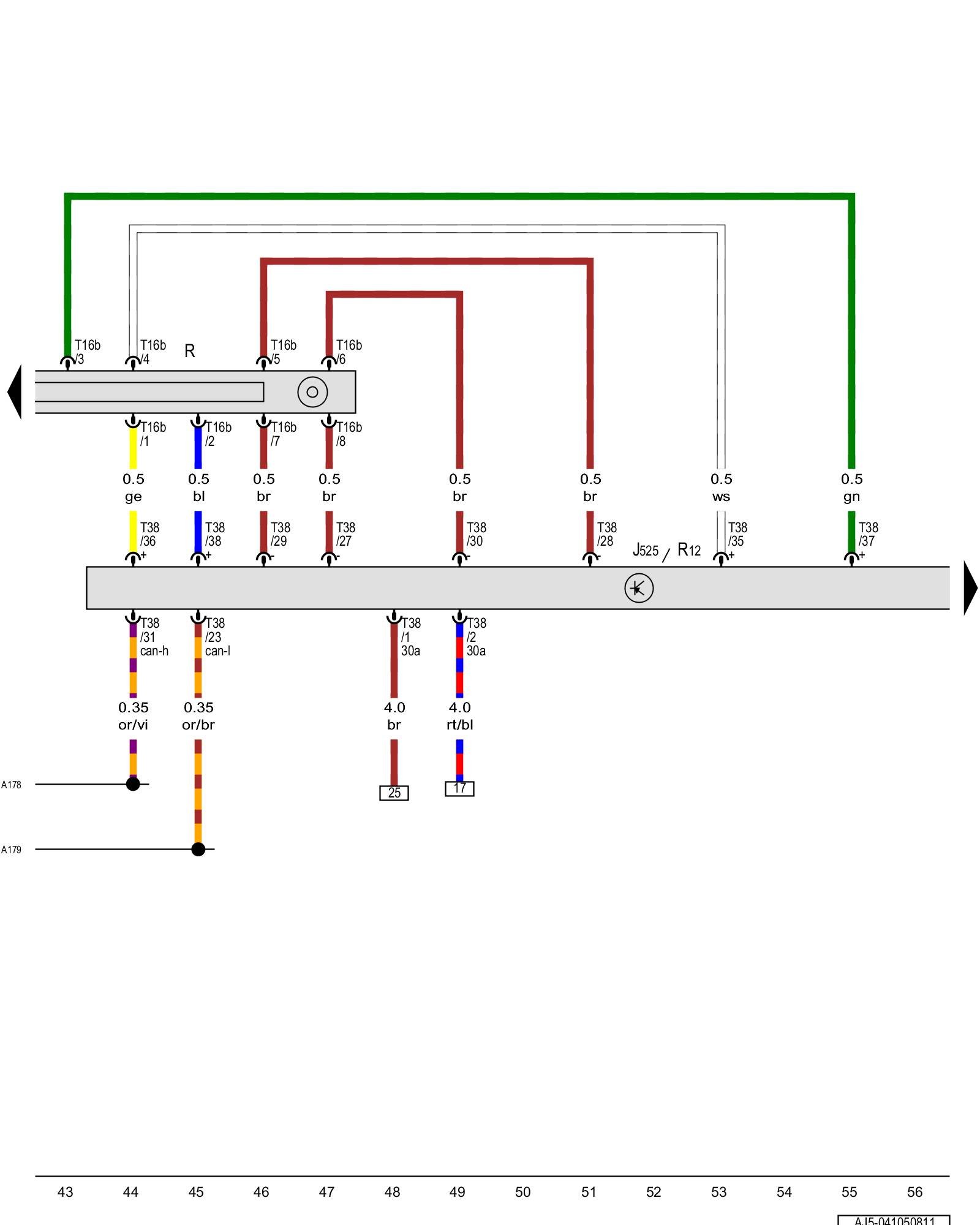

Digital sound system control module, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module

R - Radio

R12 - Amplifier Premium 8 Sound System Overview

T16b - 16-pin connector

T38 - 38-pin connector

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

Previous Diagram 41/4 (Tracks 29-42)

Next Diagram 41/6 (Tracks 57-70)
