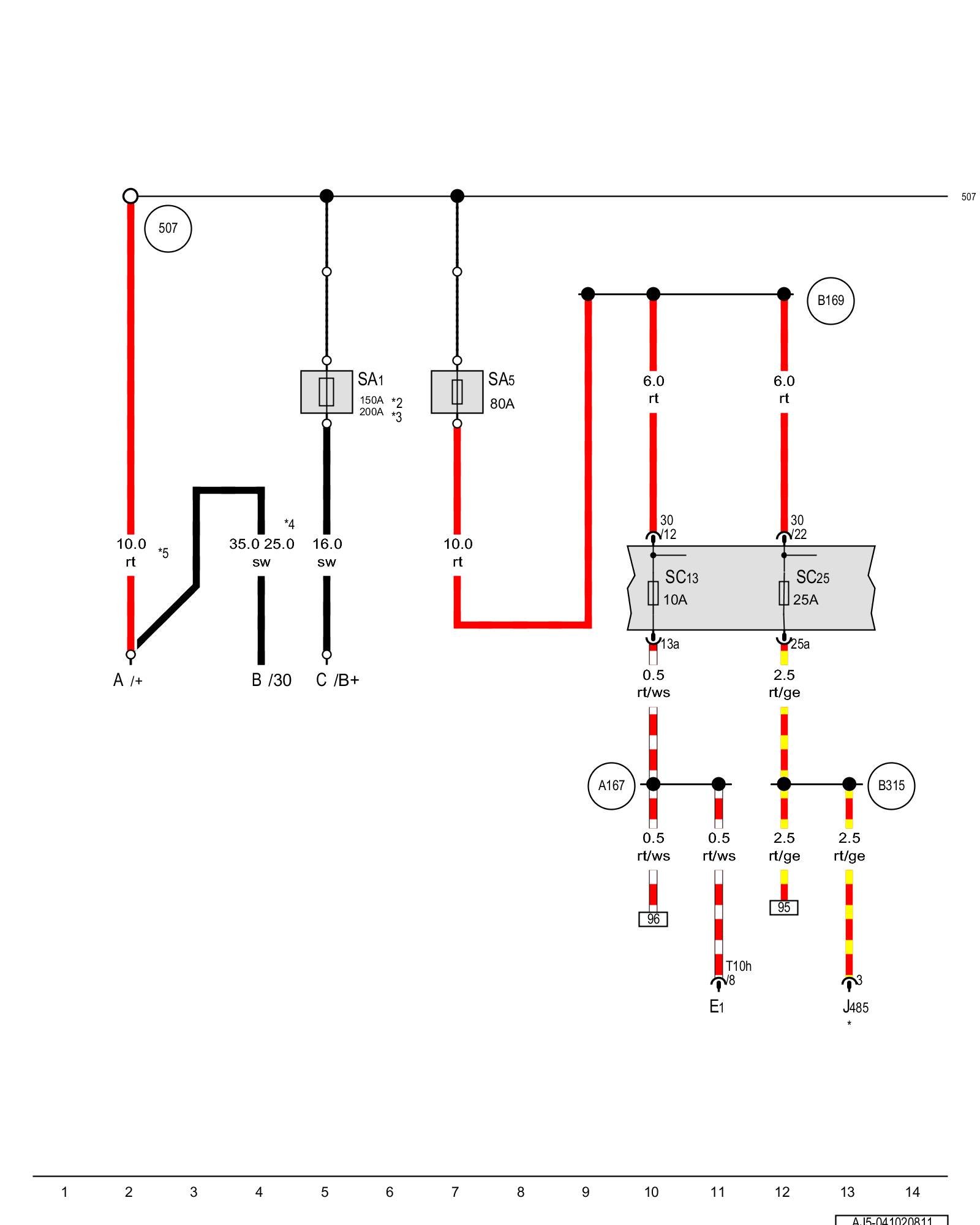

Diagram 41/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse 13 (on fuse panel C), Fuse 25 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

E1 - Light switch

J485 - Auxiliary heater operation relay

SA1 - Fuse 1 (on fuse panel A) Locations

SA5 - Fuse 5 (on fuse panel A) Locations

SC13 - Fuse 13 (on fuse panel C)

SC25 - Fuse 25 (on fuse panel C)

T10h - 10-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

(A167) - Positive connection 3 (30a) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

* - Depending on equipment

*2 - Only for vehicles with 90A/110A generator

*3 - Only for vehicles with a generator (140 A)

*4 - Diameter depends on equipment

*5 - 16,0 diameter possible

Next Diagram 41/3 (Tracks 15-28)
