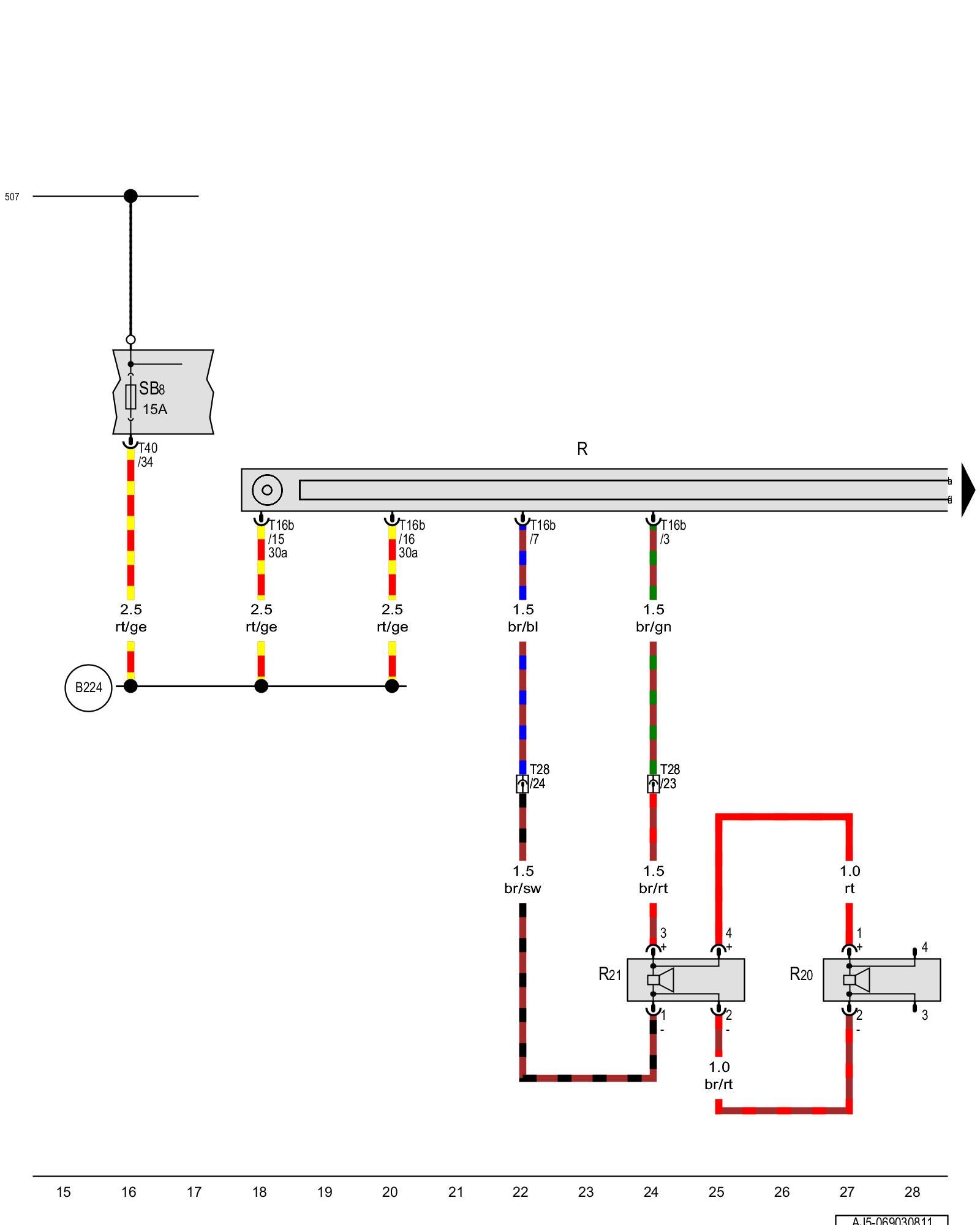

Diagram 69/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Left front treble speaker, Left front bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio

R20 - Left front treble speaker

R21 - Left front bass speaker

SB8 - Fuse 8 (on fuse panel B) Locations

T16b - 16-pin connector

T28 - 28-pin connector, on the left A-pillar

T40 - 40-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

(B224) - Radio connection 1 (in interior wiring harness)
