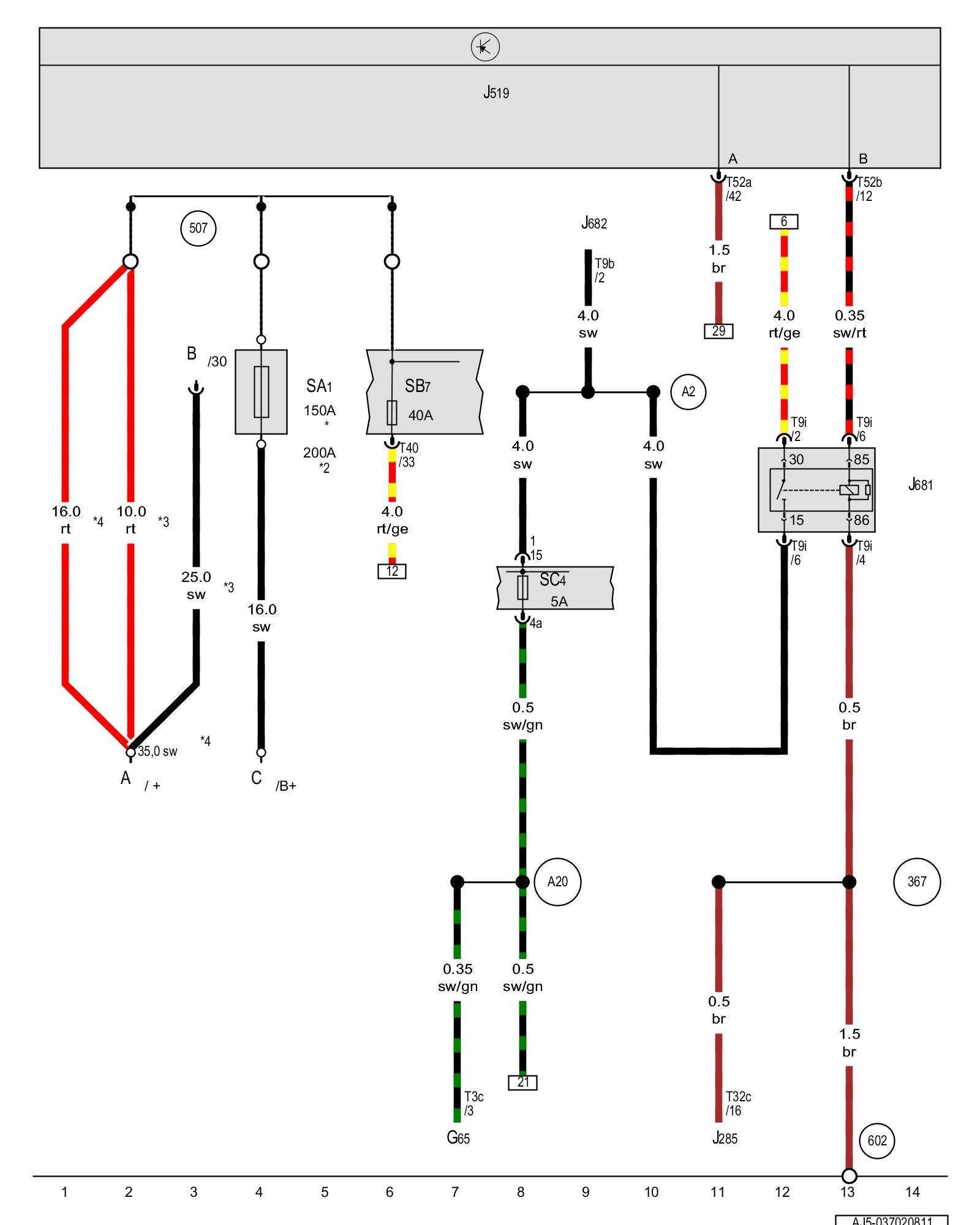

Diagram 37/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Generator, Vehicle electrical system control module, Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

G65 - High pressure sensor Engine Compartment A/C System [1][2]Diagrams

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module

J681 - Terminal 15 power supply relay 2

J682 - Terminal 50 power supply relay Locations Locations

SA1 - Fuse 1 (on fuse panel A) Locations

SC4 - Fuse 4 (on fuse panel C)

SB7 - Fuse 7 (on fuse panel B) Locations

T3c - 3-pin connector

T9b - 9-pin connector

T9i - 9-pin connector

T32c - 32-pin connector

T40 - 40-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(507) - Terminal 30 threaded connection (on battery fuse holder)

(602) - Ground connection in left front footwell

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A20) - Positive connection (15a) (in instrument panel wiring harness)

* - Only for vehicles with 90A/110A generator

*2 - Only for vehicles with a generator (140 A)

*3 - Only for vehicles with DSG transmission 0AM

*4 - Only for vehicles with a manual transmission
