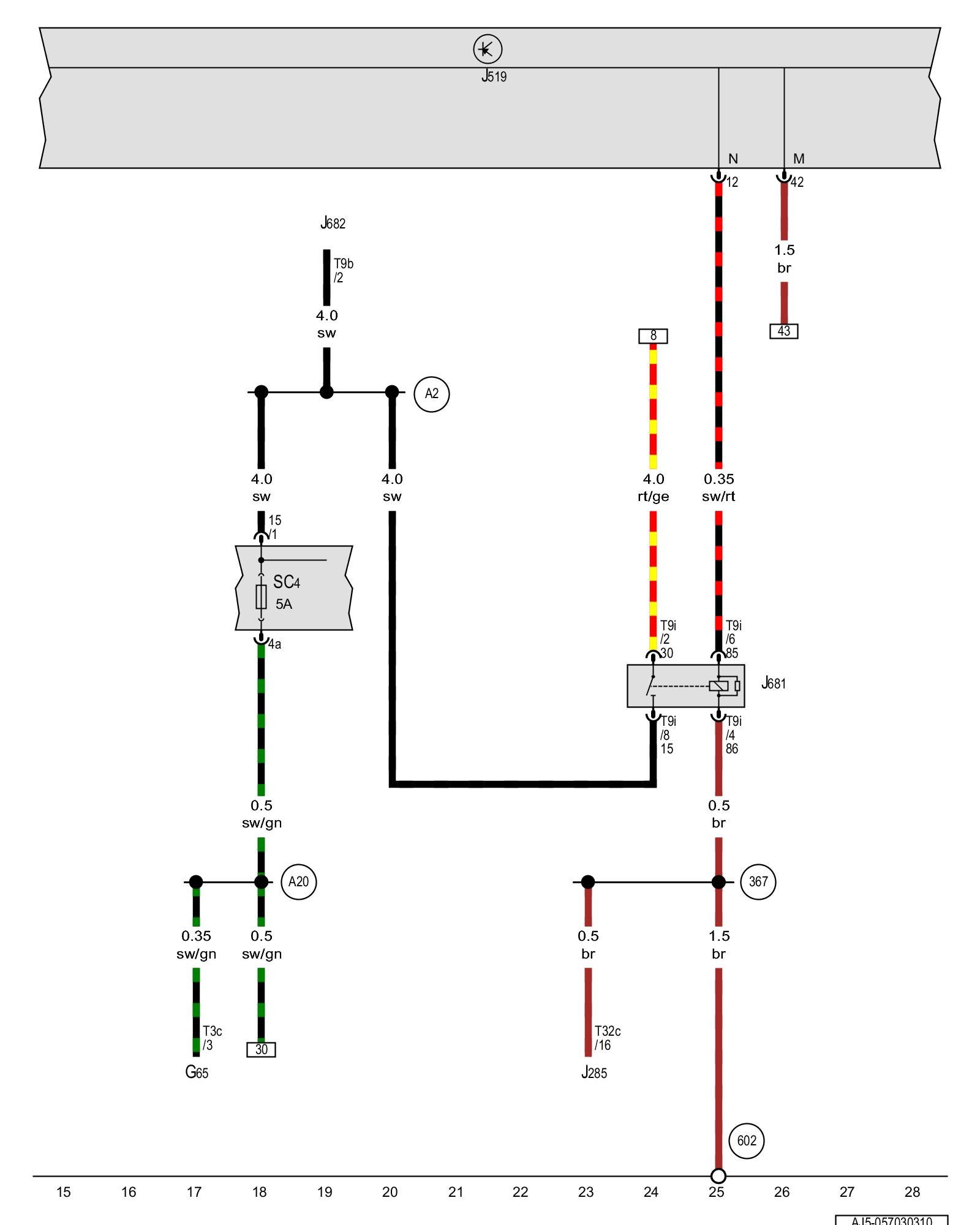

Diagram 57/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Terminal 15 power supply relay 2, Fuse 4 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G65 - High pressure sensor Engine Compartment A/C System [1][2]Diagrams

J285 - Instrument cluster control module Locations

J519 - Vehicle electrical system control module Locations

J681 - Terminal 15 power supply relay 2

J682 - Terminal 50 power supply relay Locations Locations

SC4 - Fuse 4 (on fuse panel C)

T3c - 3-pin connector

T9b - 9-pin connector

T9i - 9-pin connector

T32c - 32-pin connector

(367) - Ground connection 2 (in main wiring harness)

(602) - Ground connection in left front footwell

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A20) - Positive connection (15a) (in instrument panel wiring harness)
