Diagram 57/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Rearview camera





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

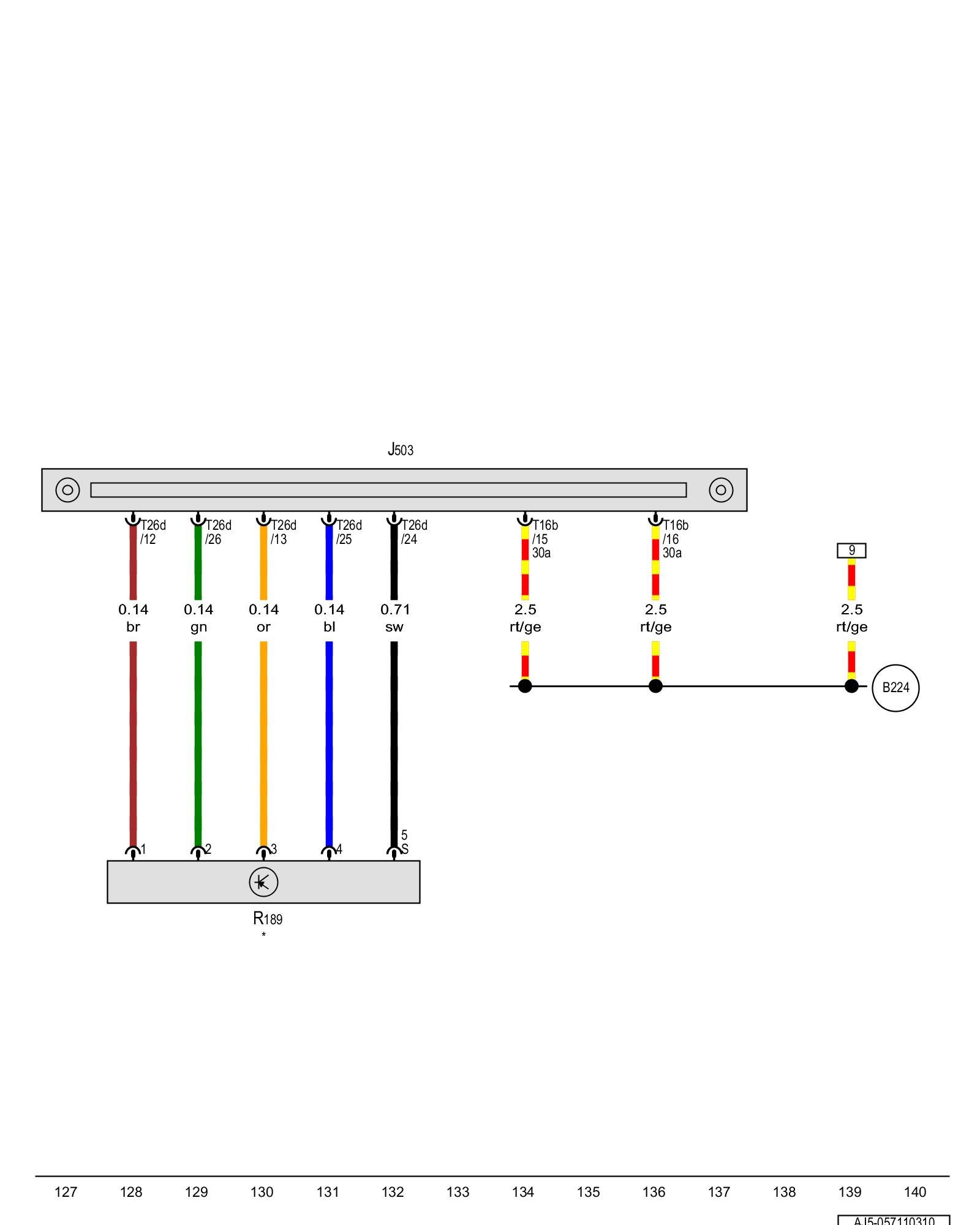

J503 - Radio/navigation display unit control module RNS 510 Radio Nav System Overview

R189 - Rearview camera [1][2]Connector Views

T16b - 16-pin connector

T26d - 26-pin connector

(B224) - Radio connection 1 (in interior wiring harness)

* - Depending on equipment

Previous Diagram 57/10 (Tracks 113-126)
