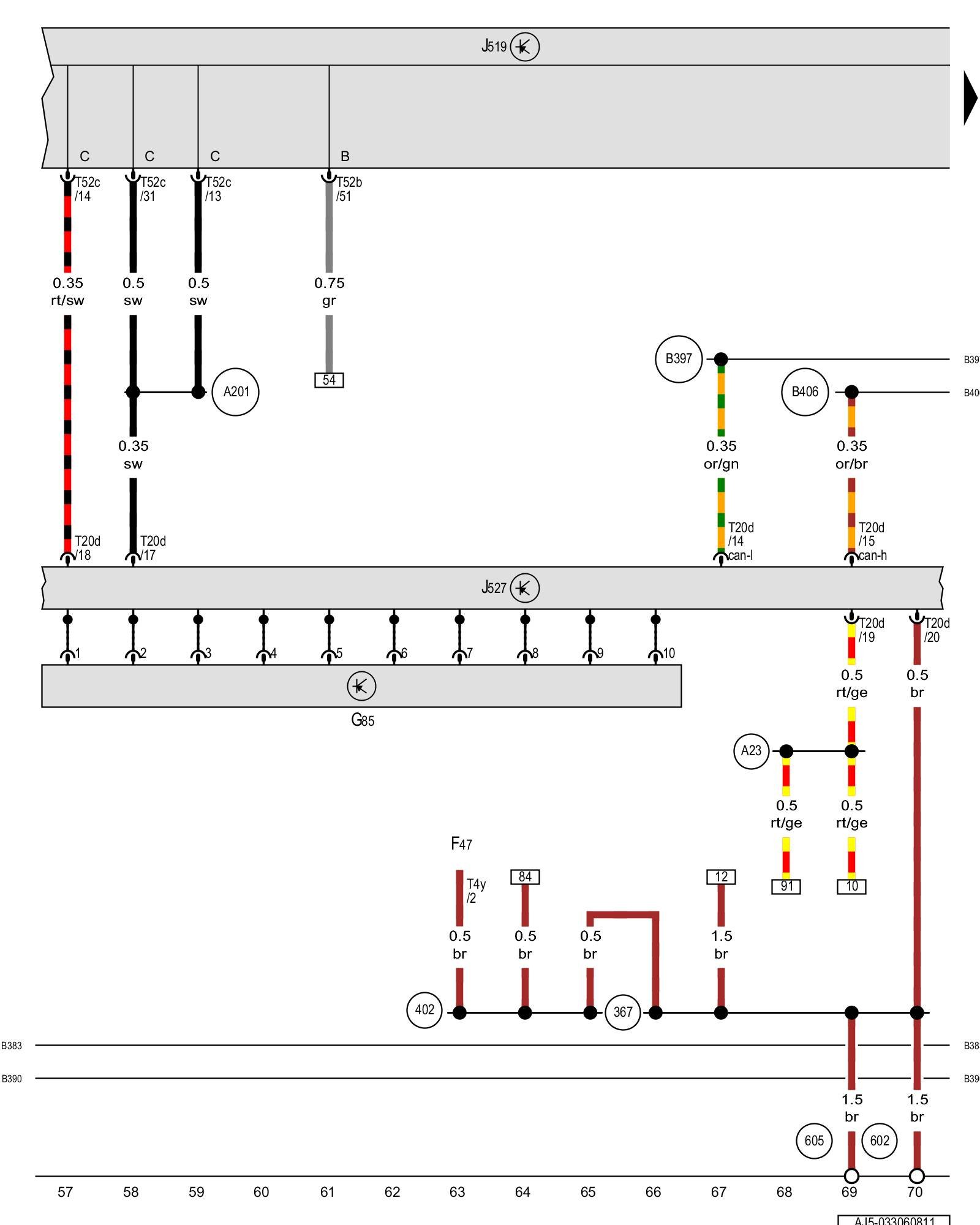

Diagram 33/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Steering angle sensor, Vehicle electrical system control module, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F47 - Brake pedal switch Locations [1][2]Brake Light Switch

G85 - Steering angle sensor Locations [1][2]Diagrams

J519 - Vehicle electrical system control module

J527 - Steering column electronics control module Locations Locations Steering Column Electronics Control Module -J527-

T4y - 4-pin connector

T20d - 20-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(402) - Interior lighting ground connection (in interior wiring harness)

(602) - Ground connection in left front footwell

(605) - Ground connection on upper steering column

(A23) - Connection (30al) (in instrument panel wiring harness)

(A201) - Positive connection 6 (15a) (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)
